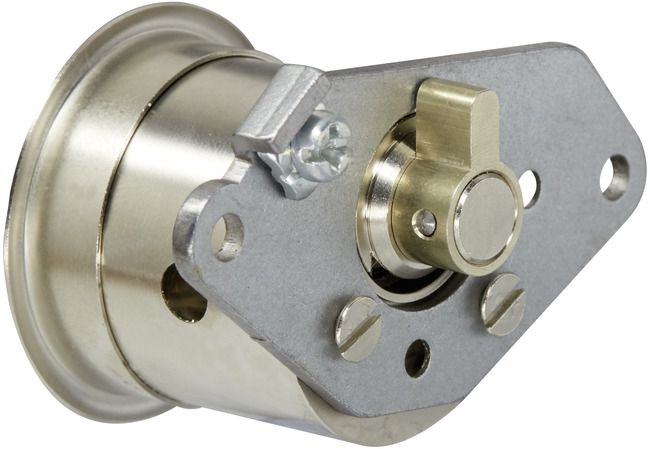

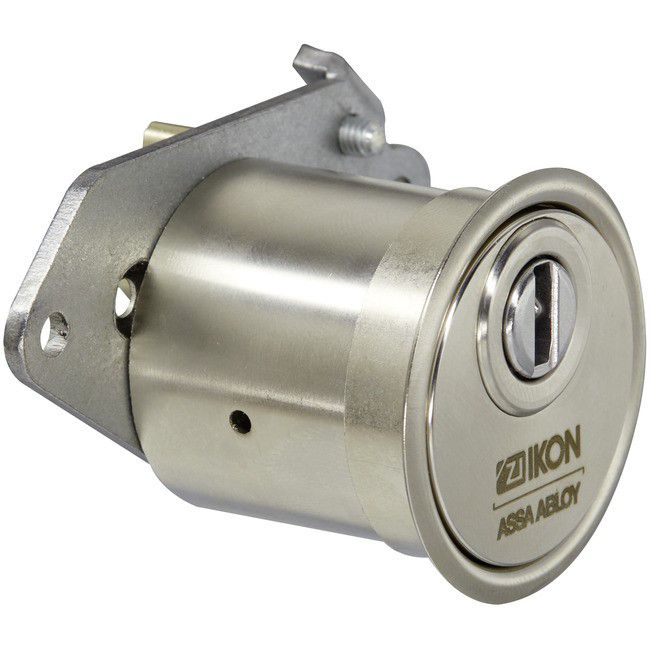

Furniture lock eCLIQ N577,AUS=3

With mounting plate e.g. for switches - without key

Product description

  • For switches
  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)
  • Tumbler elements with special wear-resistant alloy
  • Basic cylinder length L=A 29.8 mm
  • Maintenance-free for up to 200,000 cycles
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
  • Dust and rain cover available (SUR=1) IP55

Scope of delivery

  • 1 furniture cylinder
  • 1 Escutcheon (inside Ø 29 mm, outside Ø 30 mm, collar Ø 35.5 mm)
  • 1 screw-on plate
  • 2 countersunk screws
