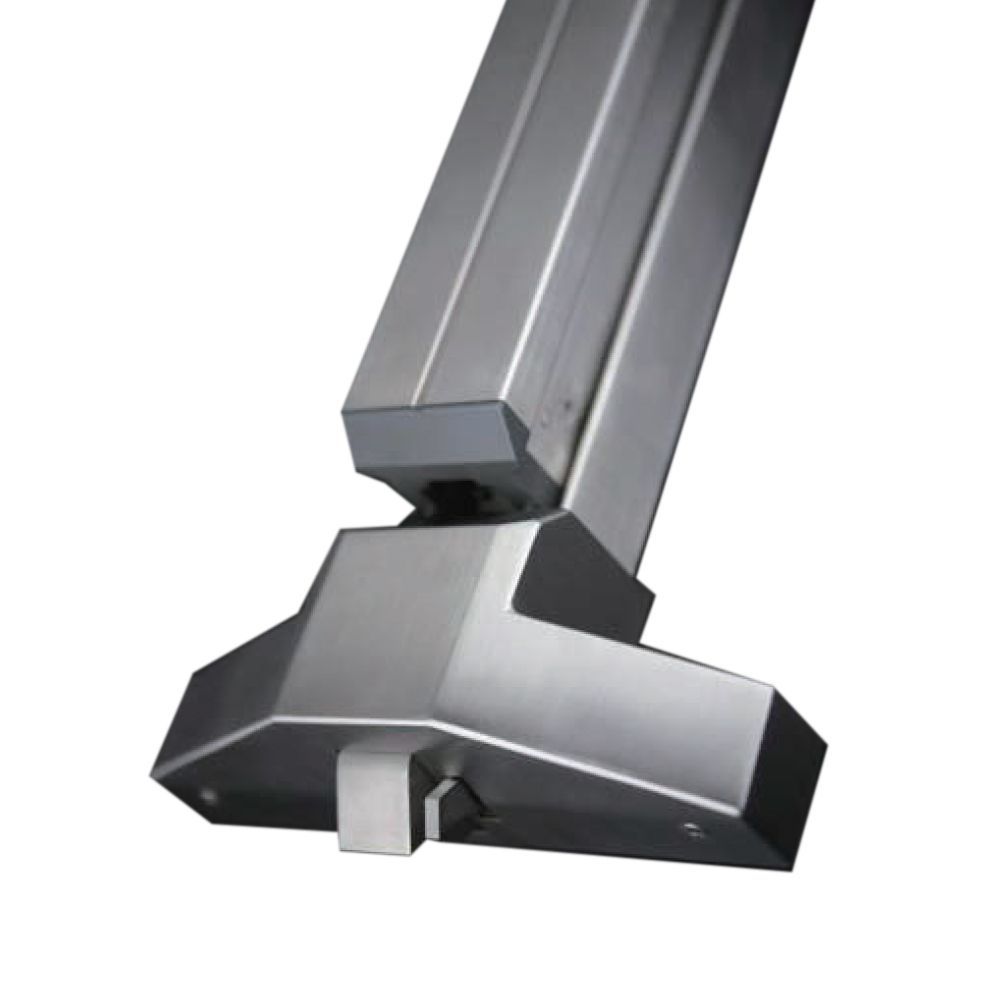

ANSI Exit Device - AA21EM

Key features:

• Surface mounted
• Slim, neat design, surface mounted
• 500,000 cycles tested
• Fire rated
• Wide range of option
• ANSI/BHMA A156.3 Grade 1
• UL Listed

Benefits:

• Ease of installation
• Superior aesthetics
• High durability
• Suitable for fire rated doors
• Provide a ready means of escape at all times by the single action of pushing on a horizontal bar fitted across the full width of a door

Technical details:

Door Suitability

• For emergency passage doors and anti-fire doors
• Suitable for single and double doors up to 1220mm wide and 2100mm in height (available up to 3000mm upon request)

Material

• Horizontal push bar made of 304 stainless steel
• Latchbolt made of sintering stainless and auxiliary bolt made of die-cast stainless steel
• Lever and trim made of 304 stainless steel
• Strike plate made of die-casting carbon steel with roller to reduce the friction of opening and closing

Latchbolt

• Made of sintering stainless steel

Finish

• 630 Satin Stainless Steel Types
• AA21M-Mortise


E lectric Function (For AA21M)

• Fail Safe (FSA)

• Fail Secure (FSE)
