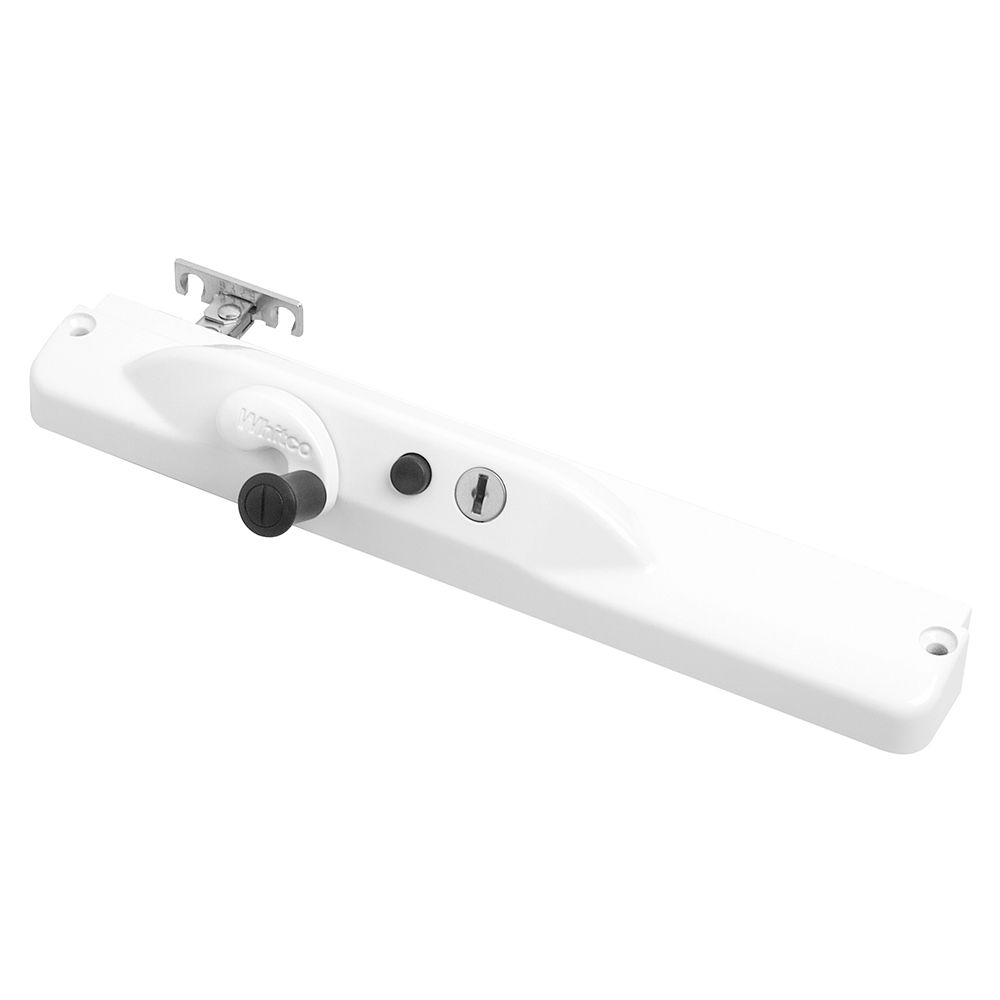

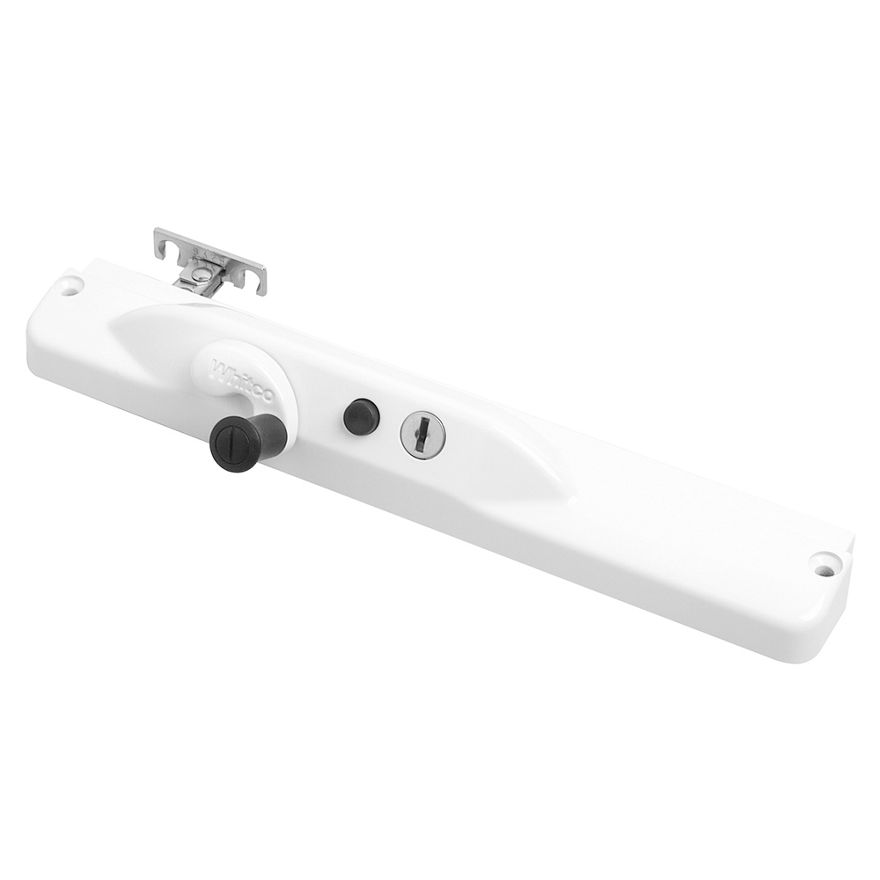

Whitco 5 Disc Lockable Chainwinder
Chain type operator for awning windows.
Features
- Suits aluminium or timber awning windows with butt or hook hinges, or non friction stays
- Smooth operation
- Through flyscreen operation
- Push button to lock, key to unlock
- Less than 1 mm between locking points
- Maximum opening 300 mm, 19 handle turns to fully open
- Can be wound closed when locked
- Hooded sash bracket prevents chain being disengaged from sash
- Zinc diecast Security Sash plate
- Standard and one way fixing screws supplied
- Retrofits existing MK7 and MK8 Whitco chainwinder models
- Foldable knob in handle reduces width preventing damage and interference with blinds
- Restricted opening versions available.
- Zinc diecast body and mechanism, Passivated Zinc steel base plate and Passivated Zinc steel chain
- Corrosion resistant version available with Stainless Steel chain and Stainless Steel base plate
- Residential pack available with printed instructions on sealed poly bag
- Exceeds the requirements of Australian window lock standard AS4145.3 - 2001 level DW2SW2K1
- Restricted opening version can satisfy pool regulation requirements
5 Disc Lockable Chainwinder
