ASSA ABLOY DS6070R Inflatable Dock Shelter Rollo

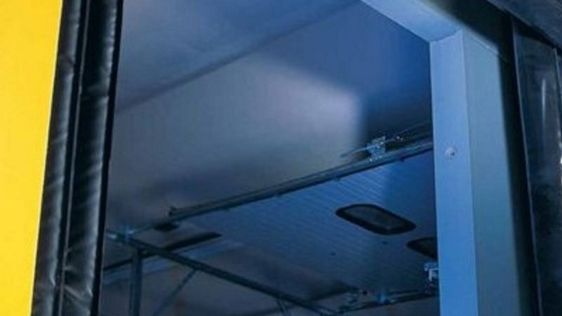

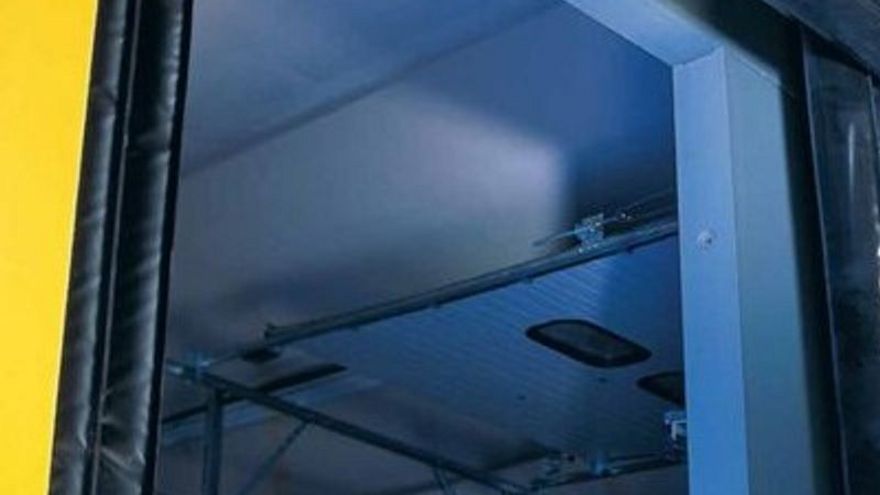

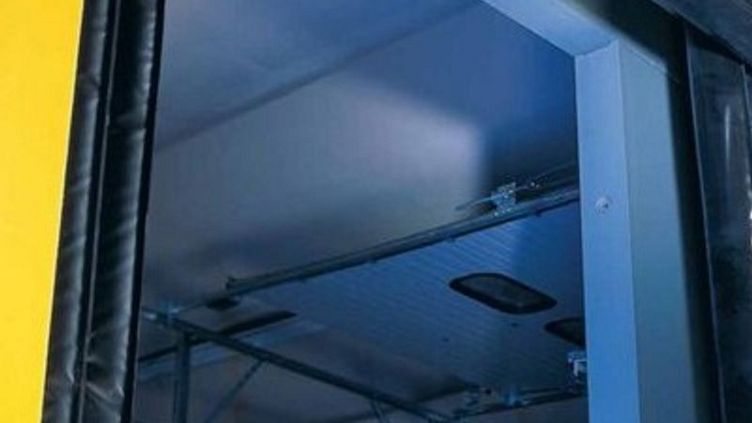

A roller-top seal insulates a docked vehicle—perfect when loading or unloading food and other goods sensitive to temperature and weather changes. Adaptable to a span of different vehicle heights, this works as part of a larger dock shelter, inflating and sealing around the body of a truck to give protection against conditions that can lead to food being spoiled, within a temperature range of -30°C to +60°C.

ASSA ABLOY (formerly Crawford) mechanical-curtain dock shelters

1 of 3

Take shelter

An inflatable dock shelter gives you full weather protection, as well as temperature control when moving goods that can easily perish. And when not being used, the shelter can be retracted at the sides so any vehicle has the full width of the loading bay to back in to. You’ll also be able to rely on stable collision protectors to keep it safe from damage.

Nominal height: 4055, 4355, 4555 mm
Nominal free height: 3600, 3900, 4100 mm
Nominal width: 3600 mm
Nominal depth: 770 mm
Top bag extension: 2200 mm
Side bag extension: 650 mm
Walls insulated panel: 42 mm

Roof white RAL 9016
Fabric quality: PVC coated polyester
- Top curtain: 650 g/m2, thickness 0,6 mm
- Side bag rear: 600 g/m2, thickness 0,5 mm
- Side bag front: 2500 g/m2, thickness 2 mm
- Option wear shield: 3400 g/m2, thickness 3 mm
Fan: 230 V, 1-phase, 50 Hz, 250 Wnoise level: 65 dBA in working position
Operating: Switch control included
Other controls available as option
Temperature range: -30°C to +60°C
