ASSA ABLOY DL6120T Teledock

No matter how complex the loading situation, this hydraulic telescopic-lip dock leveler is the solution. Built for precise positioning and optimal load utilization, the movable lip offers a larger contact area between the vehicle bed and the leveler. And it’s as easy to use as it is to maintain.

ASSA ABLOY DL6120T (formerly Crawford) Teledock

Bump-free transitions

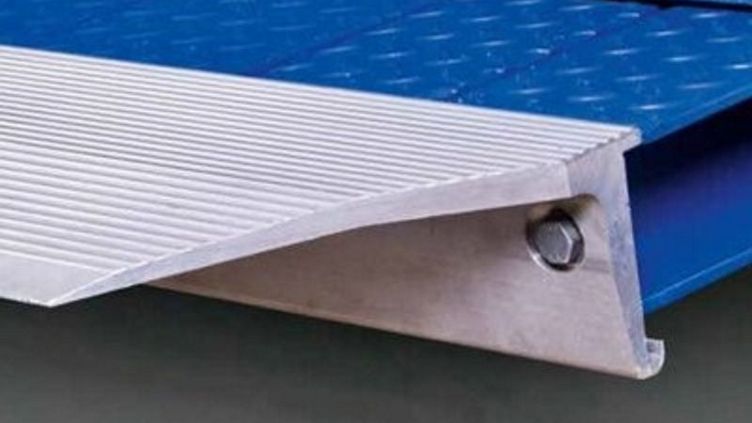

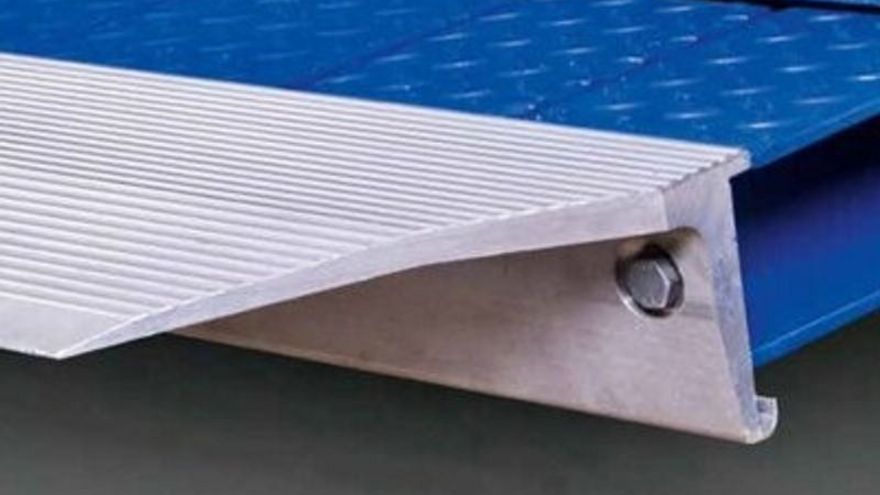

The optional ergonomic lip irons out any bumps between the platform and the vehicle or trailer bed. Which makes the DL6120T ideal for use with electrical pallet trucks without spring bumpers.

Normal length: 2000, 2500, 3000, 3500, 4000, 4500 mm
Normal width: 1750, 2000, 2200, 2250 mm
Load capacity: 60 kN (6 tonnes)
Vertical working range: Rise above dock up to 660mm, Fall below dock down to 440mm
Platform tear-plate thickness: 8/10mm
Max point load leveler platform: 6,5 N/mm² (8 mm tear plate)

Lip type and length: telescopic, 500/1000 mm ergonomic lip, 345 mm
Lip material: steel or aluminium
Lip option: tapered lip / Retracting tongues
Control unit protection class: IP 54
Temperature range hydraulic oil: -20°C - +60°C
European standard: EN1398 dock levellers
