    ASSA ABLOY DE6290TL Truck Lock

    • Distribution and logistics
    • ASSA ABLOY

    Safely and easily connect a trailer to a building with the ASSA ABLOY DE6090TL truck lock system

    The ASSA ABLOY DE6090TL truck lock is a manual trailer restraint system that helps prevent accidents and injuries at the loading bay. During the loading operation there is a risk that the trailer can roll away unintentionally from the dock due to the impact of the fork lift or truck traffic, a problem known as "vehicle creep".

    The ASSA ABLOY DE6090TL truck lock is the ideal solution to counter this risk. Restraint of the trailer can be achieved from the inside of the loadhouse without any equipment being installed in the yard. With this solution there are no obstacles in the yard which minimizes the risk of damage and injuries. Life-endangering situations with people outside activating conventional wheel chocks or other devices are eliminated.

    Downloads
    ASSA ABLOY truck lock
    ASSA ABLOY truck lock

    1 of 3

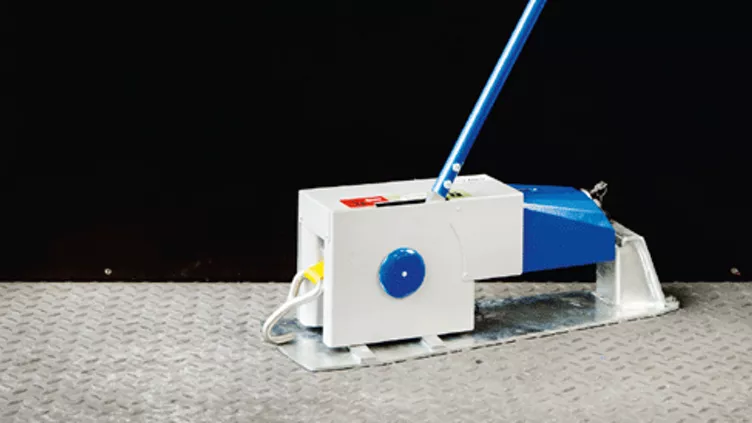

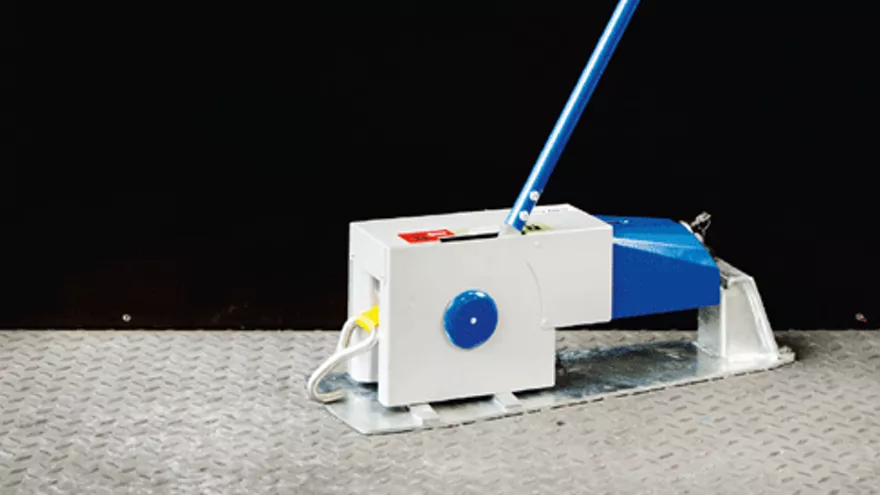

    ASSA ABLOY DE6090TL truck lock system

    • Product ID: DE6290TL
    • Base plate: galvanized steel
    • Cover back part: painted blue RAL 5010
    • Cover front part and roller house: painted gray RAL 9006
    • Edge protection: stainless steel
    • Breaking point (max. restraining point): 35kN
    • Warning signal: siren sounds and flashingred signal at 12kN tensioning force
    • Siren; 105 dBA
    • Power supply: 24 V DC, 100mA
    • Electronic feature: interlocking of the dock leveler control box

    Downloads

    • Assa Abloy DE6290TL Truck lock(PDF, 420 KB)
    • Product_datasheet_ASSA_ABLOY_DE6290TL_en.book(PDF, 1 MB)
