Henderson Sterling 3600 and 8000

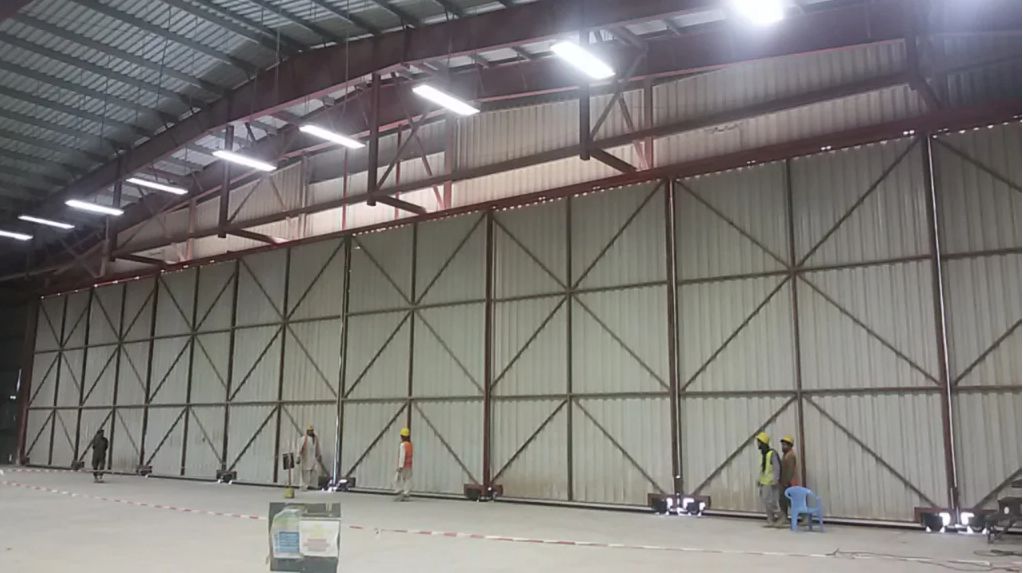

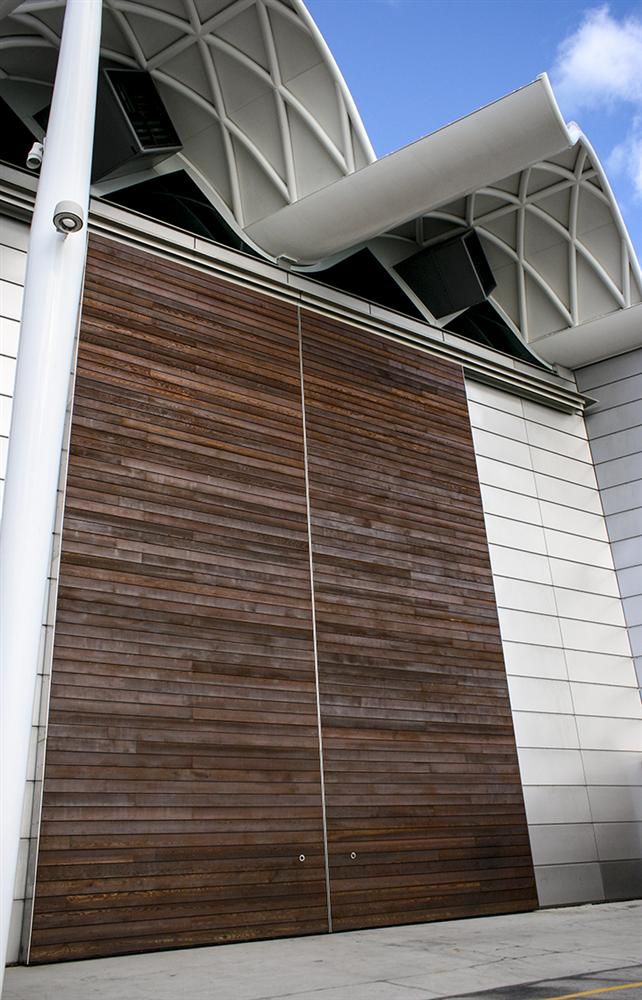

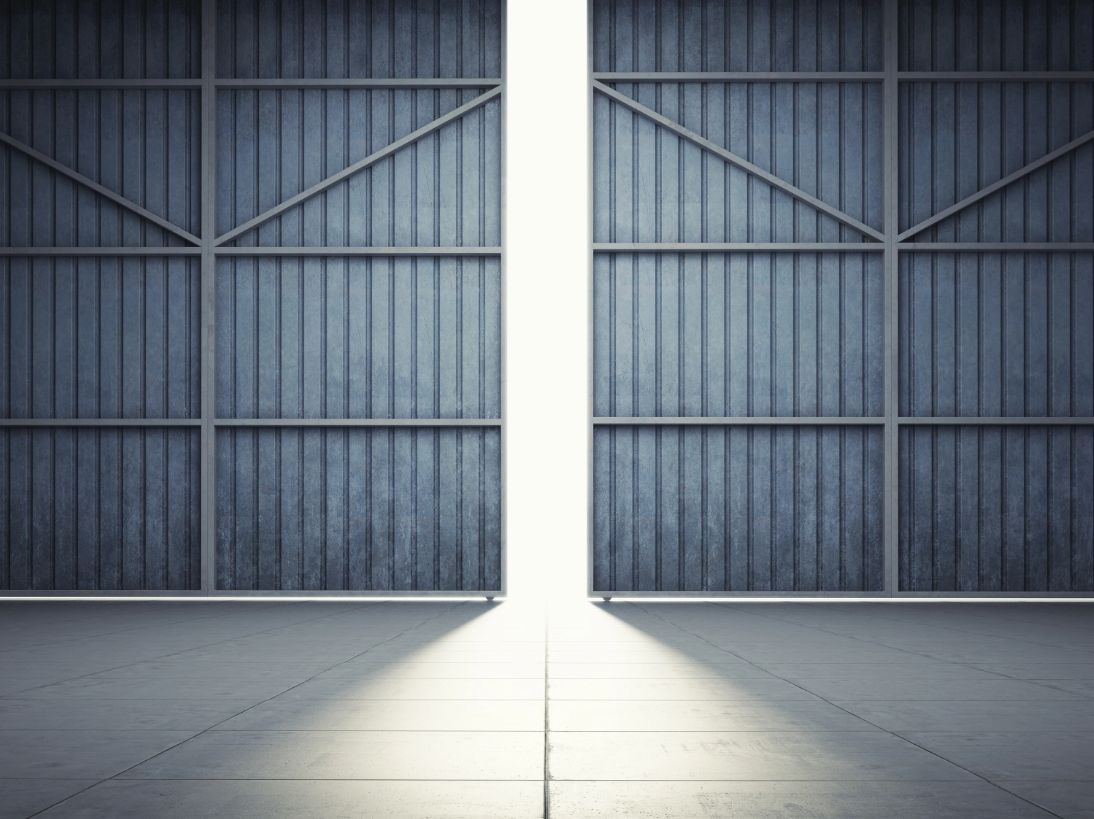

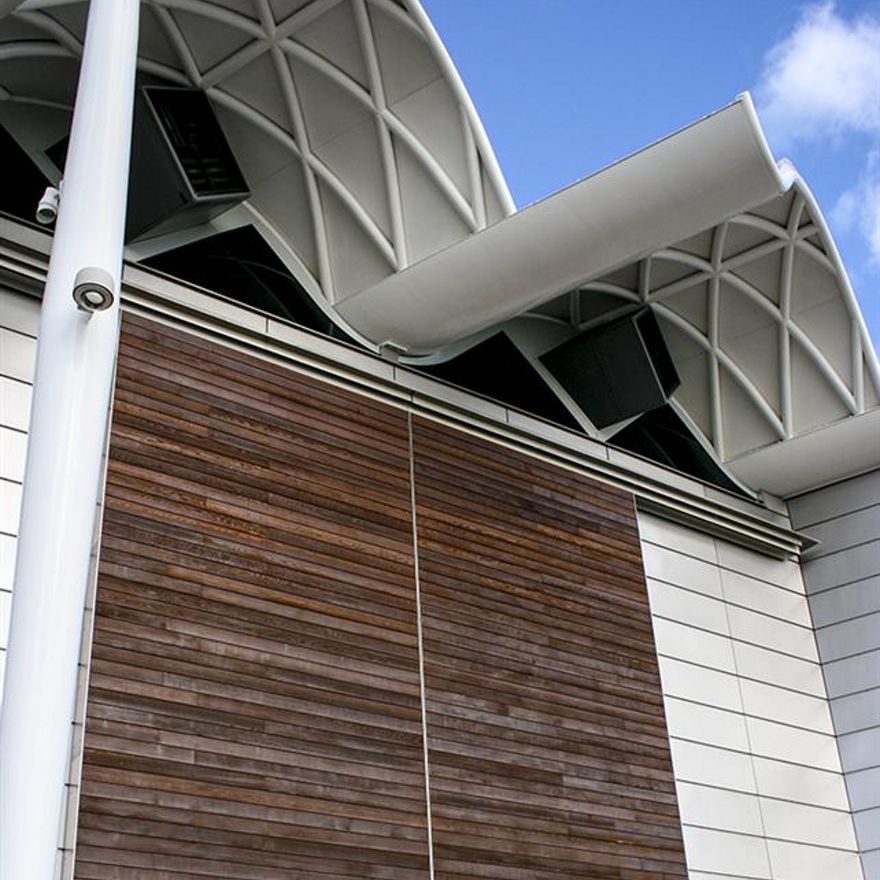

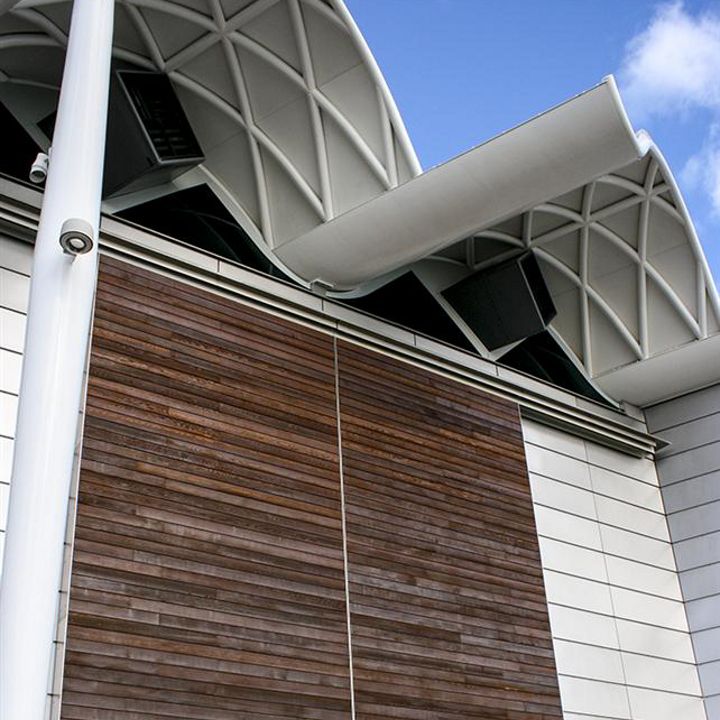

The Sterling range of bottom rolling systems is ideal for heavy commercial and industrial applications such as warehouses, agricultural buildings and aircraft hangars. The product is particularly suitable where the supporting structure or lintel is insufficient for the weight of the door or headroom is limited. Five systems are available in total, catering for wooden doors weighing up to a maximum of 2000kg and metal doors up to a maximum weight of 8000kg. The product is suitable for single or multiple lines of track and the top guide channel may be soffit fixed or face fixed. If this product is to be installed in areas exposed to extreme heat - we recommend a maximum temperature of 70°C.

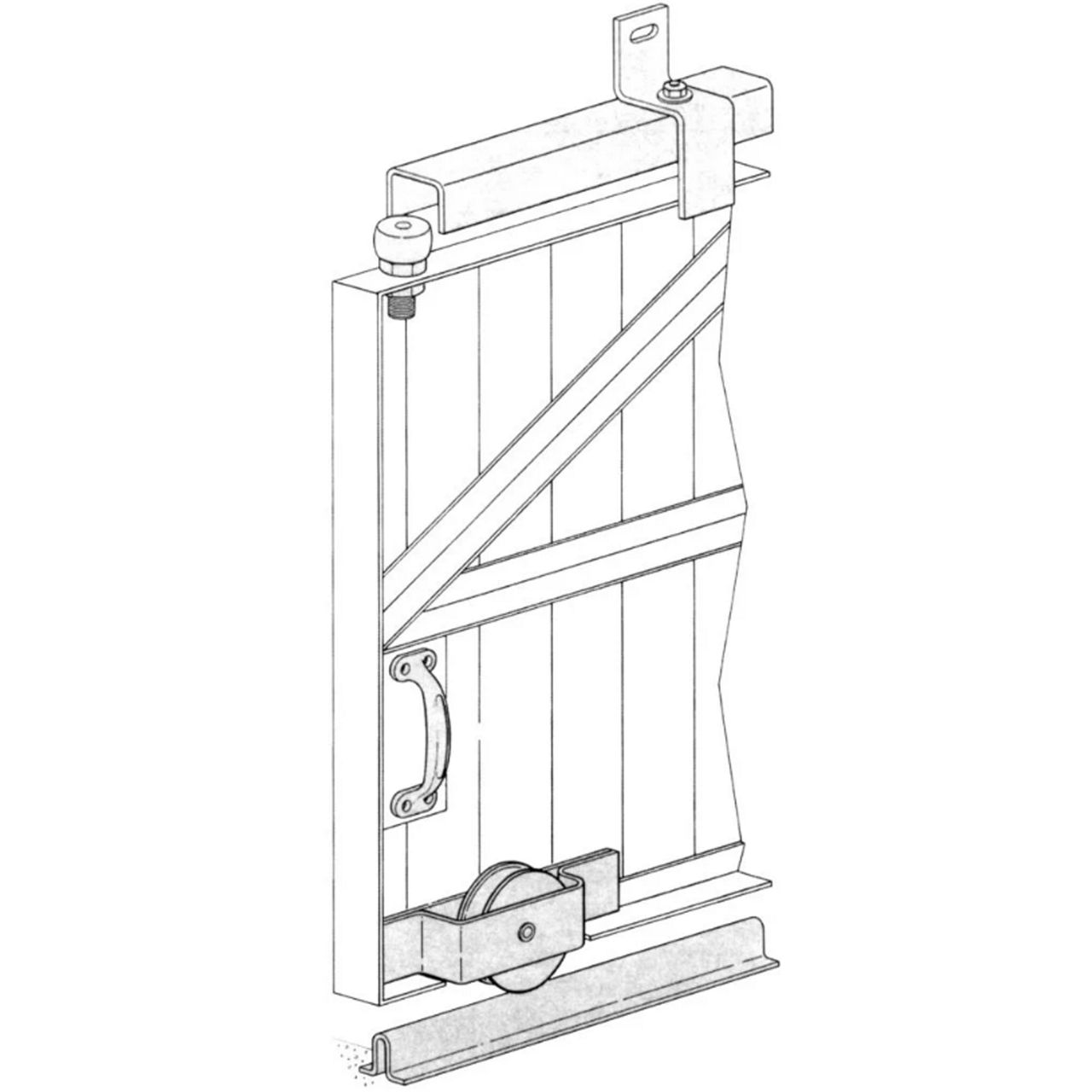

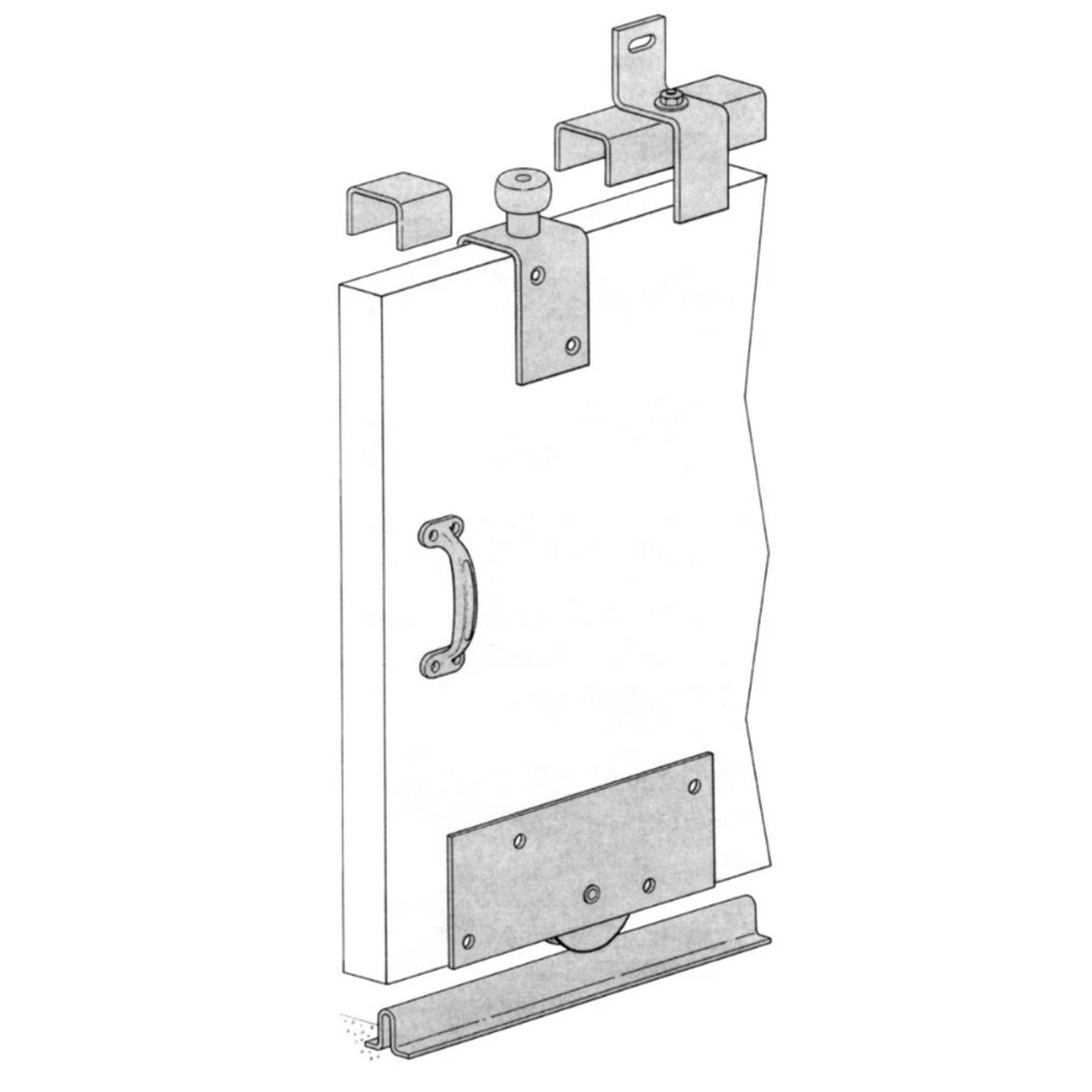

For bottom rolling timber or metal doors. Max 3600kg or 8000kg each leaf.

APPLICATION

• For very high and heavy straight sliding industrial doors.

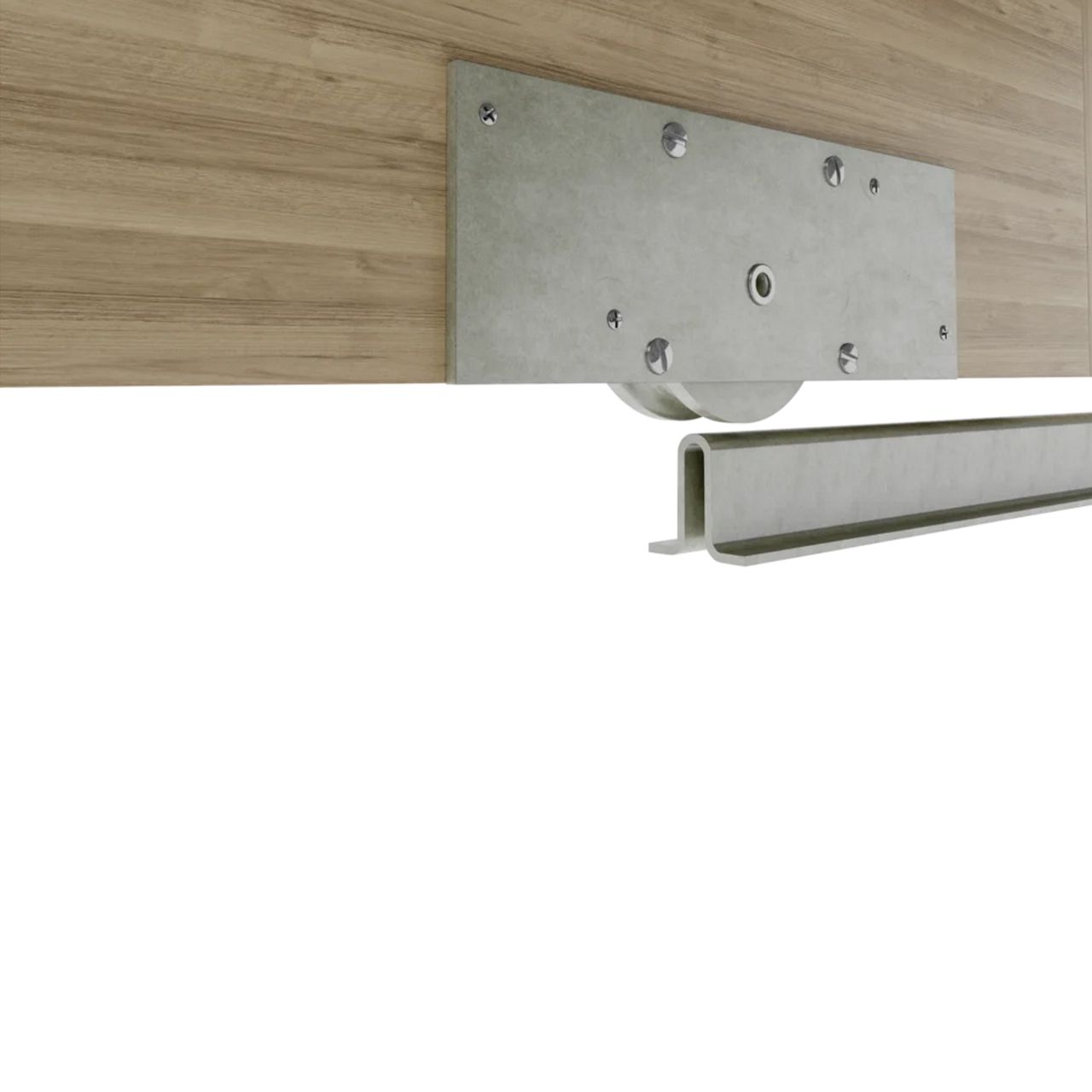

• The bottom rollers are designed for each individual application and are dependent on the thickness of the door.

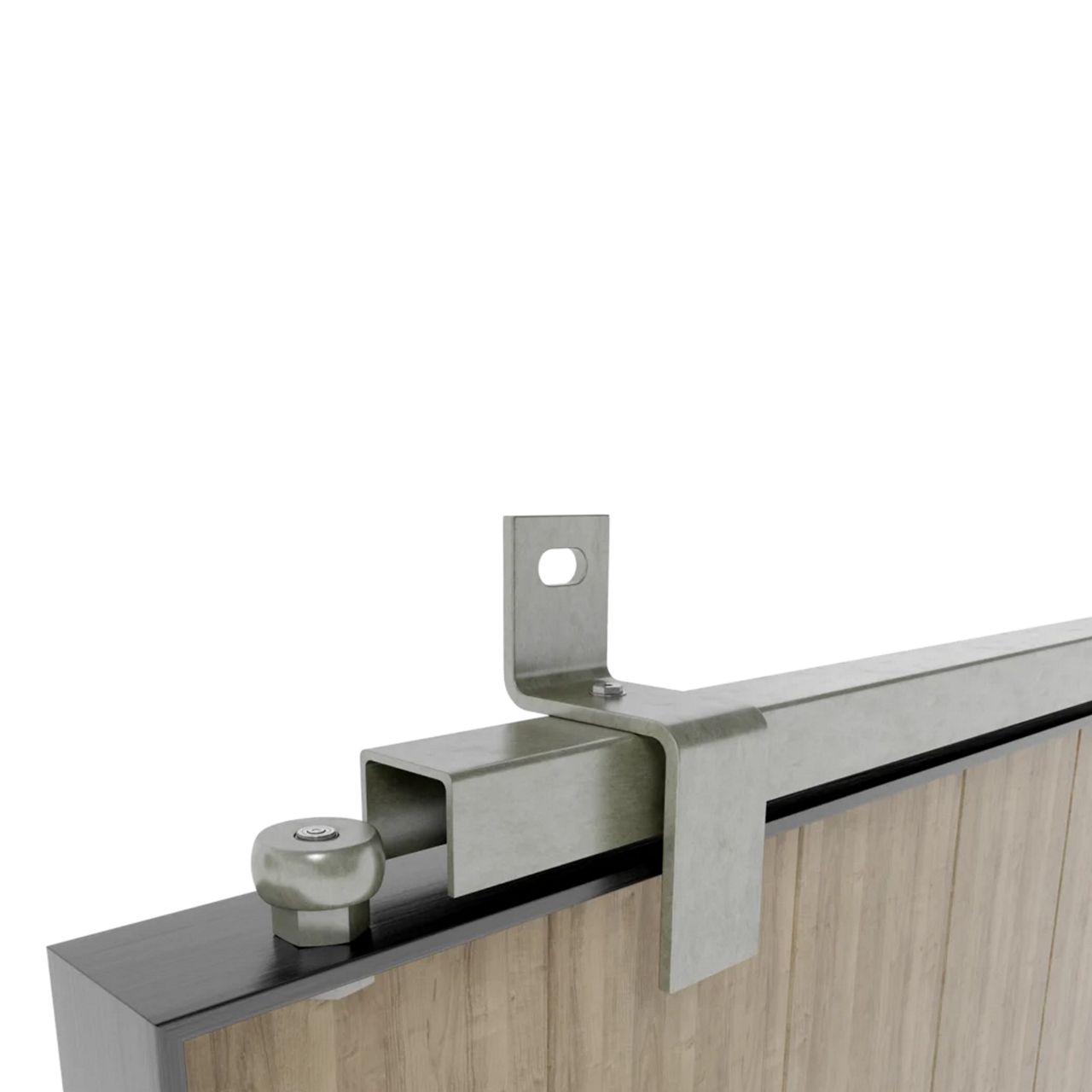

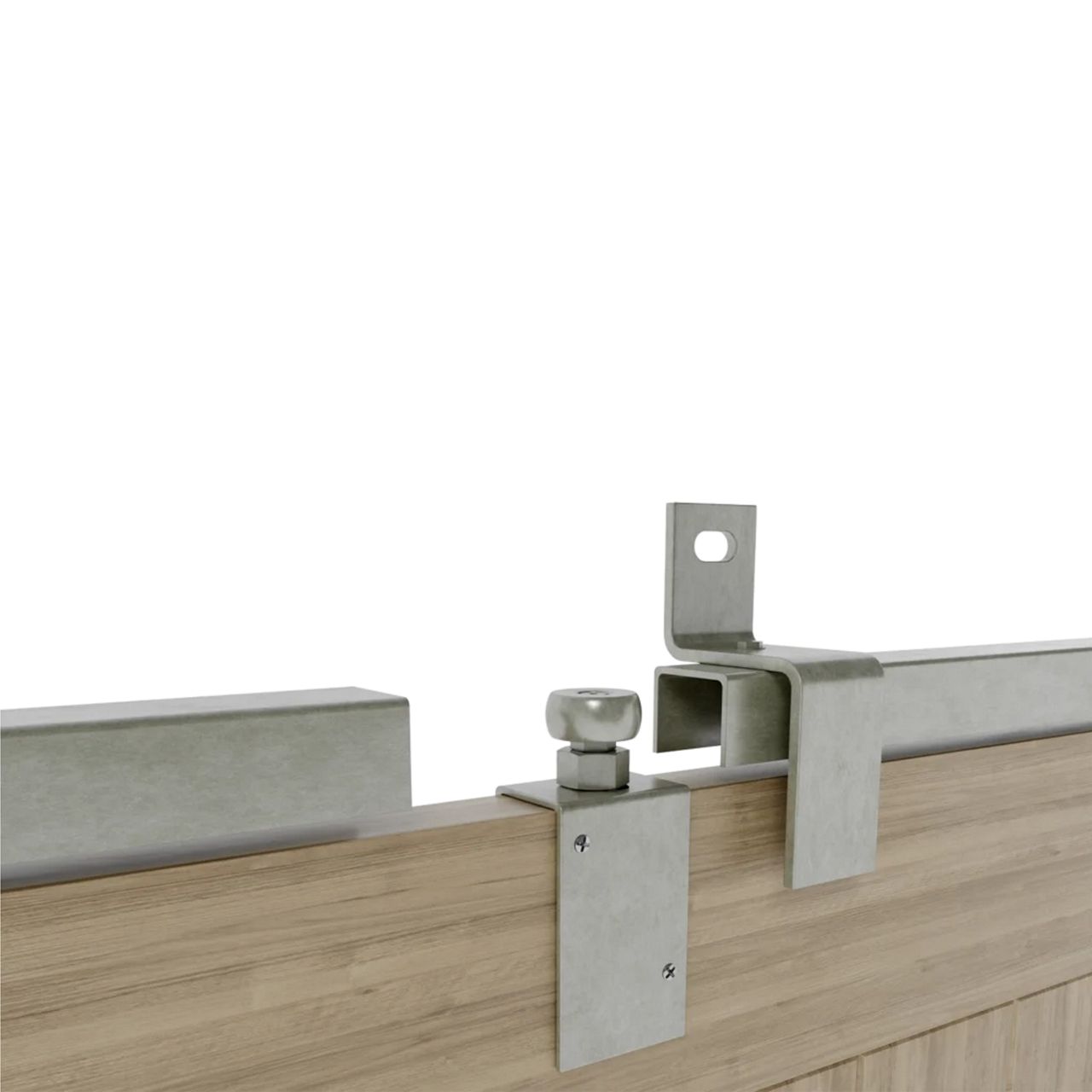

• The top guide channel is to be designed and incorporated into the building structure (this is not supplied by PC Henderson).
• To cover the width of opening, any number of doors can be used on single or multiple lines.

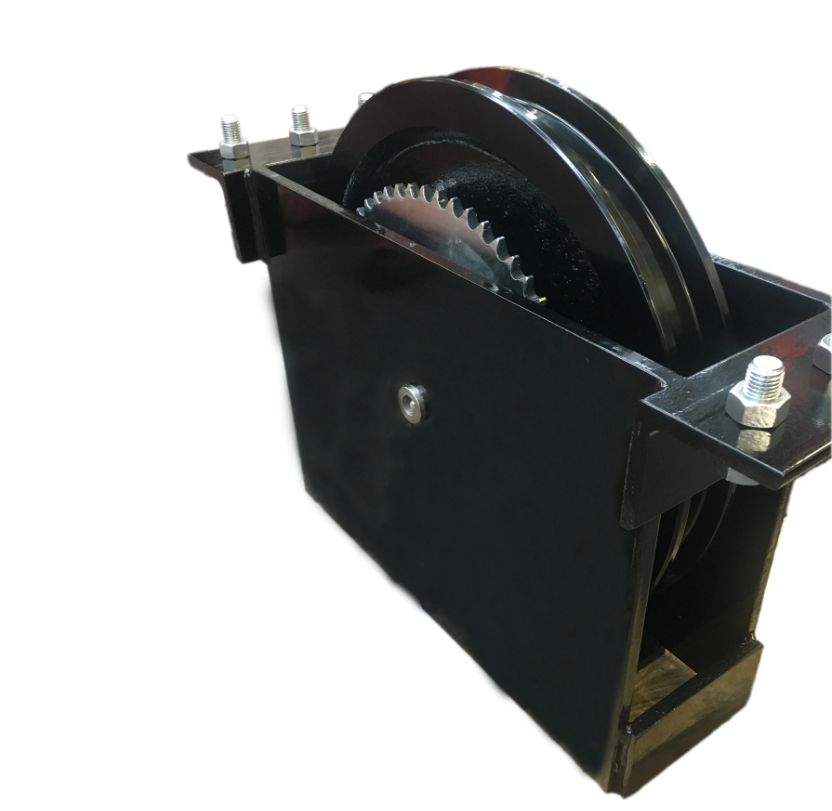

• Doors can be manually operated via mechanical operated drive unit and can be adapted for electrical operation.
