Henderson Mansion

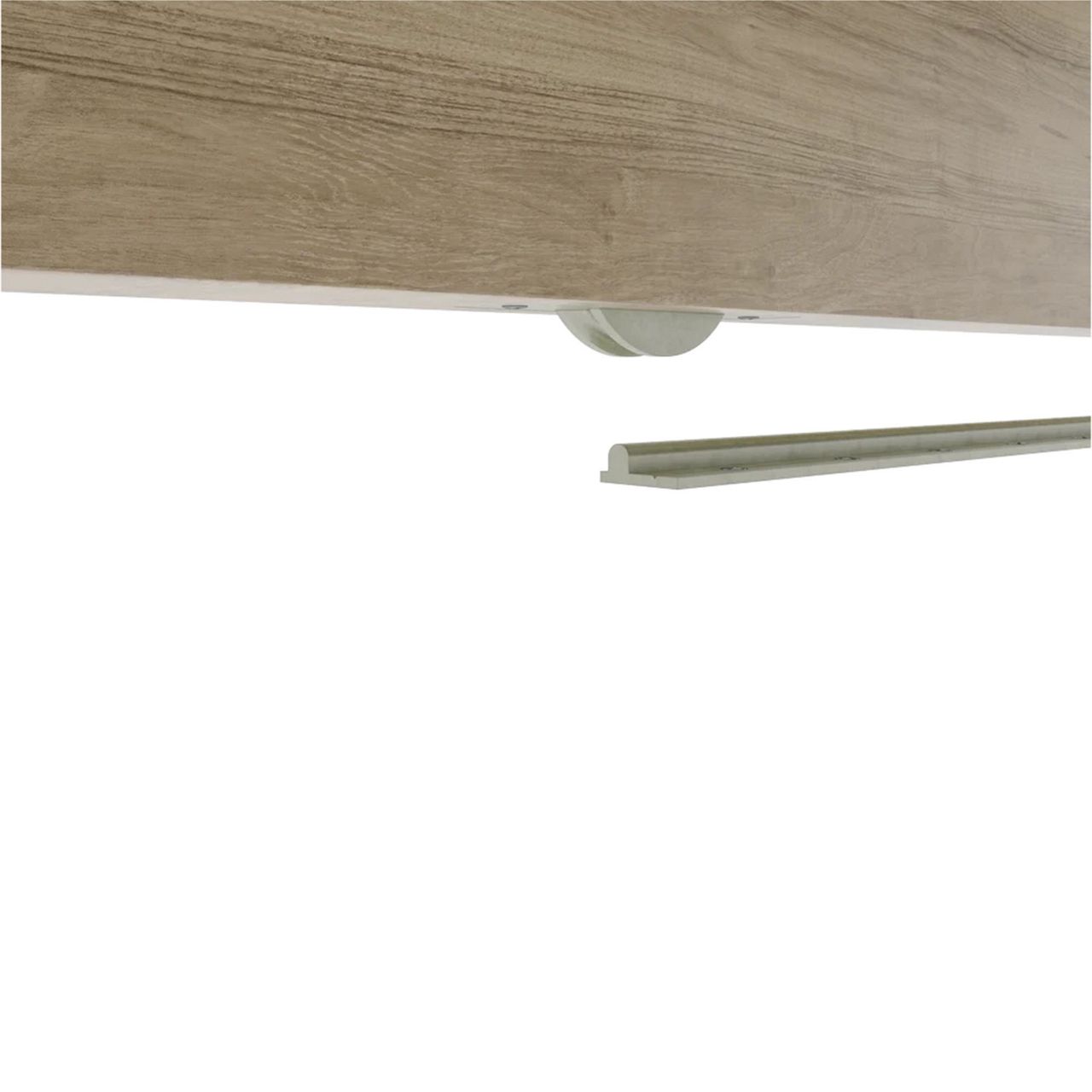

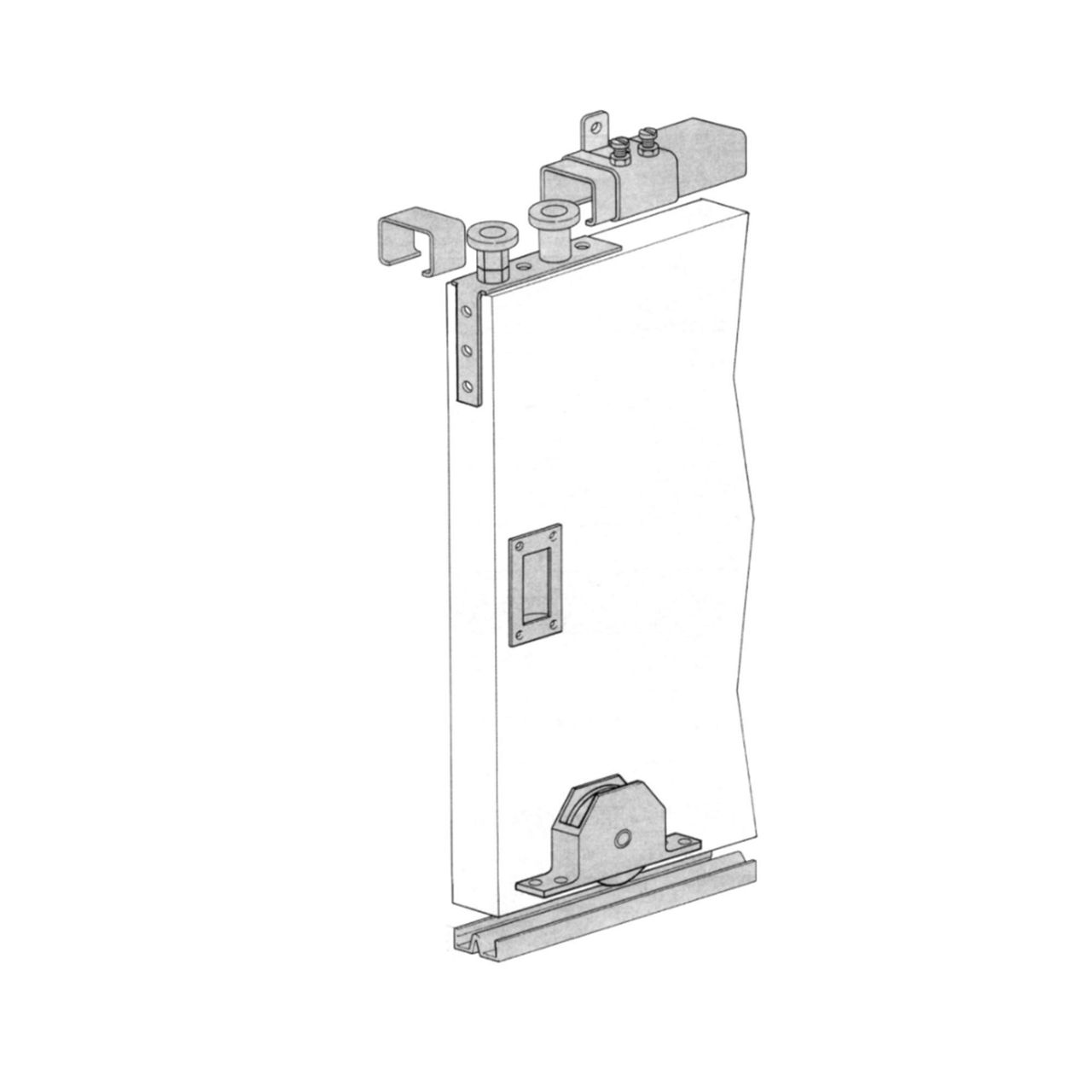

Mansion is a durable sliding door hardware system perfectly suited for high class joinery installations for doors weighing up to 170kg each. Mansion features a concealed bottom roller enabling the weight of the door to be transferred to the floor, making it ideal for when the ceiling or lintel isn't strong enough to support the weight. Note: At least 150mm depth at the bottom of the door must be available to accommodate the concealed bottom rollers when choosing this system.

For bottom roller sliding residential doors. Max 100-170kg each.

APPLICATION

• For interior and exterior applications.
• Ideally suited to premium joinery installations and applications where the supporting structure or lintel is insufficient for the weight of the door or where the headroom is limited.
• Designed for straight sliding partitions or fully glazed patio doors, also suitable for flush or panelled doors.
• To cover the width of opening, any number of doors can be used on single or multiple lines or rail, doors can slide to one or both sides.
• Where fitted externally, a canopy is recommended to protect the top guide channel, brackets and top guide rollers.
