    Lockwood Velocity® Series Small Rose Element Leversets

    • Residential
    • Multi-residential
    • Lockwood

    Capture the aesthetic tone of on trend design whilst maintaining utilitarian desire with the Nero® Velocity Small Rose Series.

    With a design that transcends the basic functional and aesthetic requirements of residential hardware, the Velocity series sets a new benchmark in ease of installation. The Velocity Series includes passage sets for connecting doors, privacy sets for bathroom and toilet doors and dummy half sets for use on cupboard and wardrobe doors where a consistent styling is desired.

    Designed for semi-commercial and residential applications, this range can be used with commercial mortice locks in addition to having passage, privacy and dummy leversets.

    Features

    • All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
    • Simple twist and tighten fixing method pre-assembled leversets allows for super easy and fast installation
    • Available in a choice of square or round rose with the Element lever design
    • Successfully tested up to 2 hours on fire door assemblies with the Australian Standard AS1905.1 2005 - Part 1: Fire Resistant Doorsets
    • Includes range of escutcheons such as AS1428.1 compliant turnknob, standard turnknob and privacy indicating emergency turn

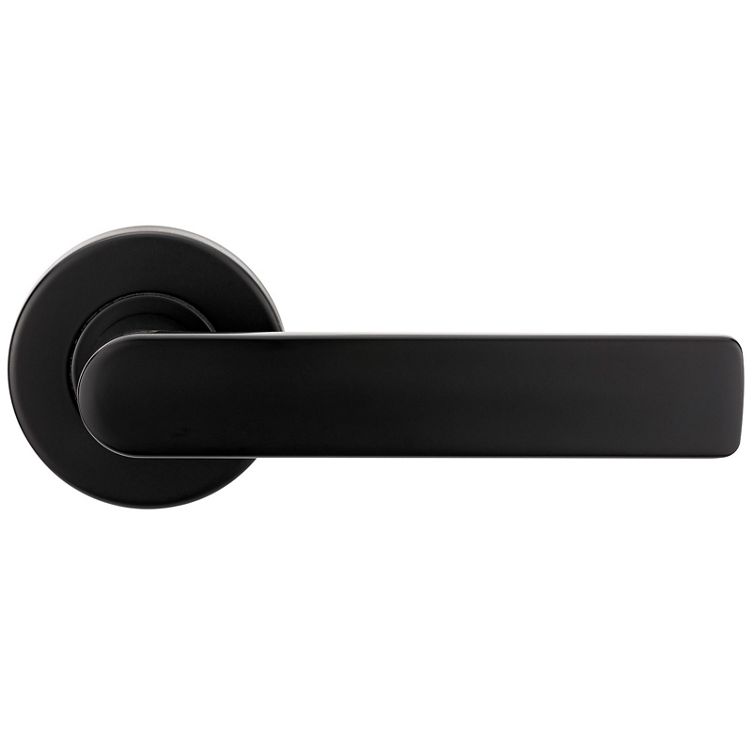

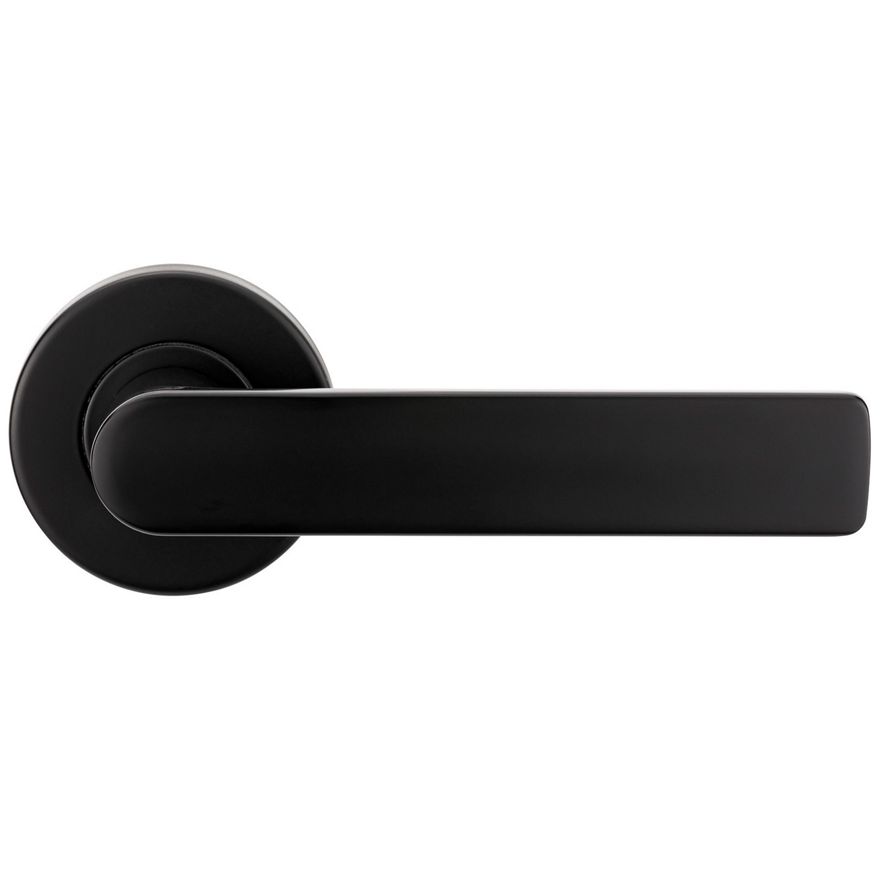

    Element Lever Round Rose Passage and Mortice Set


    1 of 10

    Dimensions

    Lever Dimensions

    Length: 122mm
    Projection: 54.5mm
    Finger clearance: 47.5mm

    Rose Dimensions

    Round Rose: 55mm by 12.5mm
    Square Rose: 58mm by 12.5mm

    Product Details

    Functions Mortice
    Passage
    Privacy
    Dummy
    Materials Solid zinc die-cast
    Door Thickness 32 to 45mm
    Latches

    Mortice sets are supplied with a pair of lever handles to be used with commerical mortice locks

    Passage sets are supplied with a pair of lever handles and a 60mm backset tubular latch

    Privacy sets are supplied with a pair of lever handles and a 60mm backset privacy tubular latch which includes an activating pin for the inside of the door and an external emergency release function. The privacy setting is automatically released when the internal handle is operated

    Dummy sets are supplied with one fixed lever handle

    All latches are supplied with industry standard "D" strikes



    Standards and Compliance

      Durability - Australian Lock Standard AS4145.2-2008
      Corrosion - Australian Lock Standard AS4145.2-2008

    • lockwood-velocity-55mm-installation-passage-and-privacy-set.pdf(PDF, 1 MB)
    • lockwood-velocity-55mm-installation-dummy-set.pdf(PDF, 846 KB)
    • lockwood-velocity-55mm-installation-mortice-lock-installation.pdf(PDF, 1 MB)
    • Lockwood Nero Collection Brochure(PDF, 1 MB)
    • Lockwood Nero Collection Catalogue(PDF, 3 MB)
    • Lockwood Nero Collection Brochure(PDF, 1 MB)
    • Lockwood Nero Collection Catalogue(PDF, 3 MB)
    DescriptionPart numberFinish
    Element™ - Lever 3 Mortice Lock LeversetVSR0/L3MBKMatt Black MBK
    Element™ - Lever 3 Passage LeversetVSR1/L3MBKMatt Black MBK

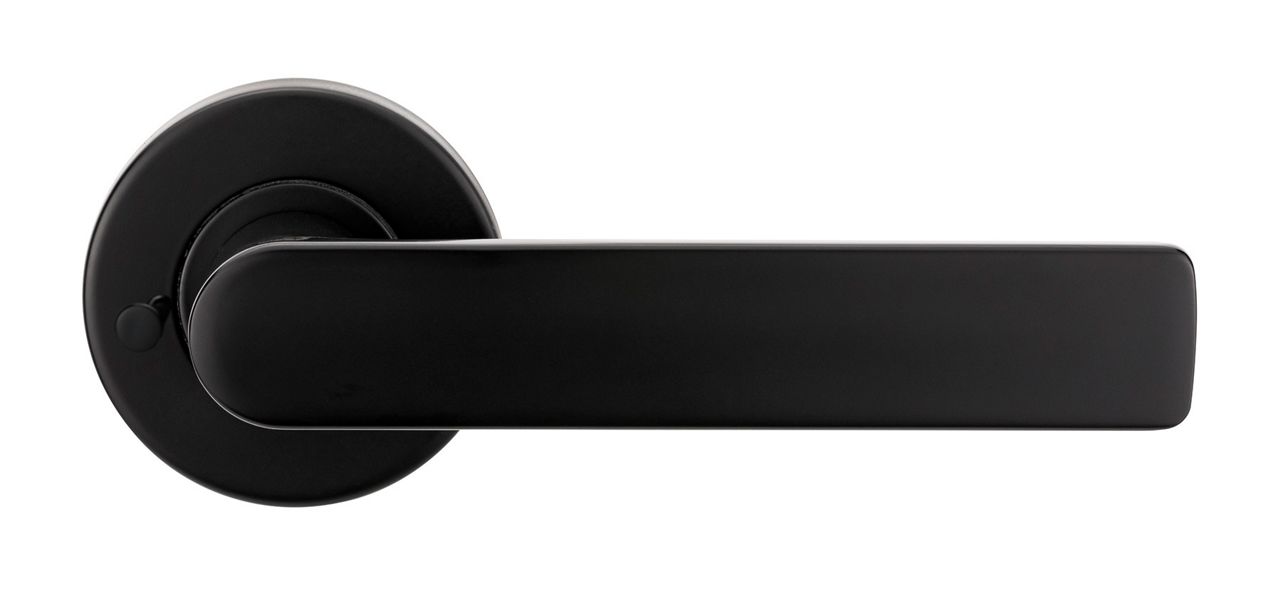

    Element™ - Lever 3 Privacy LeversetVSR2/L3MBKMatt Black MBK
    Element™ - Lever 3 Dummy LeverVSR3/L3MBKMatt Black MBK
    Dianella™ - Lever 8 Mortice Lock LeversetVSR0/L8MBKMatt Black MBK
    Dianella™ - Lever 8 Passage LeversetVSR1/L8MBKMatt Black MBK
    Dianella™ - Lever 8 Privacy LeversetVSR2/L8MBKMatt Black MBK

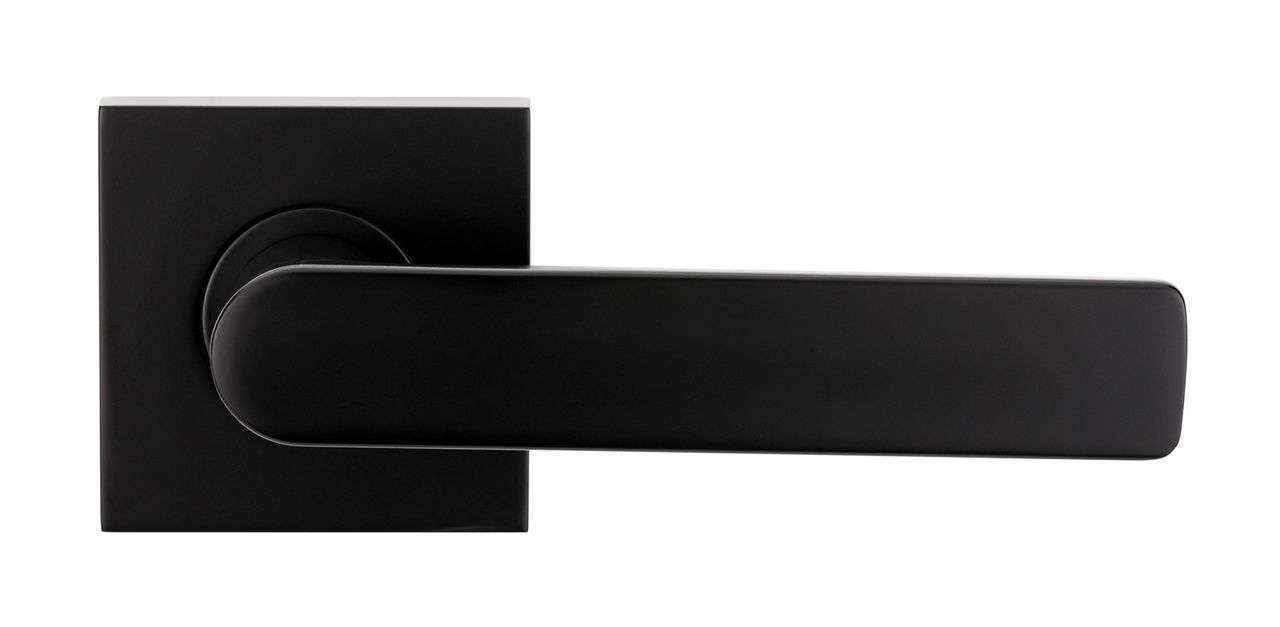

    Square Rose Passage TrimVSS1-TRIMMBKMatt Black MBK
    Square Rose Privacy TrimVSS2-TRIMMBKMatt Black MBK

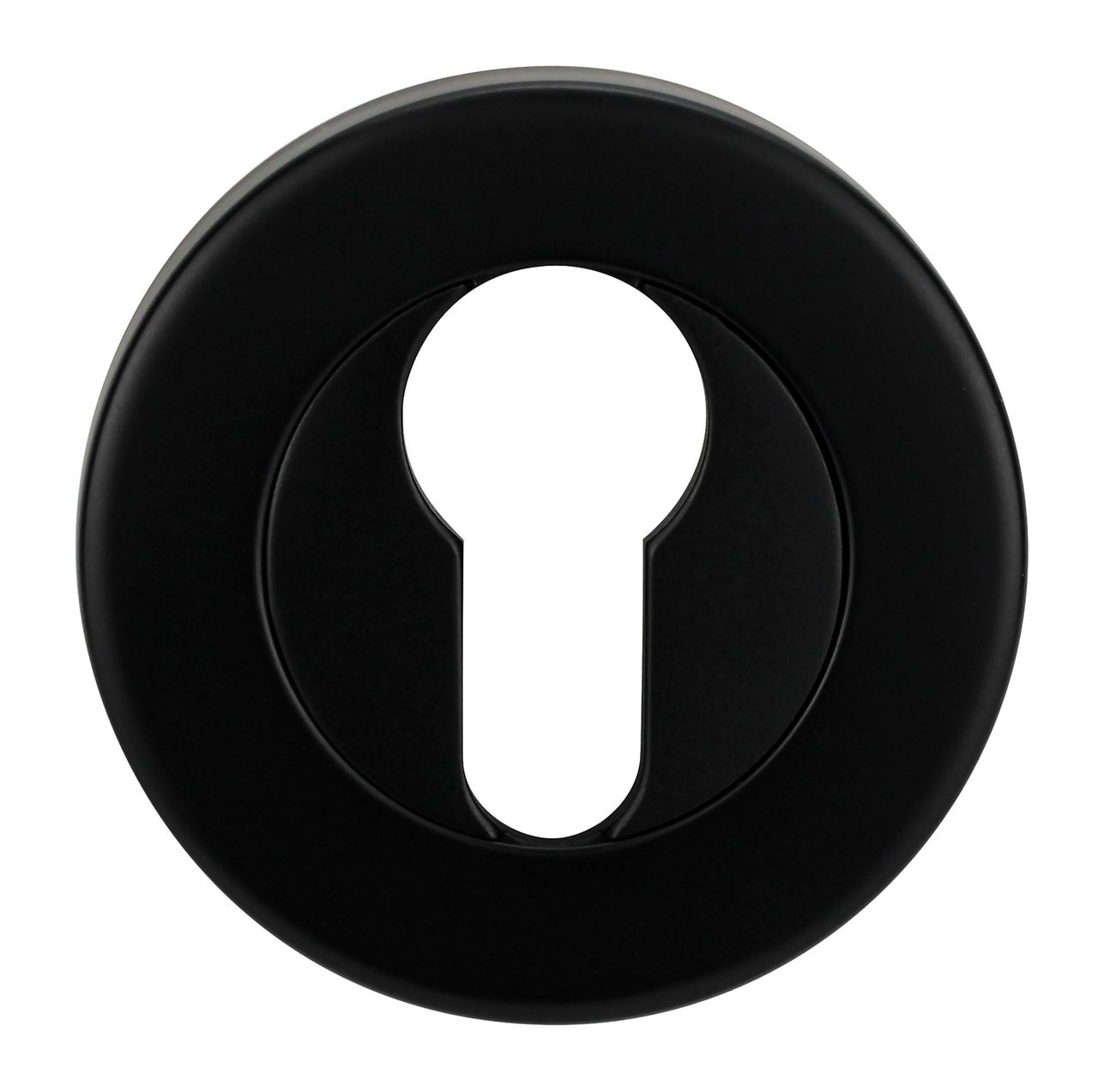

    Euro Cylinder EscutcheonVSR5/MBKMatt Black MBK

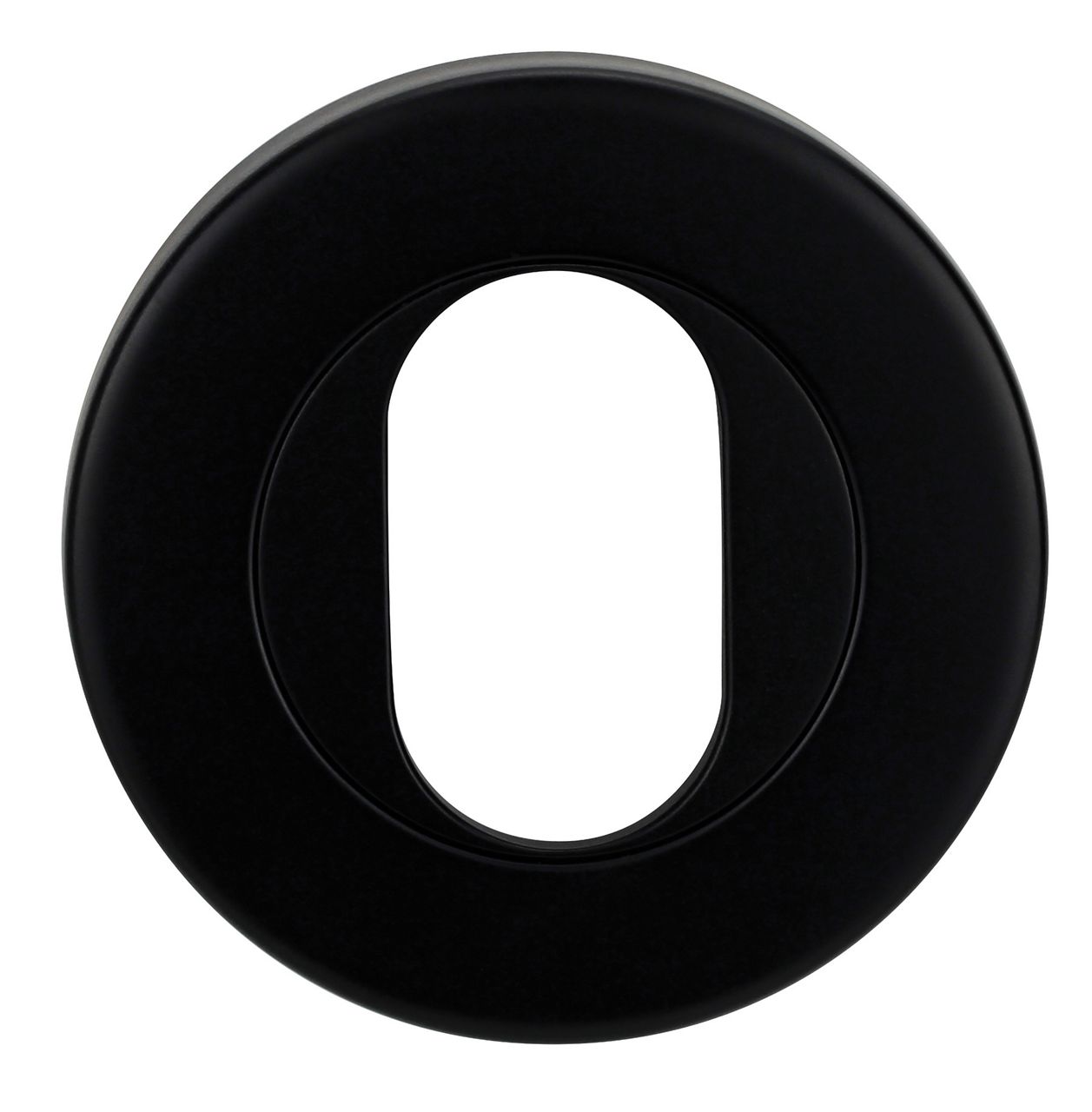

    Oval Cylinder EscutcheonVSR6/MBKMatt Black MBK

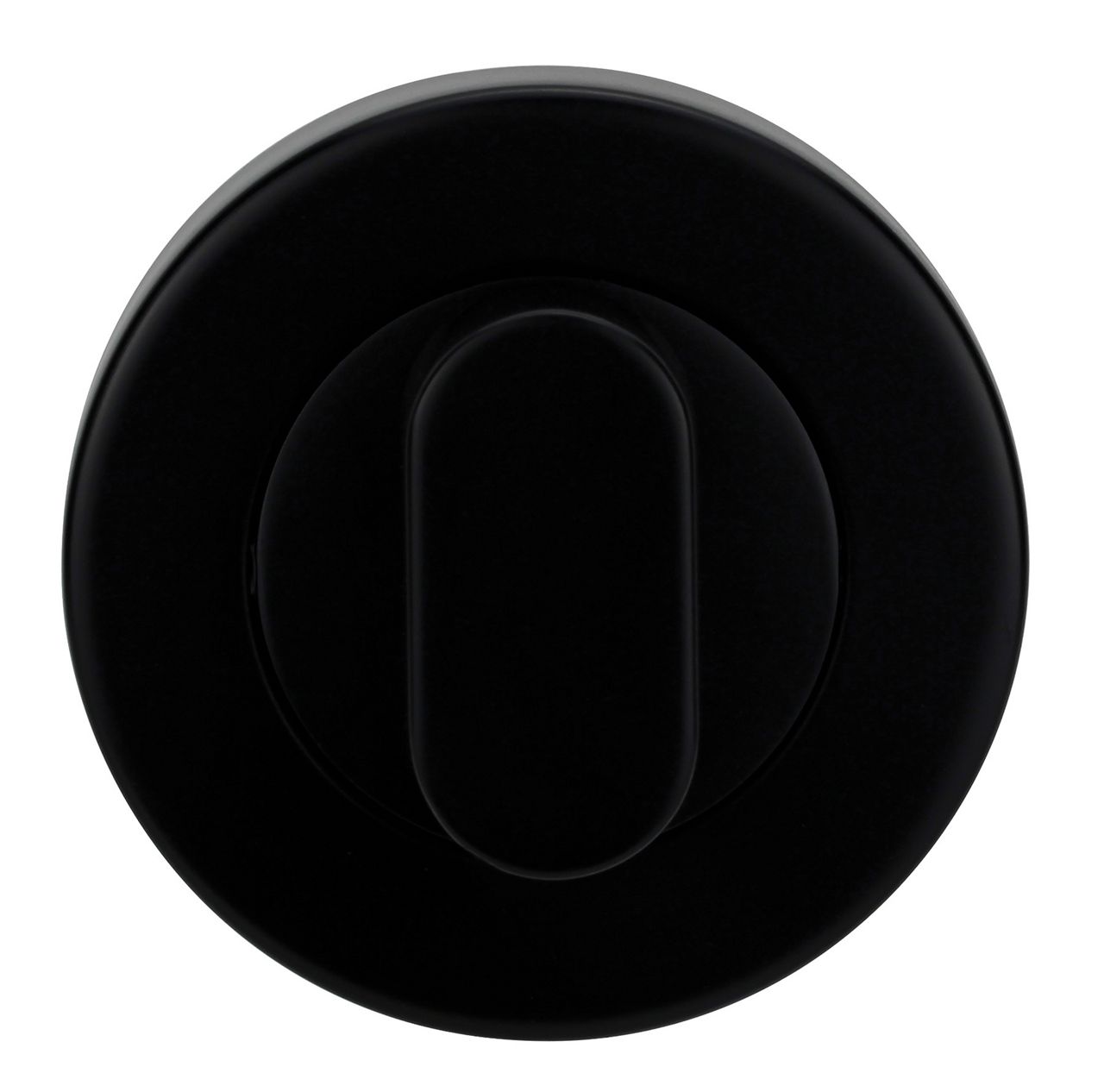

    Standard TurnknobVSR7/MBKMatt Black MBK

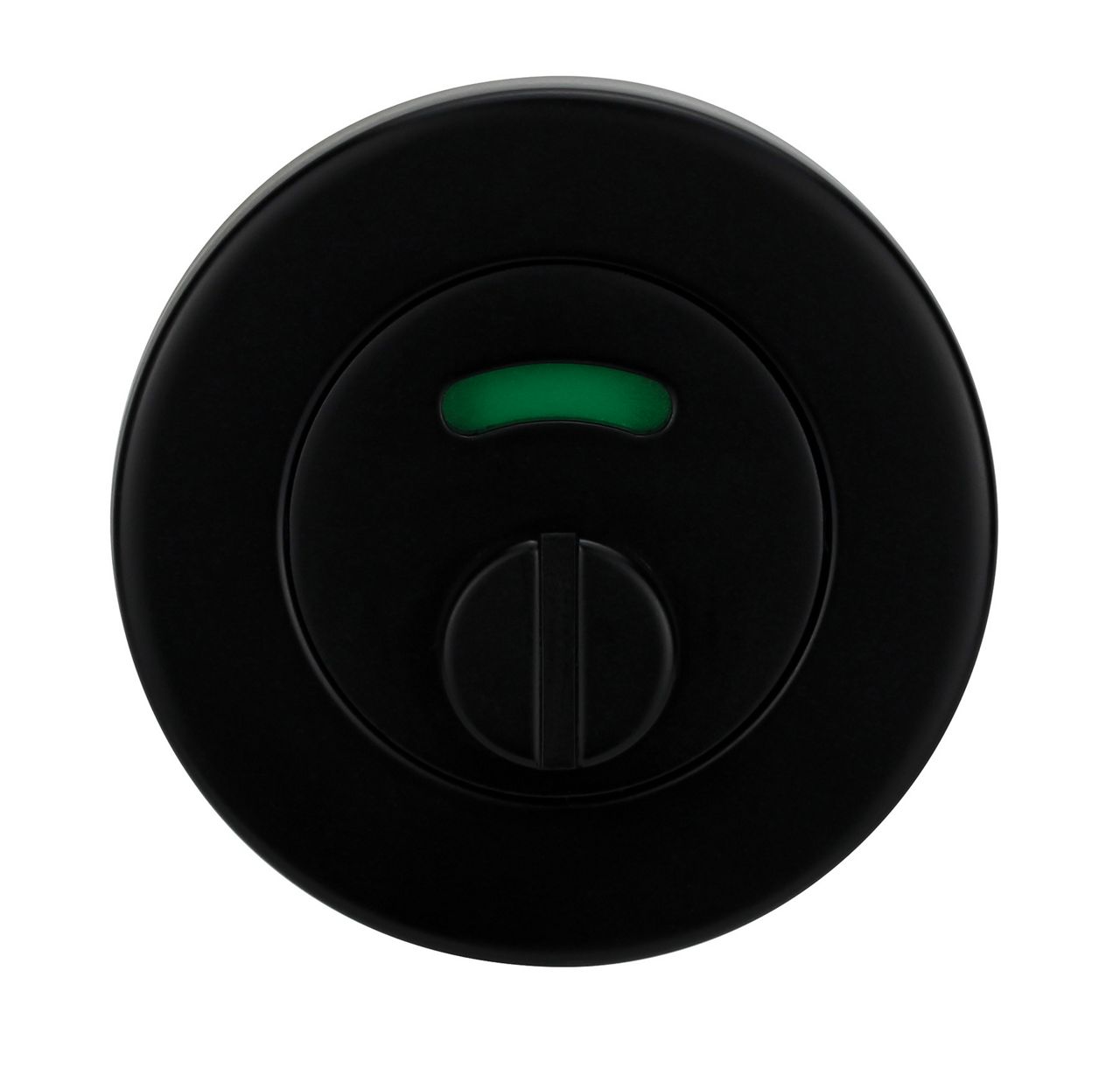

    Privacy Indicating Emergency TurnVSR8/MBKMatt Black MBK

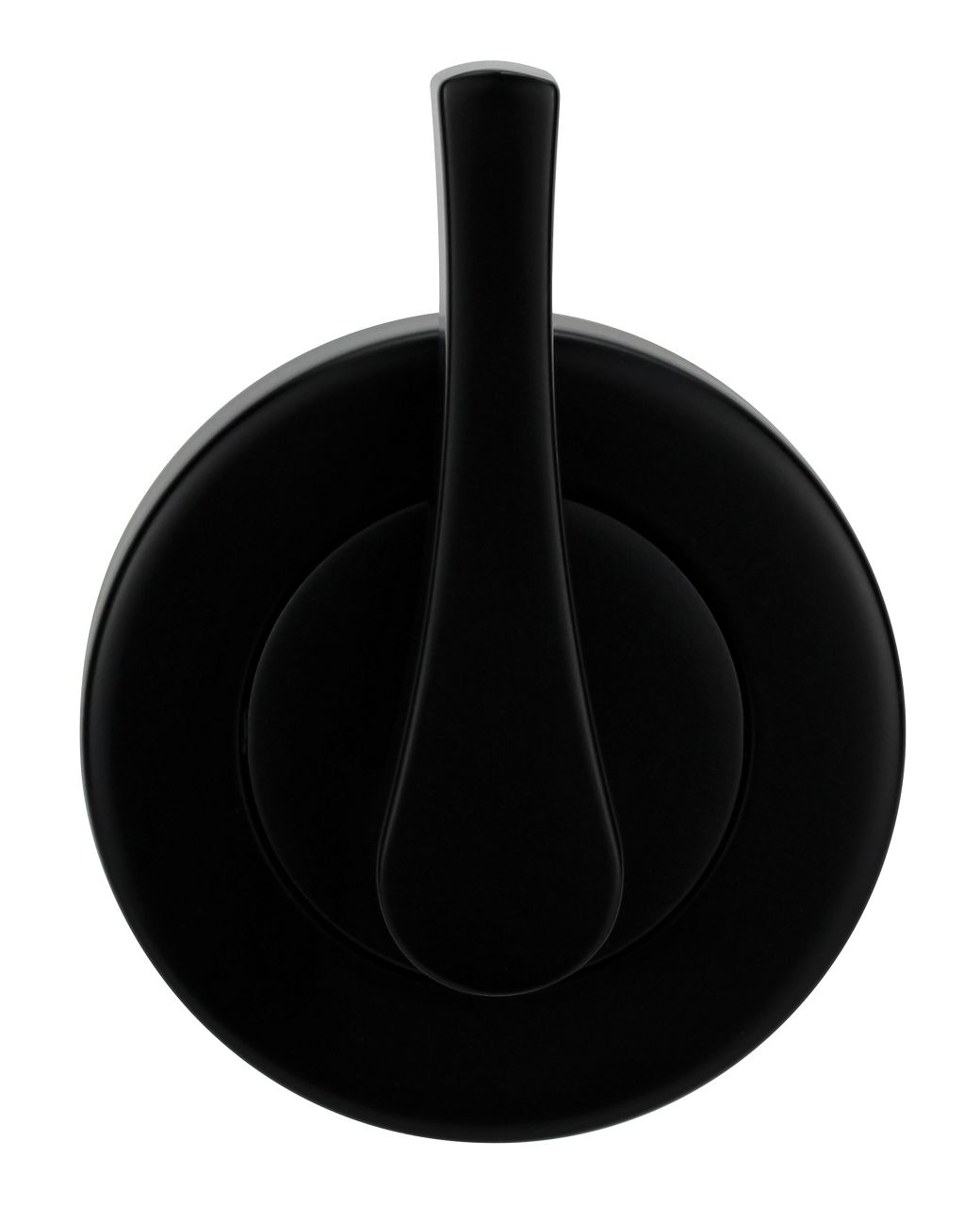

    Disabled Accessible TurnknobVSR9/MBKMatt Black MBK
    Square Rose Escutcheon Trim - Pack of 2VSS6-TRIMMBKMatt Black MBK
