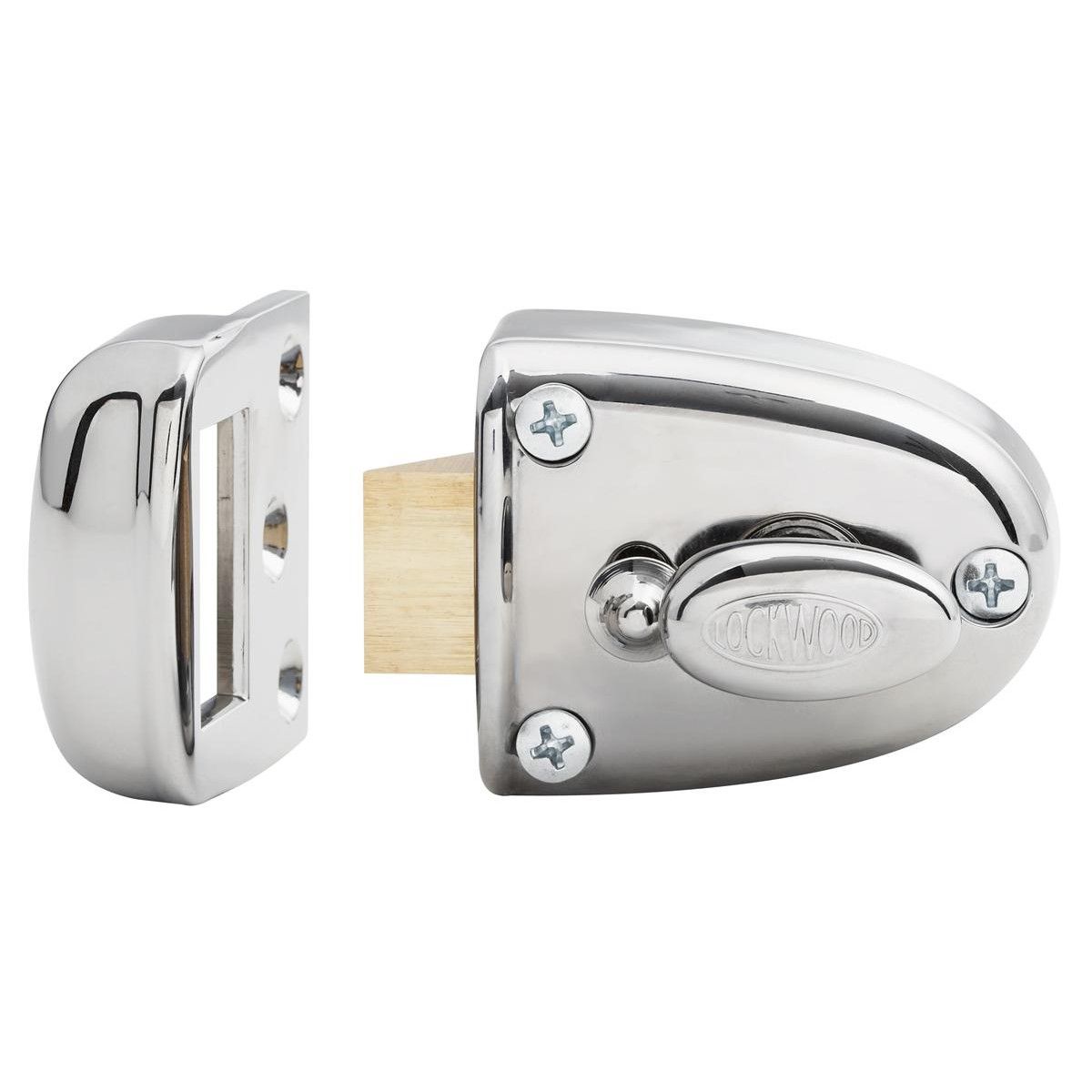

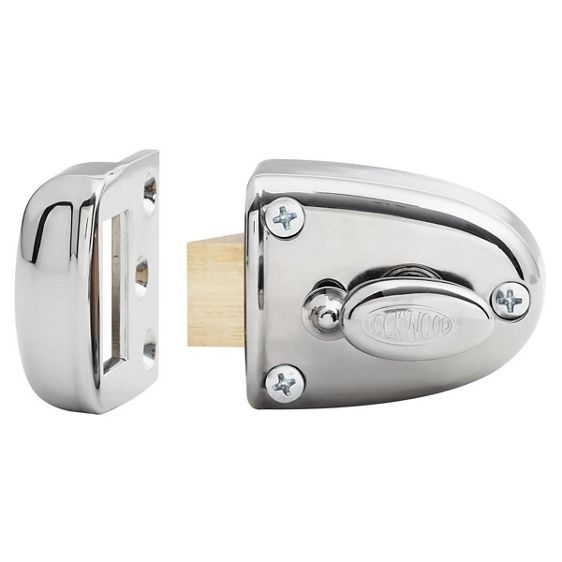

Lockwood 200 Narrow Stile Streamlatch

Case

• High purity zinc alloy
• 68mm wide, 57mm high, 43mm projection

Backset
38mm for narrow stile doors.

Latch

• Brass
• Reversible
• 13mm projection

Door Thickness
28 to 45mm.

Cylinder

• 5 pin tumbler mechanism
• Brass cylinder and brass barrel

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Lockwood Keying Platforms - more information

Dimensions
