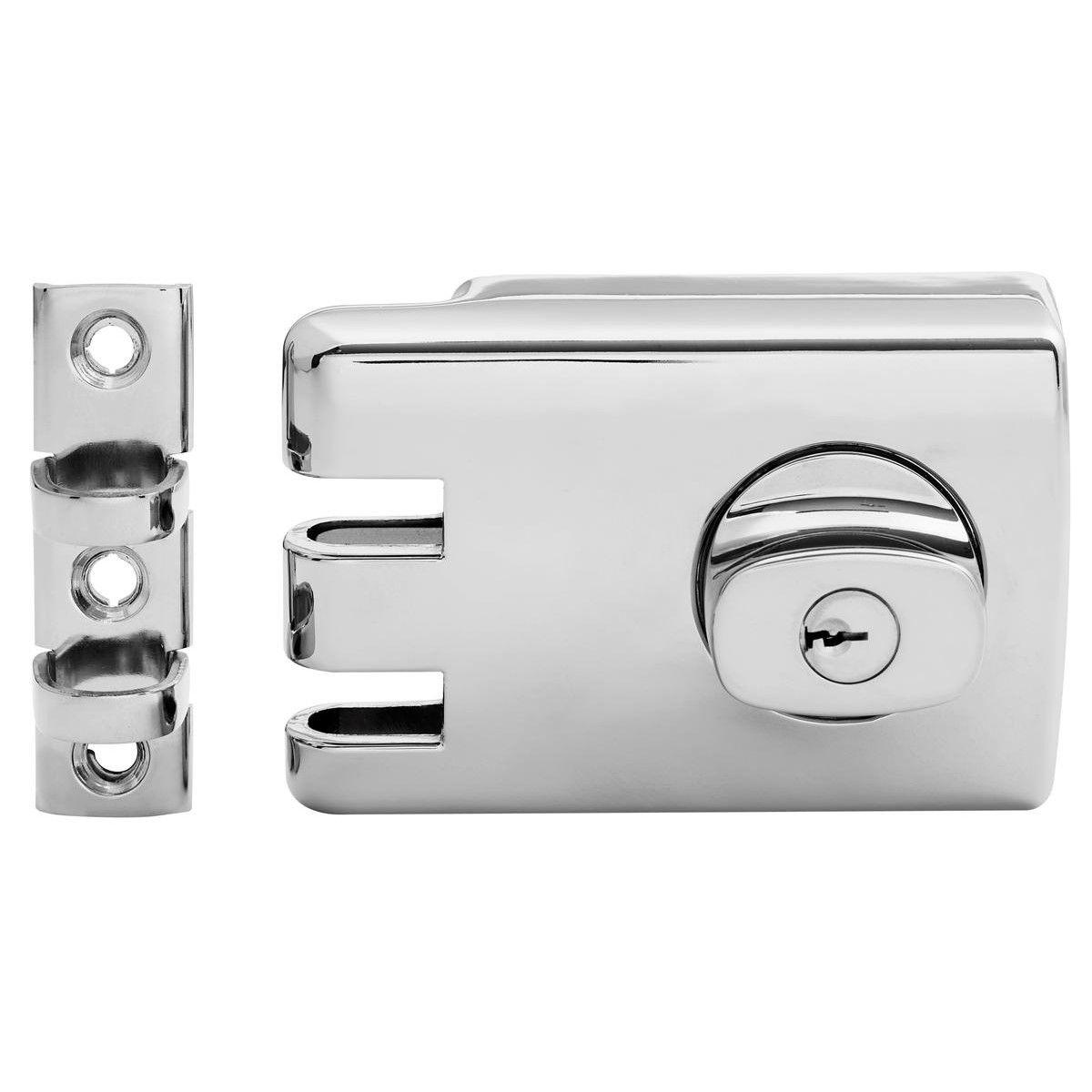

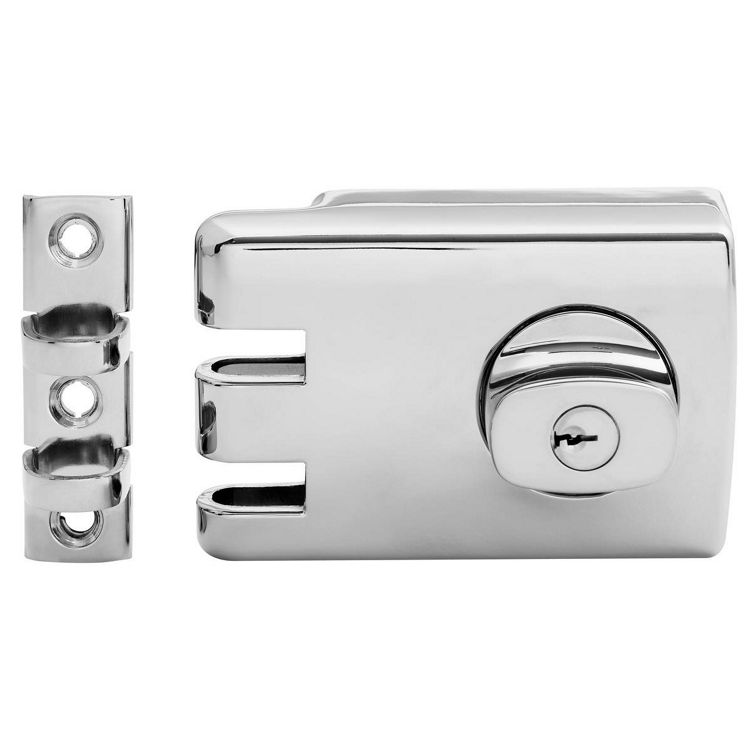

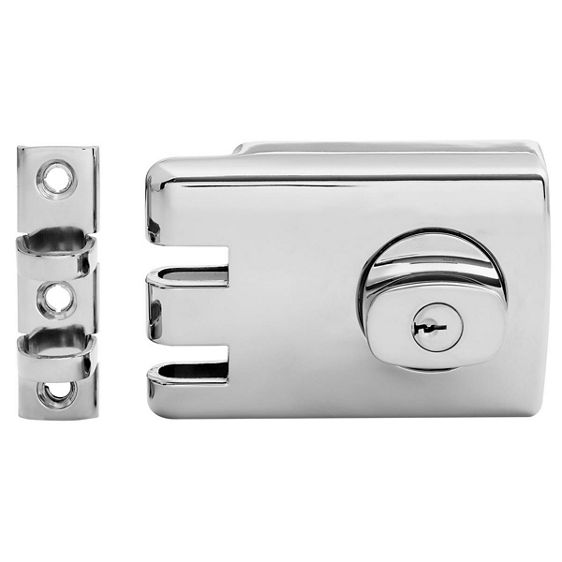

    Lockwood 355 Deadlock

    • Residential
    • Lockwood

    The premium security features provided by the 355 Deadlock make it an ideal lockset for both domestic and commercial applications.

    Suitable for hinged and some sliding doors. Opened by key from outside and by turn knob from inside when free. Internal key locks or unlocks turn knob.

    Features of the 355 Deadlock

    • Suitable for hinged and some sliding doors
    • Lockable turn knob with inbuilt clutching device to resist wrench attack
    • Strong interlocking case and mounting plate to resist jemmy and hammer attack
    • Tested in accordance with AS4145.2-1993
    • Concealed fixing
    • Positive deadlocking action
    • The mechanism and the design are protected by Australian and International Patents and Design Registrations
    • Available in either trade or display packaging
    • Opened by key from outside and by turn knob from inside when free. Internal key locks or unlocks turn knob.
      Kinetic Defence
    Bump and pick resistant.
    2 Keys Included
    Can be keyed alike to other Lockwood door locks.

    Lockwood 355 Deadlock


    1 of 2

    Case
    Thick walled, high purity zinc alloy casting.

    Backset
    60mm

    Bolt
    Stainless steel

    Mounting Plate and Strike
    Pressed steel

    Case Retainer Plate and Operating Mechanism

    • Solid pressed steel and diecast
    • Zinc components

    Packing Plates
    3mm thick packing plates installed under lock body to align lock body with face of jamb.

    Strike Conversion Plate
    A strike conversion plate is required where the strike is to be installed in place of an existing flange strike.

    Door Thickness
    30–45mm

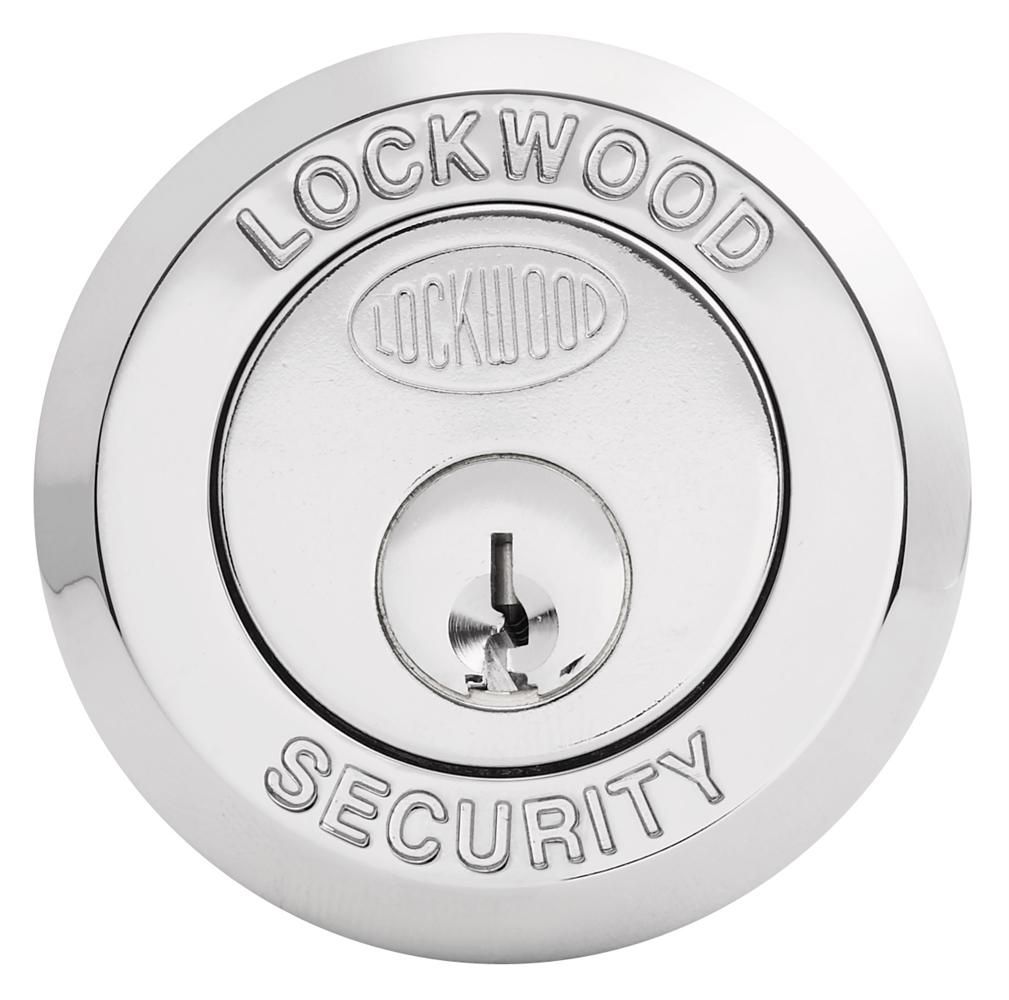

    Cylinders

    • Internal and external 5 pin tumbler mechanism
    • Brass cylinders and barrels

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P

    Restricted Special Keying

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    Lockwood Keying Platforms - more information

    Finishes

    • Everbrass EVB
    • Satin Chrome Pearl SP
    • Chrome Plate CP
    • Brown BRN

    Dimensions
