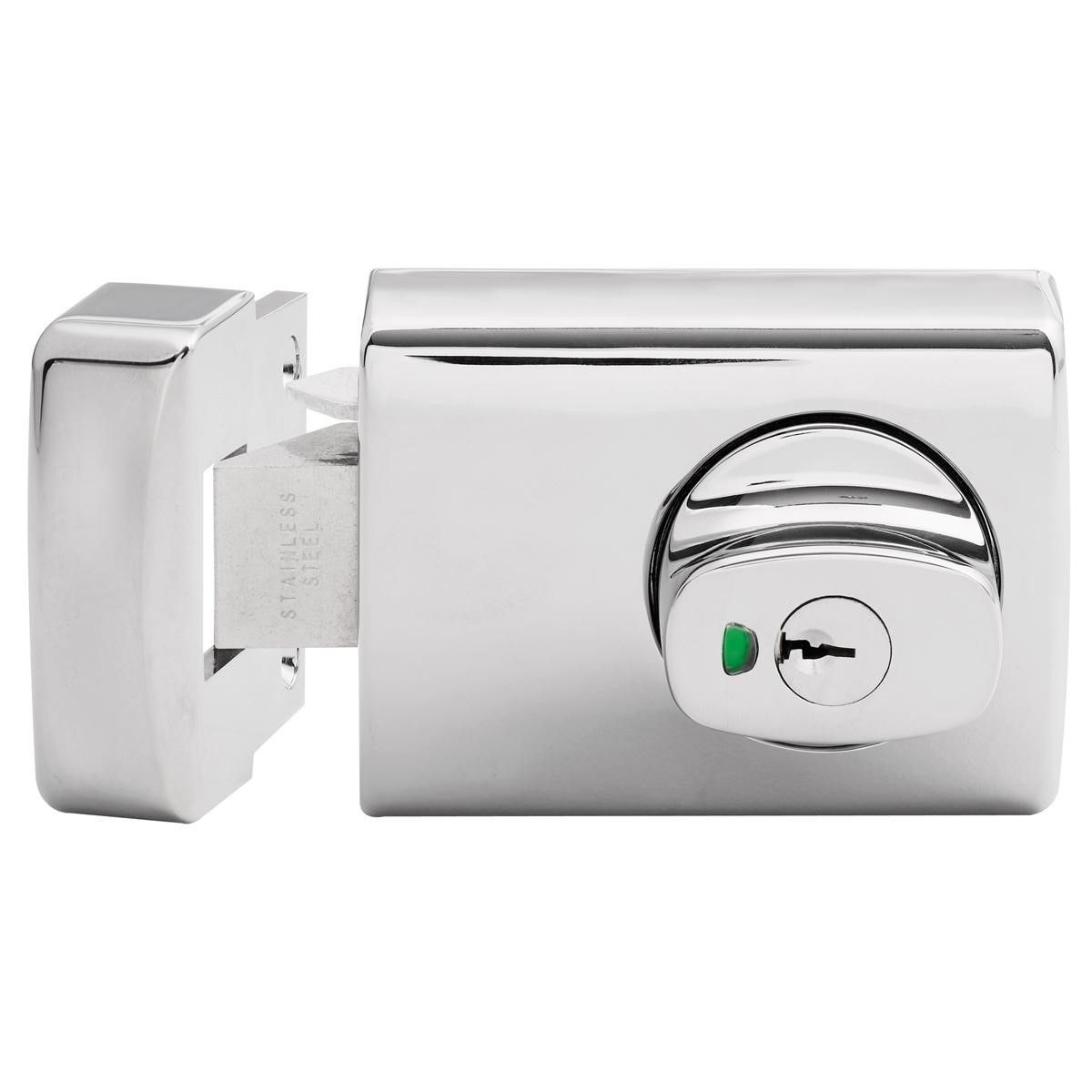

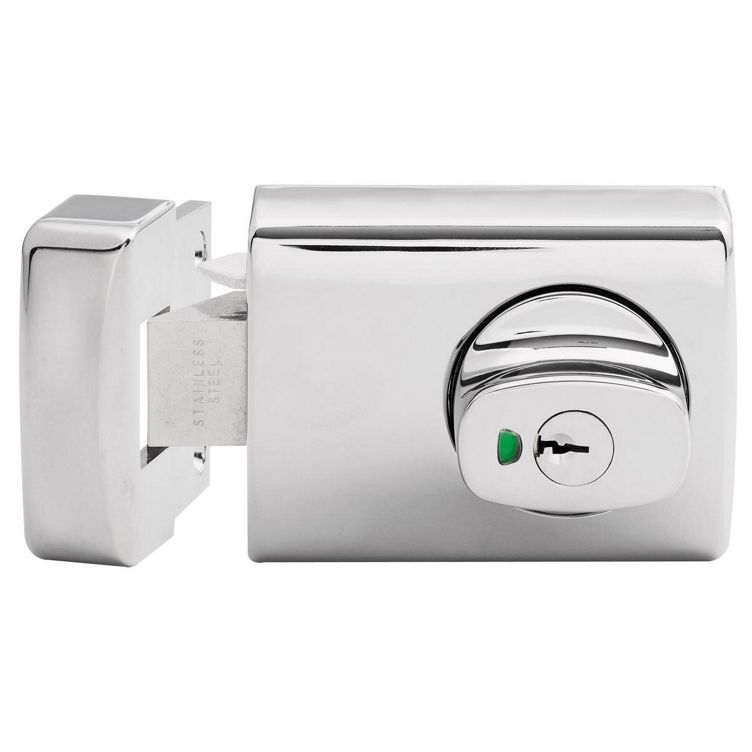

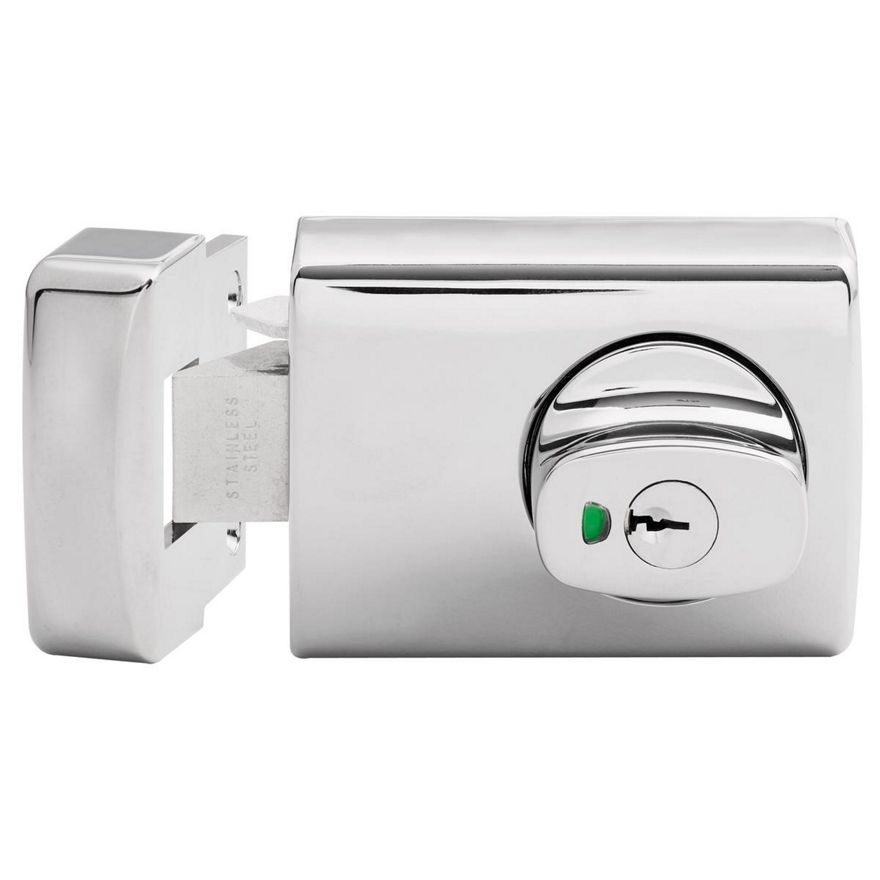

    Lockwood 001 Double Cylinder Deadlatch

    • Residential
    • Lockwood

    Designed in Australia, the 001 Double Cylinder Deadlatch incorporates innovative safety features including Safety Release™ and LockAlert® offering market-leading performance and reliability for your home.

    Features of the 001 Double Cylinder Deadlatch

    • Available in Knob and Lever versions
    • Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL7D8C6
    • Cut-resistant Stainless Steel Bolt
    • 11 concealed anchorage points and a door frame stengthener that combine to offer high security protection
    • Hold back function that allows you to use the door in passage mode

    LockAlert
    The 001 Deadlatch incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:

    Secure Mode
    Locked from the inside and outside.
    Safety Mode
    Locked from the outside and free to exit from inside.
    Passage Mode
    Free to enter from outside and free to exit from inside.

    SafetyRelease™
    Automatically unlocks the internal knob upon entry minimising the risk of being locked in.

    Kinetic Defence®
    Bump and pick resistant.
    Retrofitable
    Replace your existing 001 Deadlatch.
    Suitable for 30-45mm timber framed doors.
    2 Keys Included
    Can be keyed alike to other Lockwood door locks.

    Lockwood 001 Double Cylinder Deadlatch


    1 of 2

    Materials

    Case
    High purity zinc alloy.

    Backset
    60mm.

    Latch
    Stainless steel 18mm projection.

    Door Thickness
    30 – 45mm.

    Packers
    3mm thick packer plates are available, these packers are installed under lock body to align lock body with face of jamb.

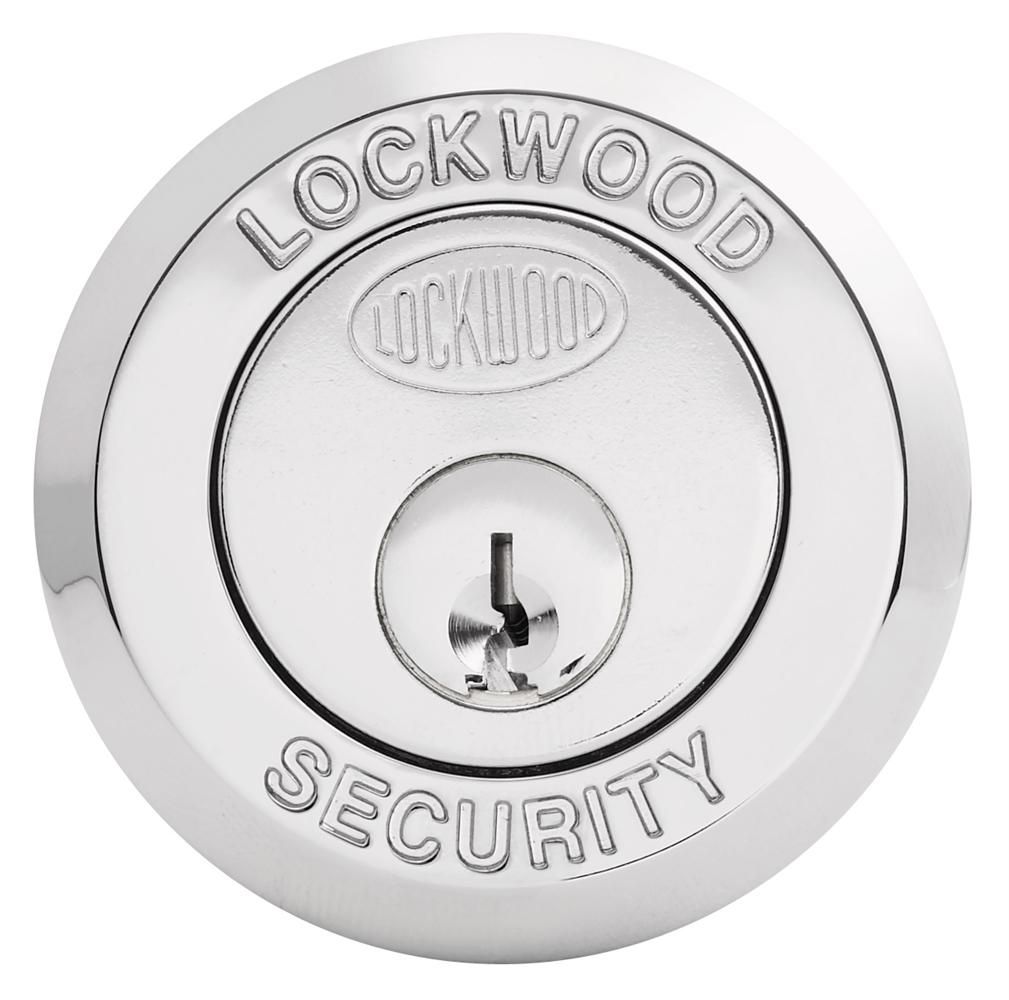

    Cylinders

    • Internal and external 5 pin tumbler mechanism
    • Brass cylinders and brass barrels

    Keying

    Standard Keying

    • Supplied individually keyed with two keys per lock
    • 78,000 key combinations
    • Key blank KB2015P

    Restricted Special Keying

    Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

    Lockwood Keying Platforms - more information

    Finishes

    • Everbrass EVB
    • Satin Chrome Pearl SP
    • Chrome Plate CP
    • Brown BRN

    Dimensions

    001-1K1 with Open In Strike – Single Pack
    Suitable for INWARD opening timber framed doors.

    001-1L1 with Open In Strike – Single Pack
    Suitable for INWARD opening timber framed doors.

    001-3K1 with Metal Frame Strike – Single Pack
    Suitable for INWARD opening metal framed doors.

    001-3L1 with Metal Frame Strike – Single Pack
    Suitable for INWARD opening metal framed doors.

    001-4K1 with Open Out Strike – Single Pack
    Suitable for OUTWARD opening timber framed doors.

    001-4L1 with Open Out Strike – Single Pack
    Suitable for OUTWARD opening timber framed doors.
