Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.
Features of the 530 Series Key in Knob Lockset
Brass bolt with 13mm projection
60mm standard backset, 70mm and 127mm latches available
Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed.

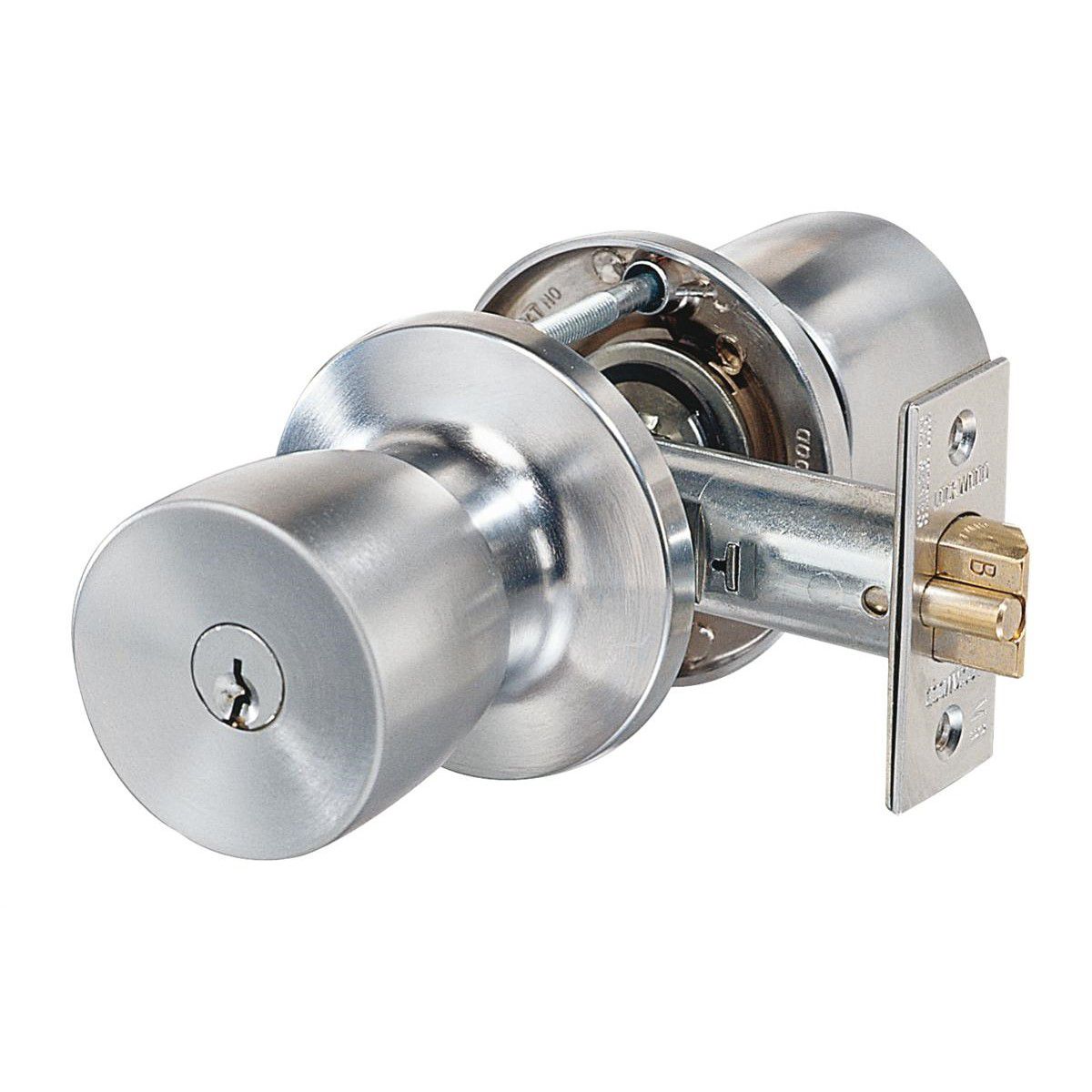

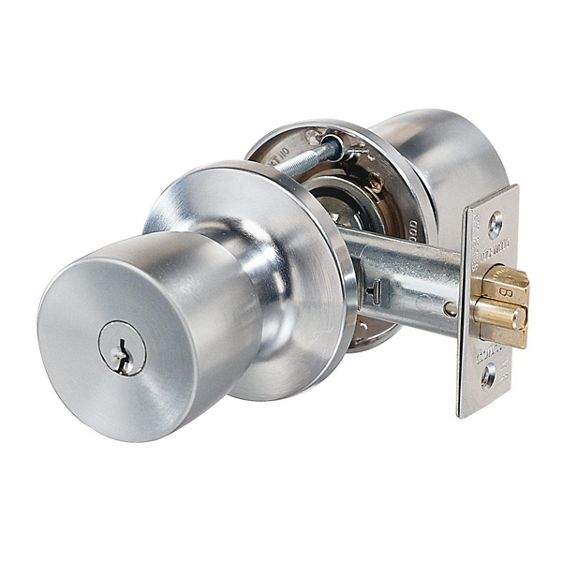

Lockwood 530 Series Key in Knob Lockset
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions
of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Knob and Roses High purity zinc alloy.
Door Thickness 32 to 48mm (all functions except 534 which suits doors 32 to 45mm).
Backset 60mm standard backset. 70mm and 127mm latches available separately.
Latch 13mm projection brass bolt.
Cylinder
5 pin tumbler mechanism
Brass cylinder and brass barrel
Fire Rating Lockwood 530 Series Locksets have been successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
Handing Non-handed lockset.
Finishes Satin Chrome Brushed SC
Keying
Standard Keying
Supplied individually keyed with two keys per lock
78,000 key combinations
Key blank KB2015P
Restricted Special Keying
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
