ASSA ABLOY SW110 Operator

Safe, secure and highly adaptable

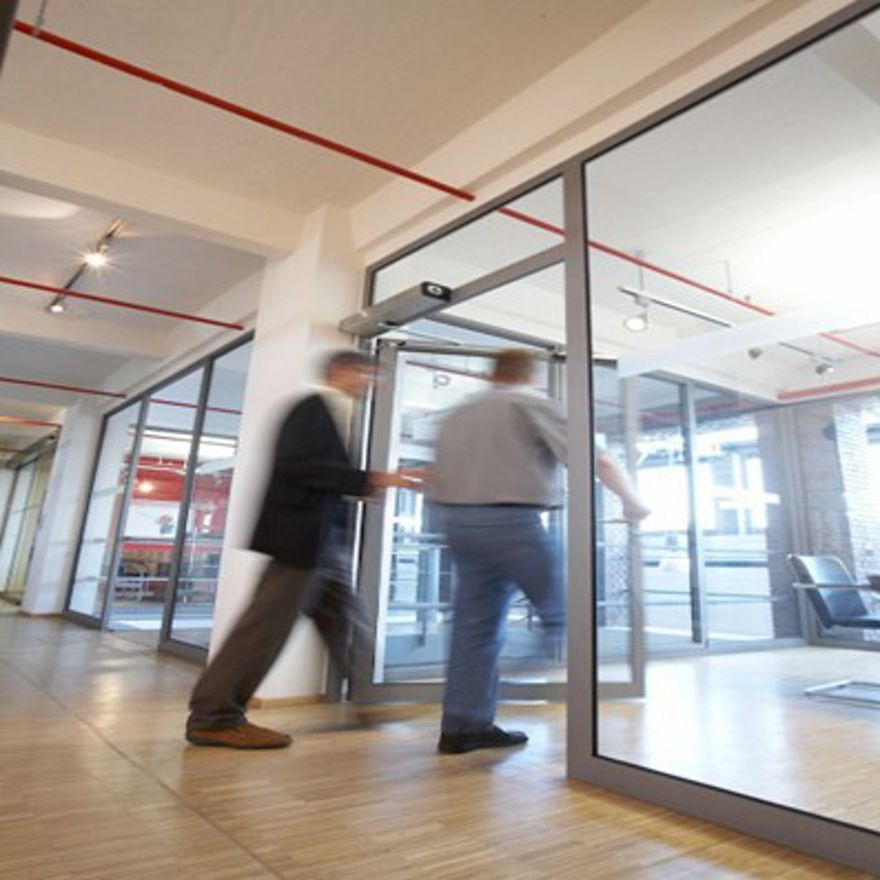

The ASSA ABLOY SW110 Standard is an electromechanical swing door operator that relies on an innovative “push-and-pull” arm system to create safe passage for anyone, and anything. Made to blend into any environment, and due to its low-noise operation, the SW110 is ideal for every kind of setting: from healthcare facilities to airports, offices, residential buildings and busy public areas. Furthermore, the ASSA ABLOY SW110 Standard swing door operator is fully compliant with European standards and fire approved, making it ideal for creating and maintaining security, smoke and fire zones.

Silent and smart

Operated by a smart low-noise drive technology, the ASSA ABLOY SW110 Standard ensures extra silent opening and closing of the door. For a more reliable performance from an operator that will experience fewer breakdowns and require less maintenance. The SW110 also comes with a host of additional features and can be adapted to meet local and national regulations.

Explore what makes ASSA ABLOY SW110 Standard stand out:

Quiet, low-friction opening and closing technology
Full flexibility in selecting Full Power or Low Energy operating modes
Suitable for single and bi-parting doors with lintel or door leaf installation
Easy to maintain and service
Same installation set-up as our other operators,
making upgrades a streamlined procedure
Available with drive system to support different door applications
Platform-based, coherent approach
The sensors can be easily installed and put into operation
The operator is encased in an elegant aluminum cover
Delivered as an assembly kit for easy on-site installation

Full power or low energy operating mode

The powerful operator installed in the ASSA ABLOY SW110 Standard is universally applicable, able to handle large and heavy doors without the installation of additional upgrade modules. Requiring few to no sensors, it can be set to different modes to adjust settings such as opening speed and kinetic energy.

This equipment should be installed, regularly inspected, maintained and serviced by trained and authorised personnel. Preventive maintenance plans are highly recommended for a proper and safe operation. Talk to your ASSA ABLOY Entrance Systems representative to learn more about our service offering

Drive Dimensions

Length 600 mm

Height 87 mm

Depth 124 mm

Door closer size
EN4 – EN6

Recommended max. door weight and door width Inertia J
Door Weight x (door width)²/3
PUSH = 65 kgm²
PULL = 65 kgm²

Power supply
230 V AC, 50 / 60 Hz

Power consumption 67 W

Auxiliary voltage 24 V DC, 1000 mA

Opening angle 70° – 115°

Hold-open time 3 – 20 s / 5 – 20 s

Ambient temperature -15° C to +50° C

Relative humidity (noncondensing)
up to 85% rel. humidity, noncondensing

Type of protection IP20

Arm systems
Standard arm push and sliding arm pull

Noise emission
Less than 45 dB

Accessories and options

Extension unit FEM1 – Used if additional functions are required, e.g. interlock system, configurable input- and output signals

Available with optional brake to stabilise the door in open/close position

Finger trap protection devices

Manual and automatic activation units

Impulse and presence detection sensors

Program selectors, electronic or key-operated

Battery kit supplies power after mains failure

Designed to fit any requirement

Single door operator: one drive unit and one control unit fitted under cover
Double door operator: two door operators available with different options, such as modular or full length cover
Performance: able to move high-weight doors of up to 300 kg
Program door speed to meet your needs (from 3 to 20 s to open and 5 to 20 s to close)
Program time doorway remains fully open (from 0 to 60 s)

Functional on any level

“Push and go” makes the door open automatically from closed position if manually pushed.

PUSH (standard push arm system) - The operator is installed on the wall on the opposite side as the door swing with a door opening angle adjustable to 115°

PULL (sliding arm system) – The operator is installed on the wall on the same side as the door swing with a door opening angle adjustable to 115°

LEVER ADAPTERS – Allow the operator to be fitted higher on the wall or the arm lower on the door leaf.

POWER ASSIST – Heavy doors can be opened manually with minimum effort.
