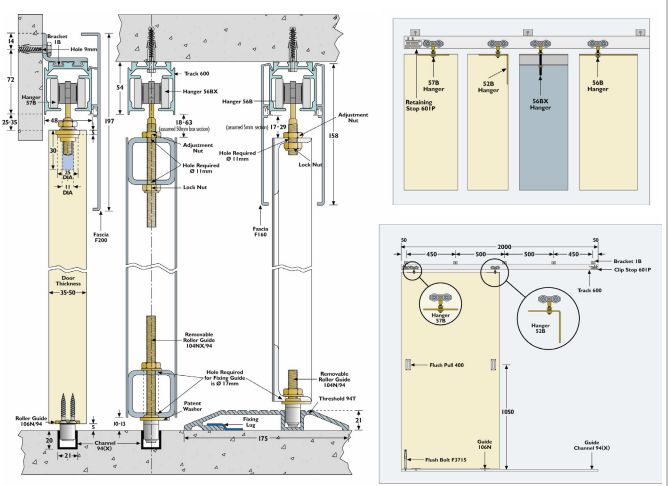

Pacer Sliding Kit

Features and Specifications

• Aluminium mill finish track in 2000, 2500, 3000, 3500, 4000, 5000 & 6000mm
• Anodised aluminium track in 2000, 2500, 3000, 3500, 4000, 5000 & 6000mm
• AN Brackets Face fixed bracket 1B Jointing bracket
• Hangers Angle plate fixing hanger for wooden doors
•  Hanger for angle frame metal doors 56B Hanger for box frame metal doors
• Concealed fixing hanger for wooden doors, aluminium doors or metal doors
•  Guides Floor mounted guide for wooden, aluminium or metal doors
• Concealed fixing guide for wooden or aluminium doors
•  Guide for angle frame metal doors
• Guide for box frame metal doors
•  Guide Channel Brass guide channel available in 1500 and 3000mm lengths

Application:

• For wooden and metal sliding doors weighing up to 200kg
• Wooden doors can be either solid or glazed and metal doors can be of angle or box section
• Ideal for shop-fronts, offcies and other stylish interiors

Certification:

• BS EN 1527:1998
