Locks

ASSA ABLOY Electric locking hardware offer the perfect combination of fast convenient access, safe exit, distance operation, surveillance and last but not least high security.

11 results

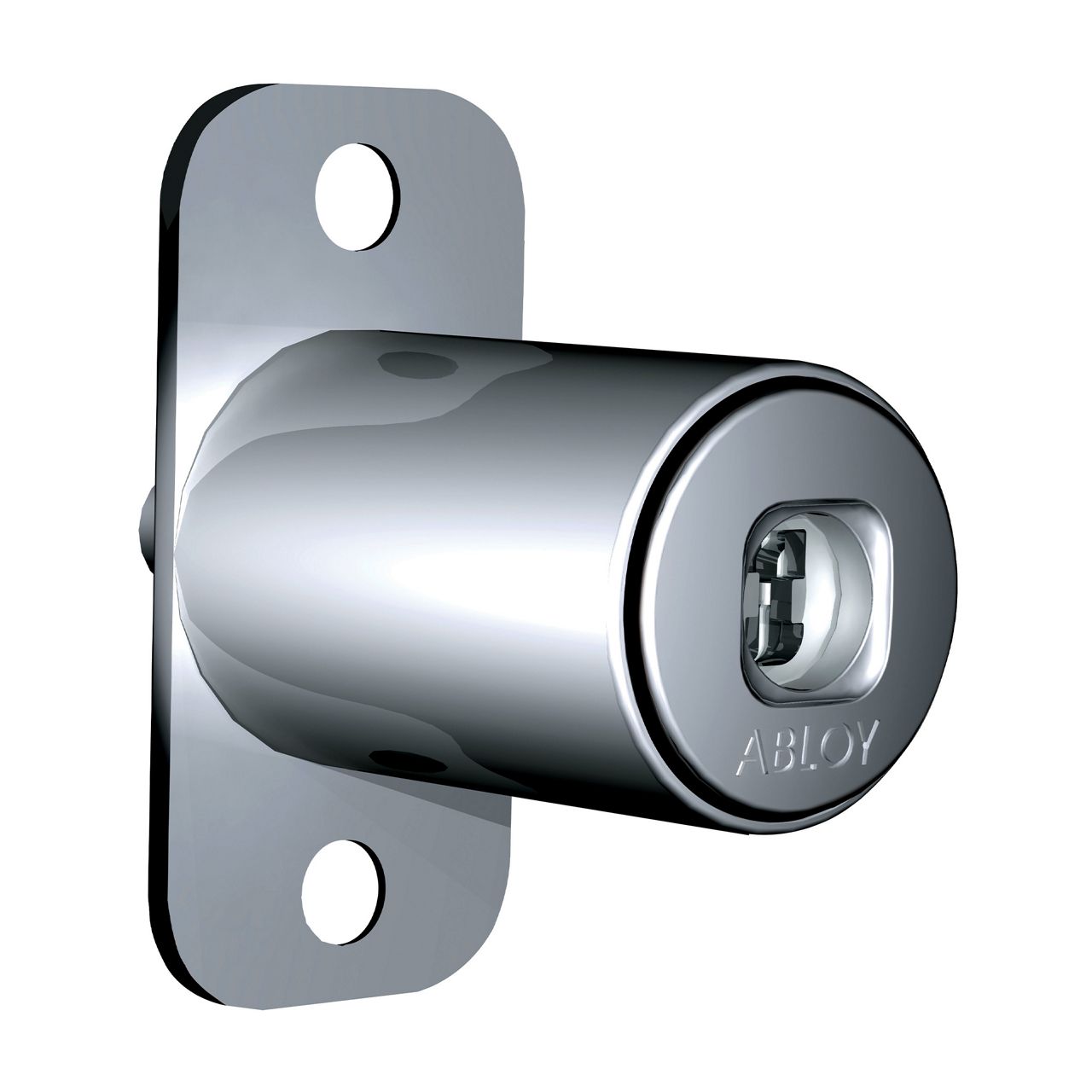

OF430
APPLICATIONS:
- push button lock for wooden doors

DETAILS:
- maximum door thickness in assembling 32mm
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY PROTEC
OF230
DETAILS:
- possible to adjust the lock so that the key can be removed both in locked position or unlocked and locked position
- maximum door thickness in assembling 25mm
- type of bolt: flat
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY PROTEC
EL461 handle controlled lock case for narrow profile doors
APPLICATIONS:
- interior doors of business premises, public buildings, hospitals and schools- medium traffic exit doors
- medium traffic fire rated doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: electrically controlled (e.g. by reader or push button).
EL561 handle controlled lock case for solid doors
APPLICATIONS:
- interior doors of business premises, public buildings, hospitals and schools
- medium traffic exit doors
- medium traffic fire rated doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: electrically controlled (e.g. by reader or push button).
EL460 handle controlled lock case for narrow profile doors
APPLICATIONS:
- interior doors of business premises, public buildings, hospitals and schools
- medium traffic exit doors
- medium traffic fire rated doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: outside handle is electrically controlled (e.g. by reader or push button), inside handle opens the lock always.
EL560 handle controlled lock case for solid doors
APPLICATIONS:
- interior doors of business premises, public buildings, hospitals and schools
- medium traffic exit doors
- medium traffic fire rated doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: outside handle is electrically controlled (e.g. by reader or push button), inside handle opens the lock always.
EL566 handle controlled multipoint lock case for solid doors
APPLICATIONS:
- doors requiring multipoint locking
- interior doors of business premises, public buildings, hospitals and schools
- medium traffic exit doors
- medium traffic fire rated metal doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: outside handle is electrically controlled (e.g. by reader or push button), inside handle opens the lock always.
EL466 handle controlled multipoint lock case for narrow profile doors
APPLICATIONS:
- doors requiring multipoint locking
- interior doors of business premises, public buildings, hospitals and schools
- medium traffic exit doors
- medium traffic fire rated doors
- not suitable for use with door automatics

FUNCTION:
- handles on both sides of the door: outside handle is electrically controlled (e.g. by reader or push button), inside handle opens the lock always.
EL420 push & pull function motor lock case for narrow profile doors
APPLICATIONS:
- entrance doors, corridor doors
- high traffic exit doors and access controlled doors
- fire rated doors
- doors with door automatics

FUNCTION:
- a pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
EL520 push & pull function motor lock case for solid doors
APPLICATIONS:
- entrance doors, corridor doors
- high traffic exit doors and access controlled doors
- fire rated doors
- doors with door automatics

FUNCTION:
- a pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
CL100
- key removable in locked position only
- length is 37mm
- universal range
- several different cam types
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY PROTEC
