Sliding Door Gear

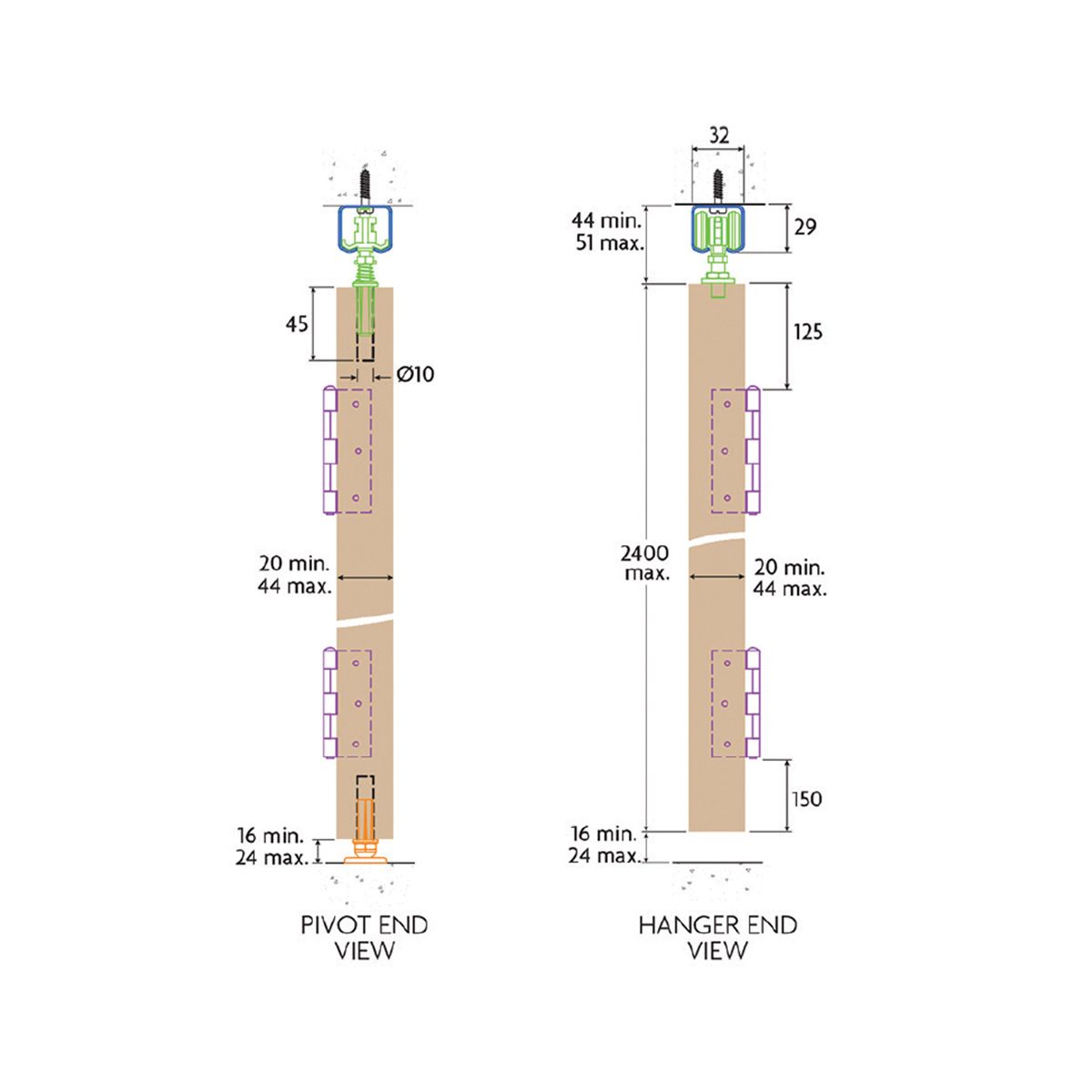

Application:

• For timber, timber framed or composite doors
• For light residential folding partitions
• Neatly stacking at one or both sides
• Concealed fixing
• Floor component - pivot only

Specification:

• Max. door weight: 25kg
• Max. door width: 600mm
• Max. door height: 2400mm
• Door thickness: 20-44mm
• *Extra pivots required if doors will be split (2+2)
• Bottom Pivot (289B)
• Top Pivot (289T)

Application:

• For entrance doors and doors between rooms
• For timber, timber framed or composite doors
• Silent - nylon guides and hangers on aluminium track
• Floor component - guide only

Specification:

• Max. door weight: 30kg
• Max. door width: 900mm
• Max.door height: 2400mm
• Door thickness: 20-35mm

Application:

• For cupboards and wardrobes
• For timber, timber framed or composite doors
• Quet and smooth - nylon guides and rollers, with aluminium rail
• easy to install - no routing required

Specification:

• Max. door weight: 25 kg
• Max. door width: 920mm
• Max door haight: 2400mm
• Door thickness: 16-40mm

Application:

• For room deviders - for residential, hospital and hotel use
• For timber, timber framed or composite doors
• Ultra silent, frictionless, easy operation
• Floor component - guide only
• Simultaneous action option

Specification:

• Max. door weight: 45kg
• Max. door width: 610-915mm
• Max. door height:2400mm
• Door thickness: 30 - 50mm

Application:

• For heavy duty applications - wardrobes, cupboards, in
• hotels, schools and offices
• For timber, timber framed or composite doors
• Silent - nylon wheeled bearing hangers and aluminium track
• Easily adjusted door height
• Floor component - Nylon
• Guide with channel available as a non standard option

Specification:

• Maximum door weight: 45kg
• Maximum door width: 900mm
• Maximum door height: 2400mm
• Door thickness: 16-40mm

Application

• For heavy-duty and light commercial applications, doors and partitions
• For timber, timber framed or composite doors
• Easily adjusted door height
• Self closing kit option for doors up to 60kg (SCK1)
• Simultaneous action option

Specification:

• Max. door weight: 55kg
• Max. door width: 1500mm
• Max. door height: 3000mm
• Door thickness: 32-50mm

Application:

• Pneumatic door closer for doors up to 100kg
• Easy to install
• Can be retrofitted to existing sliding door applications
• Comes complete with fascia
• Available in a chrome finish
• No power source required
• Door speed adjustment settings
• Suitable for left or righ hand openings

Specification:

• Power force start (kgf) 1.5
• Power force extended (kgf) 4.1
• Maximum door weight 100kg
• Maximum door width 1270mm
• Based on a smooth rolling system with less than 1.0kg table moving force

Certification:

• BS EN1527

Application:

• For timber, timber framed or composite doors
• Stable and smooth running
• Suitable for jambless openings
• Silent and easy to fix - nylon spring-loaded guides with attractive aluminium top track
• Leaves to fold back completely

Specification:

• Max. door weight: 14kg
• Max. door width: 530mm
• Max door height: 2400mm
• Door thickness: 25-30mm

Application:

• For timber, timber framed or composite doors
• For light residential folding partitions
• Neatly stacking at one or both sides
• Concealed fixing
• Floor component - pivot only

Specification:

• Max. door weight: 40kg
• Max. door width: 750mm
• Max. door height: 2700mm
• Door thickness: 20-44mm
• *Extra pivots required if doors will be split (2+2)
• Bottom Pivot (289B)
• Top Pivot (289T)

Application:

• For timber, timber framed or composite doors
• For medium weight doors up to 50kg
• Quiet operation - galvanised steel or aluminium track with nylon rollers
• Floor component - guide only
• Simultaneous action option
• Soft stop action in single or double kit option

Specification:

• Maximum door weight: 50kg
• Maximum door width: 1250mm
• Maximum door height: 20-50mm

Application:

• For cupboards, bookcases and other good quality cabinet work
• For timber framed, glazed or flush doors
• Quiet and smooth - nylon guides and rollers, with aluminium rail

Specification:

• Max. door weight: 23kg
• Max. door width: 900mm
• Max. door height: 1800mm
• Door thickness: 20-45mm

Application:

• Creates traditional look for sliding wooden doors
• Exposed steel straps fasten down the front of the door to support the rustic finish
• The beautifully crafted barn door style hangers run smoothly acress a flat bar track
• Robust black powder coat or stainless steel provides a durable finish
• Nylon bearing wheels provide a smooth and silent running system
• Easy to install
• Available in 2m (R80/20) and 3m kits (R80/30)
• Tested to 100 000 cycles
• Additional kit availabe for 2 door installation
• Includes black oval flush pull

Specification (2km Kit R80/20):

• Max. door weight: 80kg
• Min. door width: 500mm
• Max door width: 1000mm
• Door thickness: 36-46mm

Specification (3m kit R80/30):

• Max. door weight: 80kg
• Min. door width: 500mm
• Max. door width: 1500mm
• Door thickness: 36-46mm

Certification:

• BS EN 1527:2013, ISO9001
