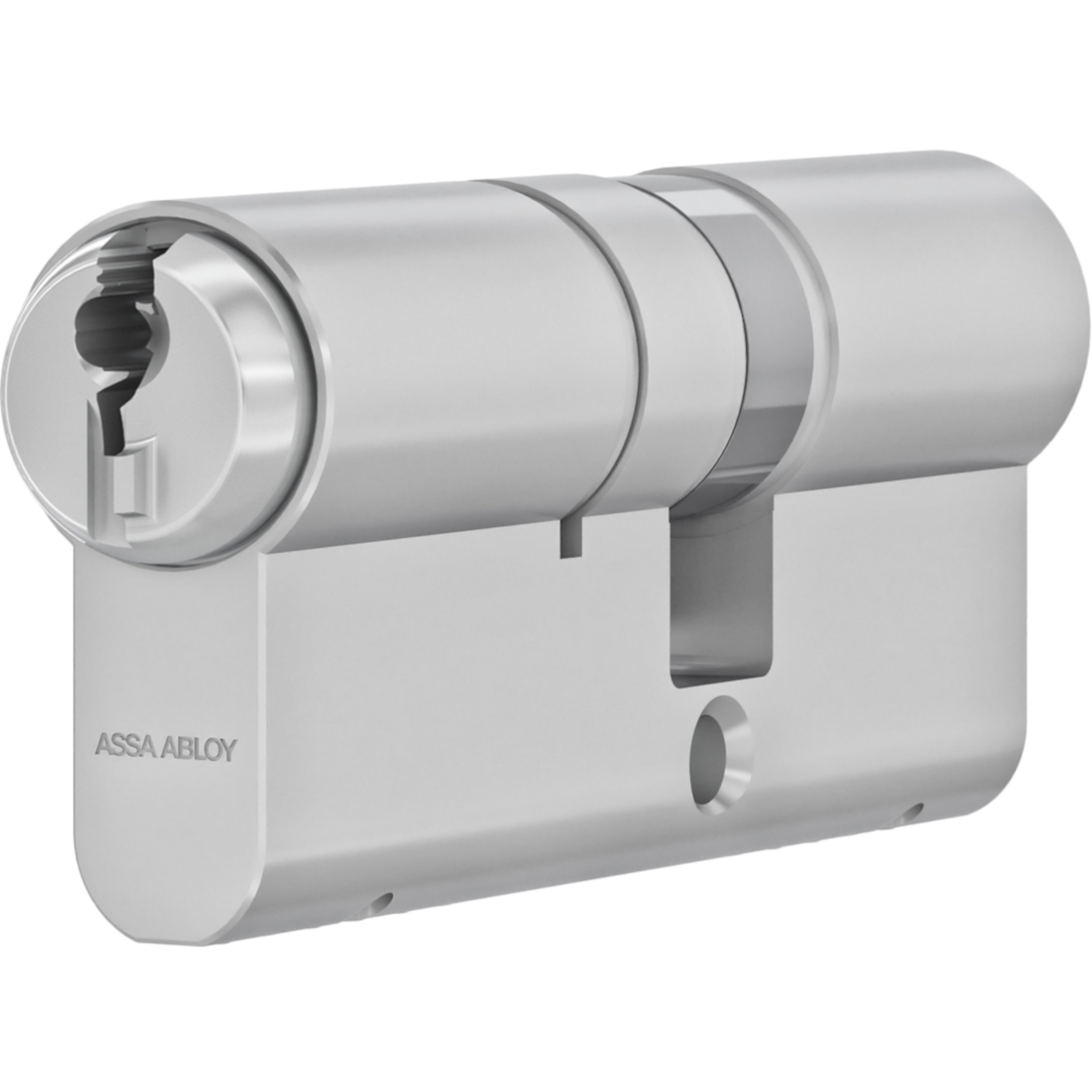

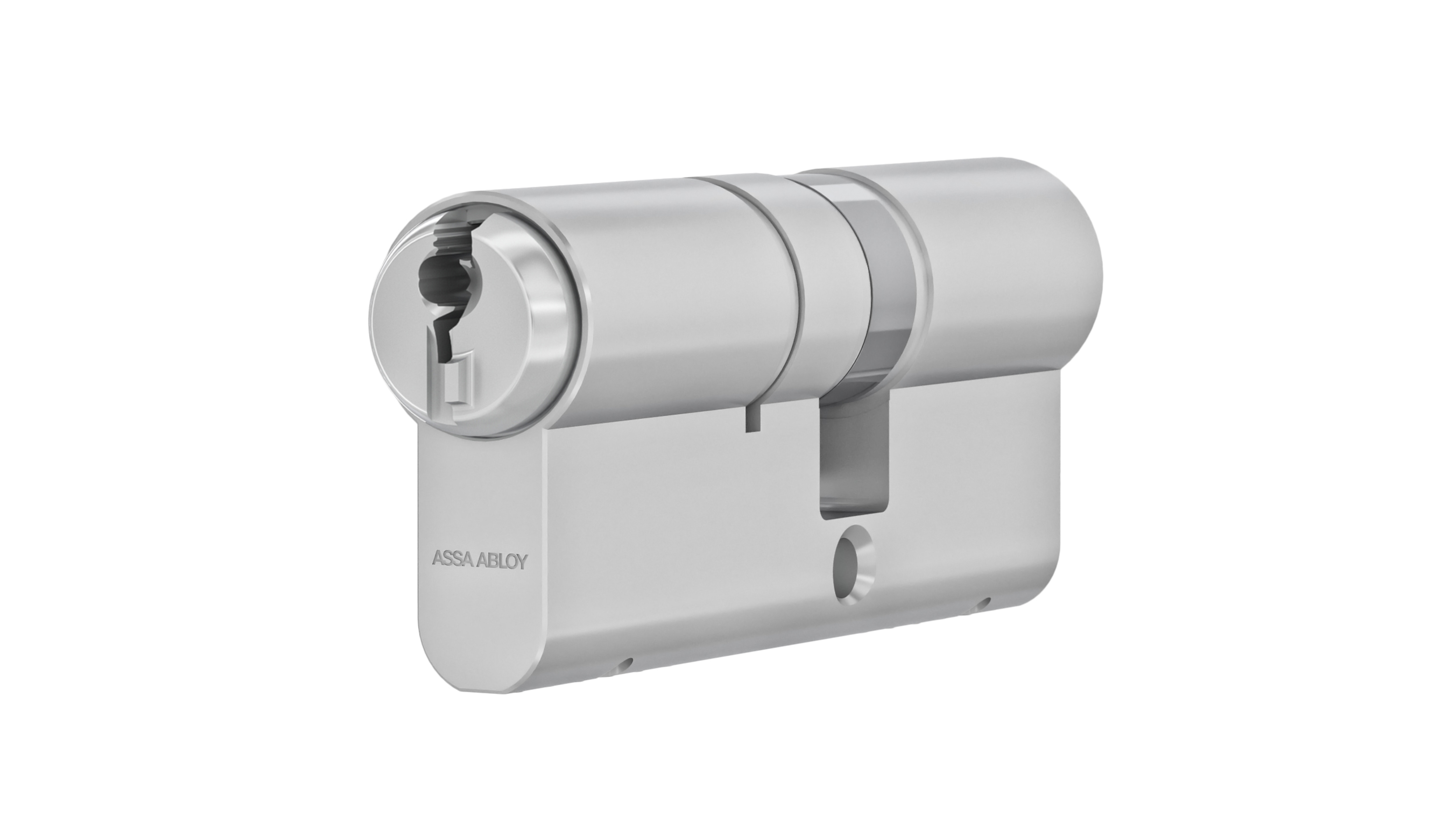

Triton² 5900
The system utilises four unique patented features which guard the key, cylinder, system pin combination, and side blocking element. This provides complete cover and protection from illegal key duplication which ensures security is never compromised.
The distinctive 6 pin double-tipped keying system utilises a 12 coded key cut along with a bespoke 4 pin spring-loaded side coding element.
Configured specifically to each system which combined offers an unrivaled 1.5 billion combinations, ensuring every master key system produced is unique, making it perfect for extremely large scale project applications or where security is of the utmost priority.
The bespoke 4 pin spring-loaded side coding element also acts as an additional blocking element and the undercut key profile protects against 3D key copying processes. Ultimately providing multiple levels of defense against known forms of attack and key duplication.
• Every master key system is guaranteed to be unique offering pure exclusivity for its users
• Ideal for extremely large scale master keying requirements or where security is of the upmost priority
Patent protection 2036
No. of pins 6 pins with bespoke 4 pin side pin combination
System type Serrated / sawn key
Keying options Master keyed only
Number of keys per cylinder Master keyed supplied without keys
Key thickness/material 3mm / Nickel silver
Extended key neck No
Paracentric key profile Yes
System pin material NS Key combinations 1.5 billion
Durability 500,000 cycles (accelerated test)
Drill protection 5 minutes drilling resistance
Plug pull protection 15kN pulling resistance
Anti-pick features Yes
Anti-bump features Yes
Corrosion resistance 240 hours
Similar products
P600
A robust, high-security cylinder with secure patent protection until 2026.
Tested to the highest demands of EN 1303:2015, the P600 range has innovative technology at its core. Thanks to precision engineering and cross-function compatibility, the platform is unrivaled in its class.
Based on a new cutting-edge pin technology, the paracentric key profile, and elongated key neck allows the use of the system in conjunction with security accessories on Euro profile cylinders.
The distinctive 6 pin double-tipped keying system utilises a 12 coded key cut for excellent master keying capability, suited for medium to large scale project applications such as healthcare, education, and local government applications.
The durable nickel silver pin technology ensures smooth operation and years of reliable use in the toughest of environments.
• Secure patent protection to 2026
• Prevents illegal duplication of keys, key blanks and cylinder systems
• Meets the requirements of EN 1303:2015 Grade 6/D and SSF 3522, Class 3 and 5
• Innovative double tipped pins with enhanced anti-pick and bump protection for increased security and resistance when in use
• 170,000 keying combinations for medium to large master keying requirements
• Paracentric keyway for enhanced anti-pick and manipulation features
• Extended key neck for use with security hardware
Patent protection - 2026
No. of pins - 6 pins
System type - Serrated / sawn key
Keying options - Master keyed, to pass or differ
Number of keys per cylinder - Master keyed supplied with 2 keys/Standard differ supplied with 2 keys
Key thickness/material - 3mm / Nickel silver
Extended key neck - Yes
Paracentric key profile - Yes
System pin material - Nickel silver
Key combinations - 170,000
Durability - 100,000 cycles
Drill protection - 5 minutes drilling resistance
Plug pull protection - 15kN pulling resistance
Anti-pick features - Yes
Anti-bump features - Yes
Corrosion resistance - 240 hours
Certification
Certified in compliance with EN 1303:2015, EN 1634-1:2000, SSF 3522, Class 3 and 5 (SBSC) and fire tested to Metal FD240
Triton² 3900
With superior patent protection up to 2036 and tested to the highest demands of EN 1303:2105, the Triton2 3900 cylinder system is built to last in the harshest of environments.
