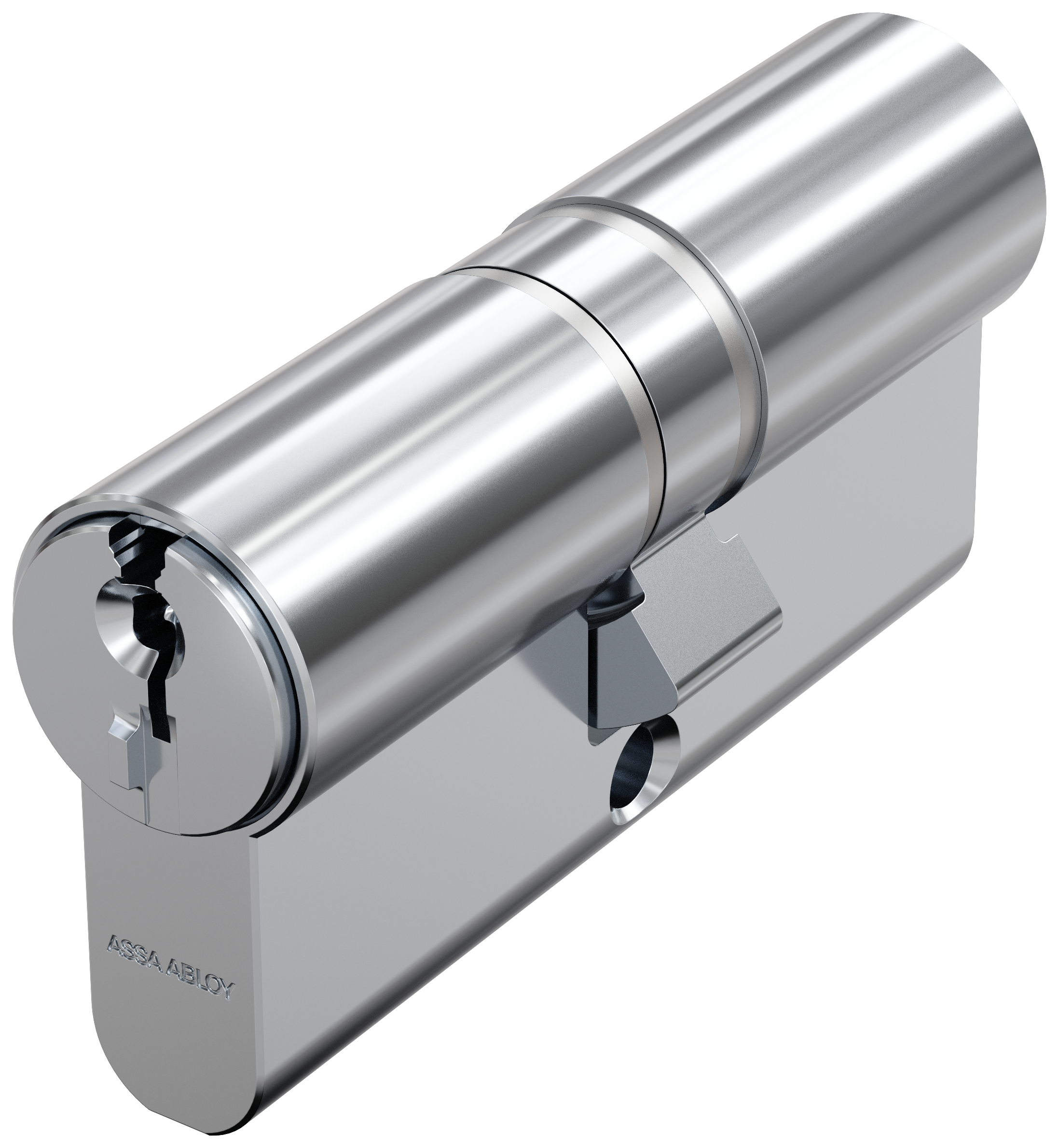

P600 +

A robust, high-security cylinder with secure patent protection until 2036.

Tested to the highest demands of EN 1303:2015, the P600+ range has innovative technology at its core. Thanks to precision engineering and cross-function compatibility, the platform is unrivalled in its class.

Based on a new cutting-edge pin technology, the paracentric key profile, and elongated key neck allows the use of the system in conjunction with security accessories on Euro profile cylinders.

The distinctive 6 pin double-tipped keying system utilises a 12 coded key cut for excellent master keying capability, suited for medium to large scale project applications such as healthcare, education, and local government applications.

The durable nickel silver pin technology ensures smooth operation and years of reliable use in the toughest of environments.

• Secure patent protection to 2036

• Prevents illegal duplication of keys, key blanks and cylinder systems

• Meets the requirements of EN 1303:2015 Grade 6/D and SSF 3522, Class 3 and 5

• Innovative double tipped pins with enhanced anti-pick and bump protection for increased security and resistance when in use

• 170,000 keying combinations for medium to large master keying requirements

• Paracentric keyway for enhanced anti-pick and manipulation features

• Extended key neck for use with security hardware

No. of pins - 6 pins

System type - Serrated / sawn key

Keying options - Master keyed, to pass or differ

Number of keys per cylinder - Master keyed supplied with 2 keys/Standard differ supplied with 2 keys

Key thickness/material - 3mm / Nickel silver

Extended key neck - Yes

Paracentric key profile - Yes

System pin material - Nickel silver

Key combinations - 170,000

Durability - 100,000 cycles

Drill protection - 5 minutes drilling resistance

Plug pull protection - 15kN pulling resistance

Anti-pick features - Yes

Anti-bump features - Yes

Corrosion resistance - 240 hours

Certification

Certified in compliance with EN 1303:2015, EN 1634-1:2000, SSF 3522, Class 3 and 5 (SBSC) and fire tested to Metal FD240
