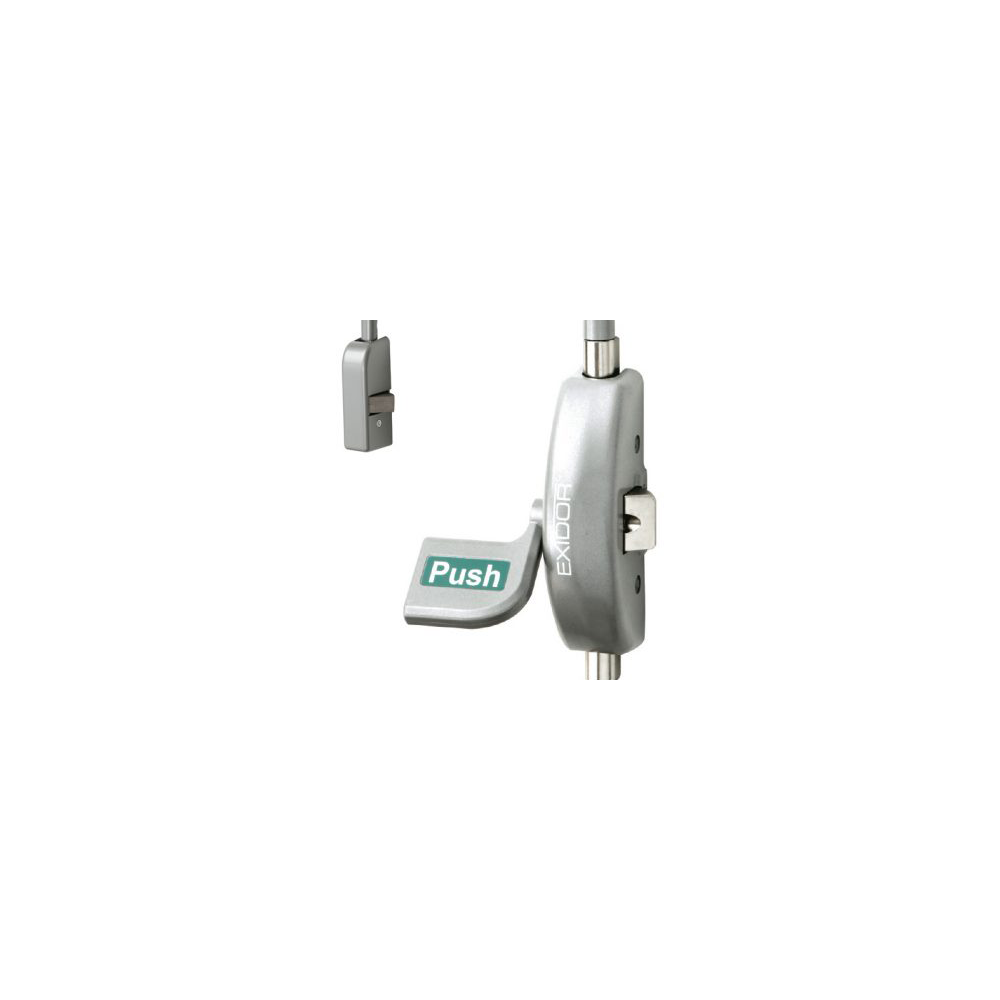

Exidor 523-P push pad with 3 point locking
Unit type: Emergency unit
Activation: Push pad
Door type: Single doorset, Rebated double doorset, active leaf
Door opening: Outward
Projection: 92mm from door face
Mounting method: Surface-mounted pad
No. of locking points: 3
Bolt style: 523-P horizontal Pullman latches
Durability: 200,000 cycles
Max door width: 1220mm
Max door mass: Up to 200kg
Operation: Pushing the pad down into door face retracts the bolts/latches. Releasing the pad returns the latches to the rest position.
Finish: SIL or SSE (other finishes on request)
Accessories: See panic hardware accessory section for range of alternative keeps
Suitable for fire doors: Timber FD120, metal FD240
