Guide rail door closers double-leaf
Products

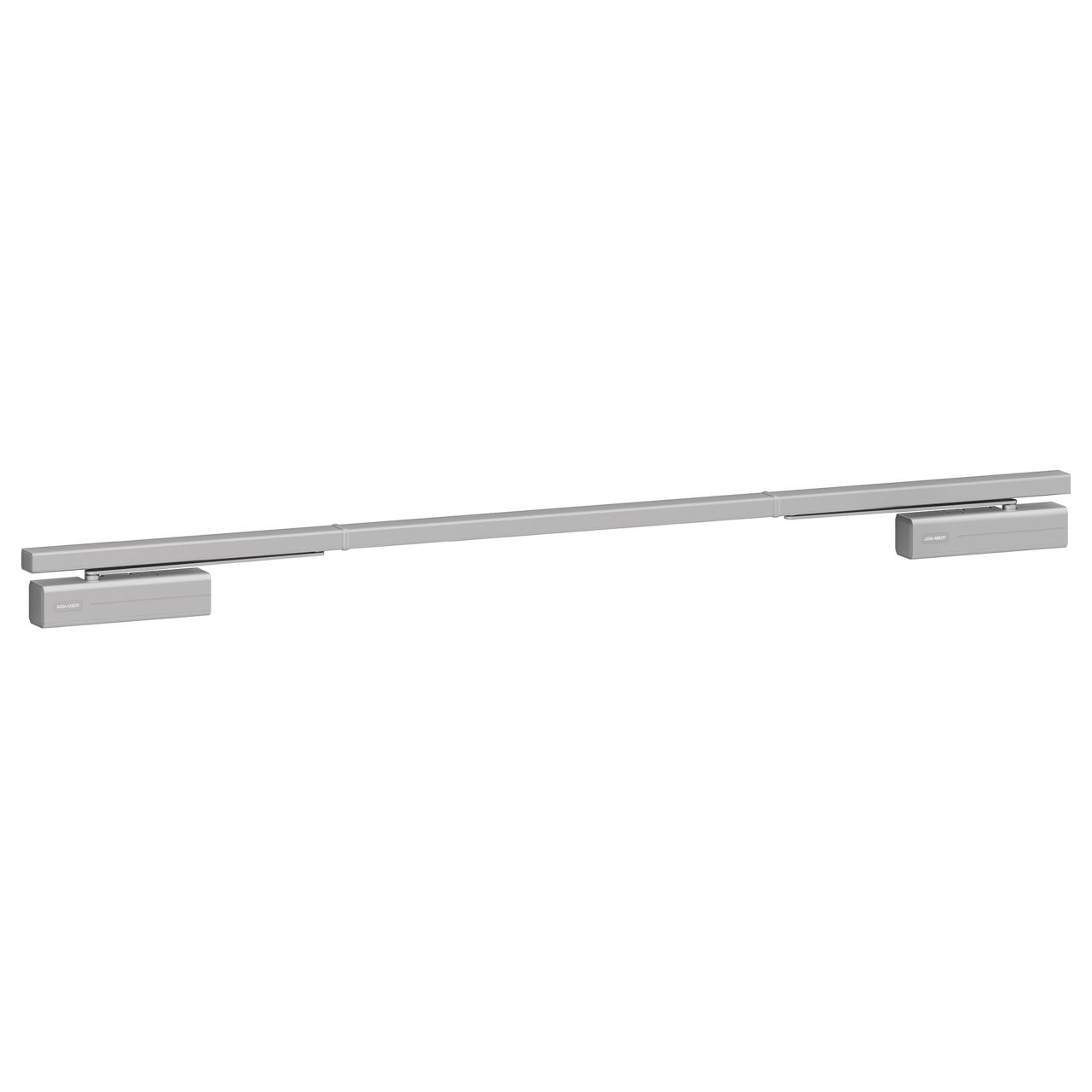

G-CO guide rail for DC700 door closer
For double-leaf doors, with mechanical door coordinator, hinge side- ASSA ABLOY
G-CO guide rail for DC700 door closer

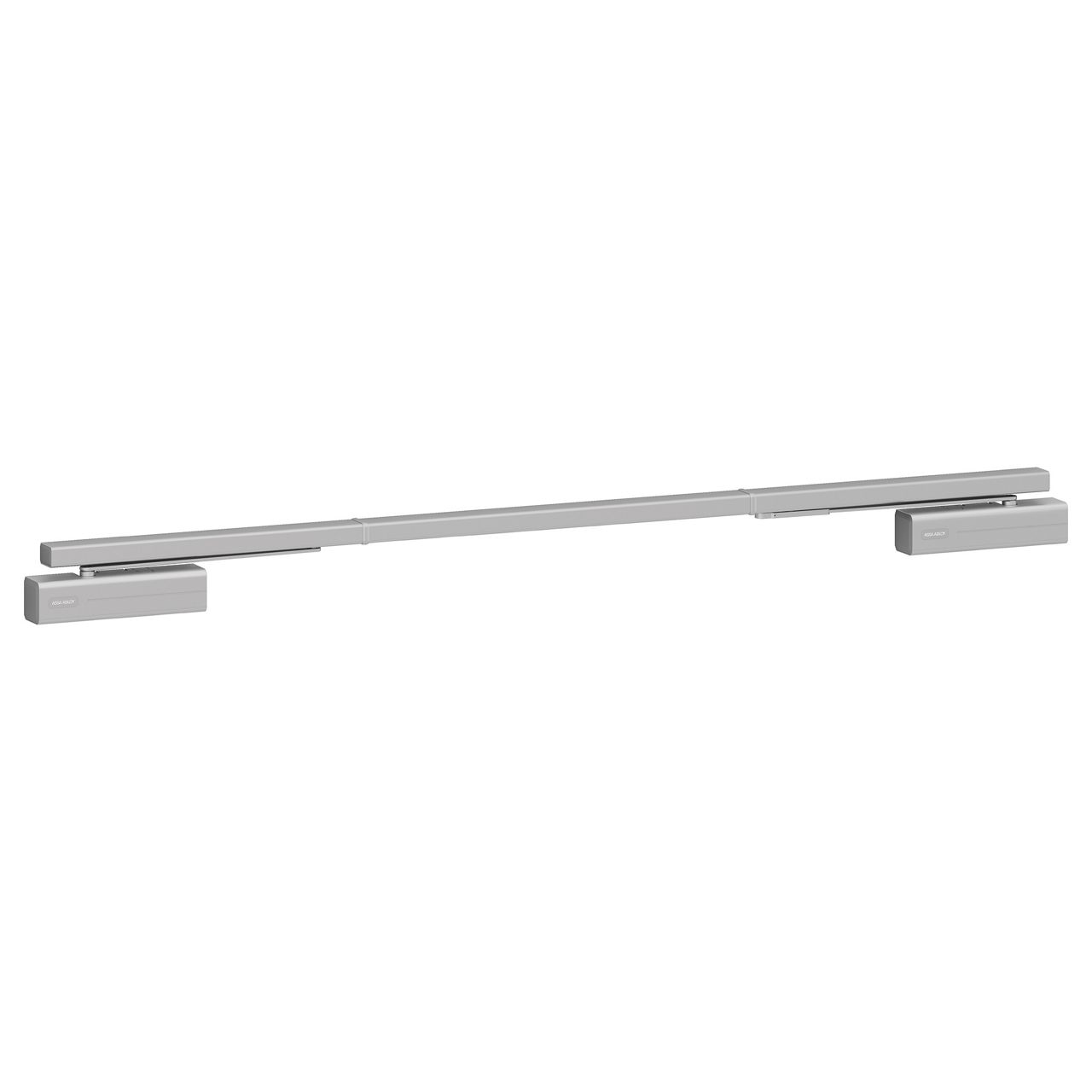

For double-leaf doors, with mechanical door coordinator, hinge side G-CO-CE guide rail for DC700 door closer
For double-leaf doors, with mechanical door coordinator and electromechanical hold-open device, non-hinge side- ASSA ABLOY
G-CO-CM guide rail for DC700 Close-Motion door closer
For double-leaf doors, with mechanical door coordinator and integrated Close-Motion control curve, hinge side G-CO-CS guide rail for DC700 door closer
For double-leaf doors, with mechanical door coordinator, electromechanical hold open device and smoke detector, non-hinge sideG-CO-E guide rail for DC700 door closer
For double-leaf doors, with mechanical door coordinator and electromechanical hold open device, hinge sideG-CO-FM guide rail for DC700G-FM free-swing door closer
Door closer with Cam-Motion® technology with electro-mechanical hold open device, smoke detector and integrated mechanical door coordinator, non-hinge side
Product description
- Door closer with Cam-Motion® technology with electro-mechanical hold-open device, smoke detector and integrated mechanical door coordinator for double leaf doors, DIBt approval Z-6.500-2364
- DIBt approval Z-6.500-2364
- Mechanical door coordinator in continuous guide rail
- Smoke switch with contamination indicator and alarm threshold monitoring
- Integrated 230 V power supply
- All components fully integrated into continuous guide rail
- Convenient opening of the door with with rapidly decreasing opening torque of the door closer
- Suitable for fire and smoke protection doors with a hinge distance between 1430 mm and 2500 mm
Overview of Advantages
- Door coordinator based on wedge system
- Regular mounting on non-hinge side, can be used for left and right-handed doors
- Optical smoke detector after scattered light principle
- Status displayed on LED: operational mode, alarm, maintenance
- Integrated potential-free alarm relay
- Can be activated by a fire alarm system
- Connectivity for manual release buttons and ceiling smoke detectors
- Electro-mechanical hold-open device
- Continuously adjustable holding force
- Traversable arrestor point, continuously adjustable between approx. 80°-110°
- Flush or surface installation of wiring possible, 230 V AC
- For doors with panic function in conjunction with the driving flap A102
- Symmetric and asymmetric door partition possible, minimum width of the inactive leaf = 400 mm
- Door opening angle up to approx. 120°, maximum opening angle limited
- Guide rail height adjustable by 2 mm for tolerance
- Axis continuously height adjustable up to 14 mm
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Variable adjustable closing force
- Thermodynamic valves for consistent performance
- Effective backcheck and latching speed range adjustable
- Standard colours: silver EV1, white similar to RAL9016, stainless steel design
- Customised finishes available on request
Note
- Guide rail G-CO-CS
- Facts for door closer see DC700

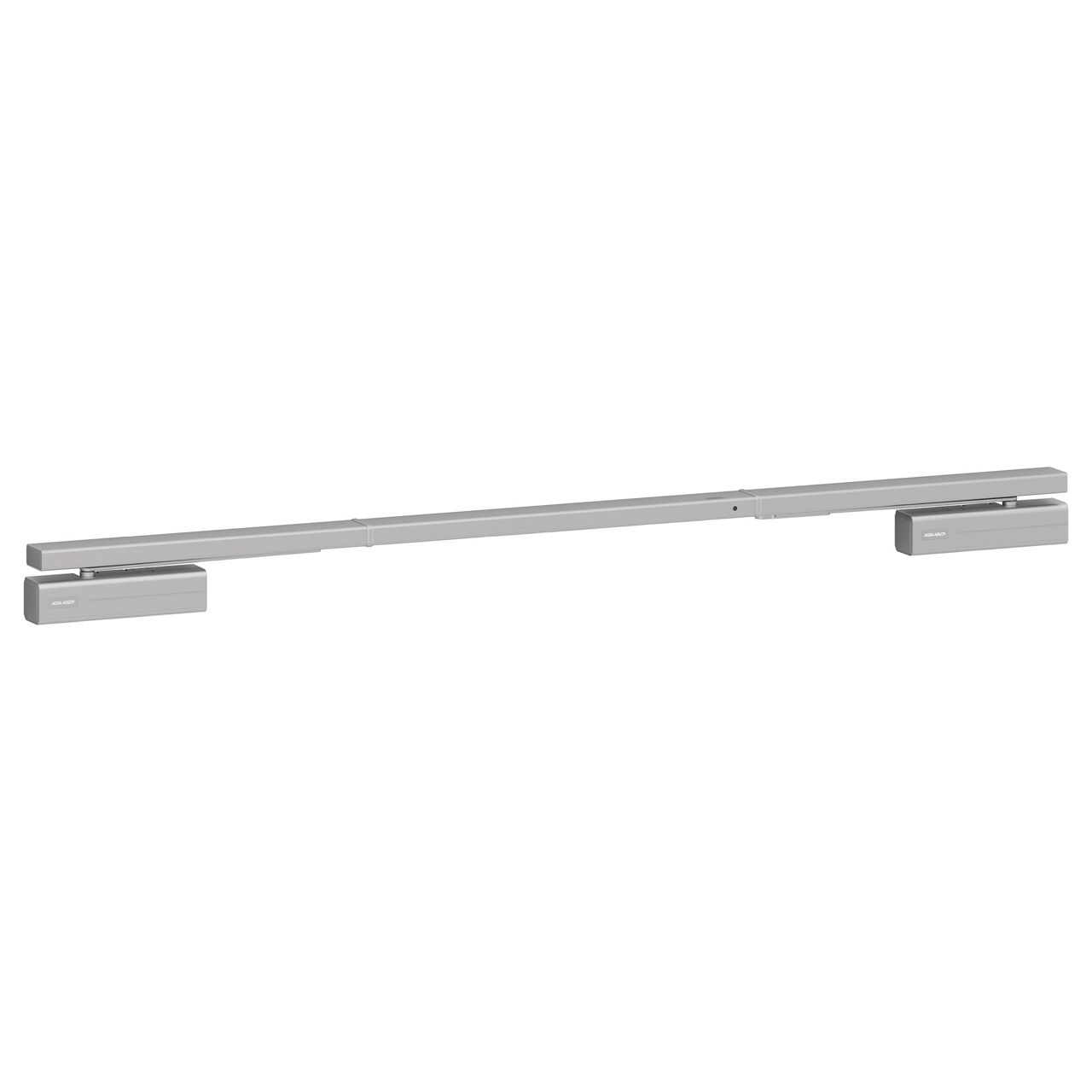

G-CO-FMS guide rail for DC700G-FM free-swing door closer

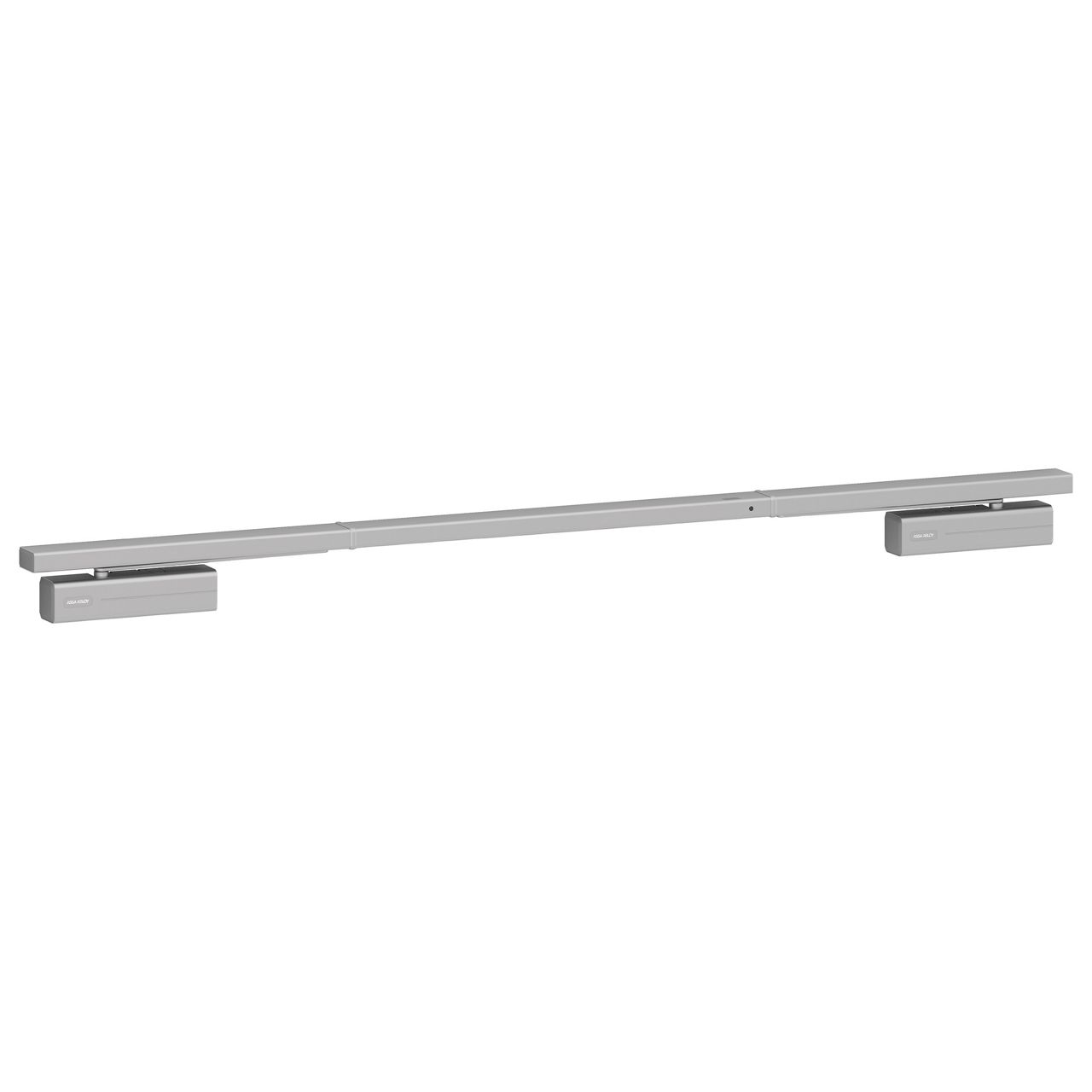

Free-Motion® door closer system for double-leaf doors with free-swing function on the active leaf, starting from a door release angle of 1°, Cam-Motion® door closer (DC700) on the inactive leafG-CO-S guide rail for DC700 door closer

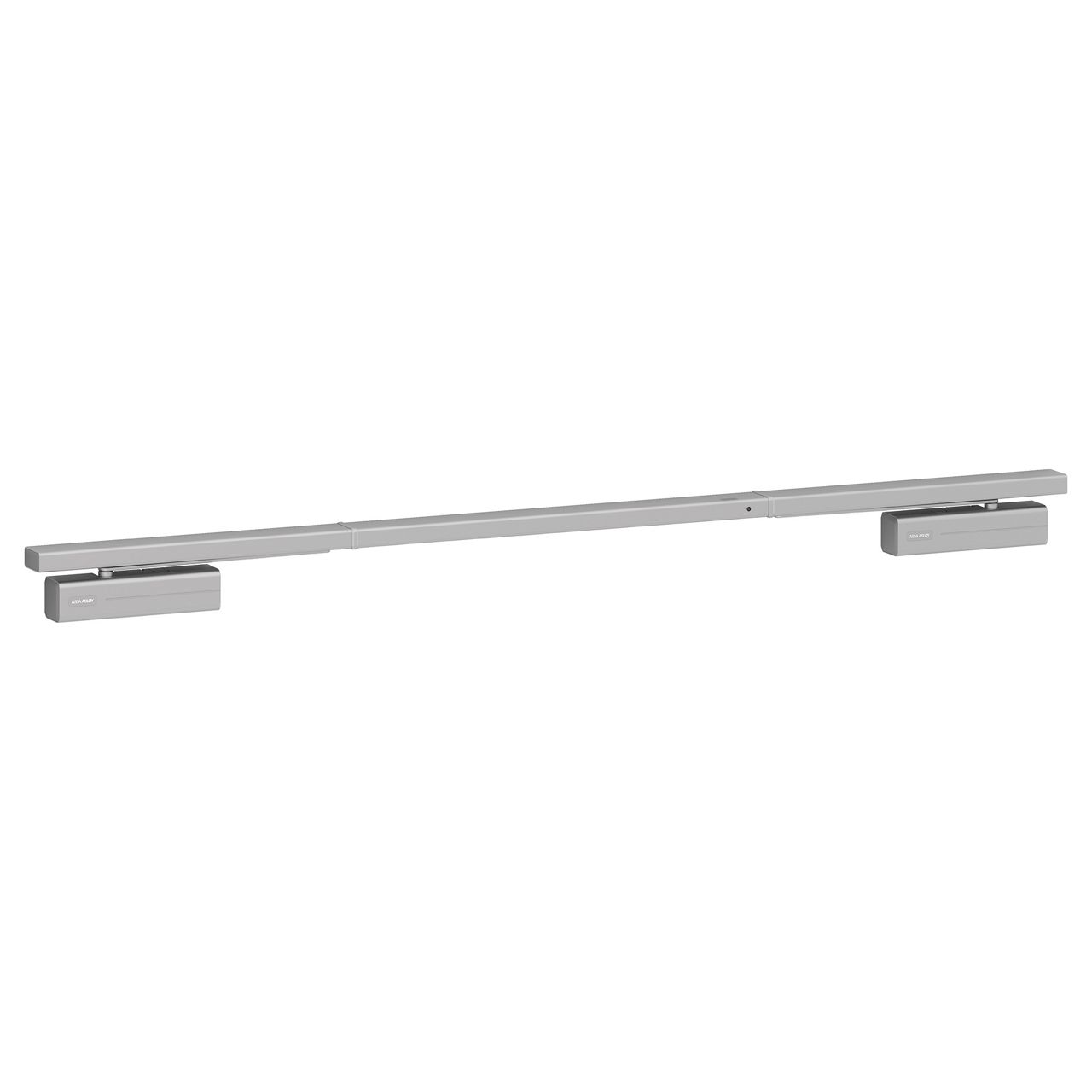

For double-leaf doors, with mechanical door coordinator, electromechanical hold open device and smoke detector, hinge sideG-CO-S-M guide rail for DC700 door closer
For double-leaf doors, with mechanical door coordinator and smoke detector, hinge side
