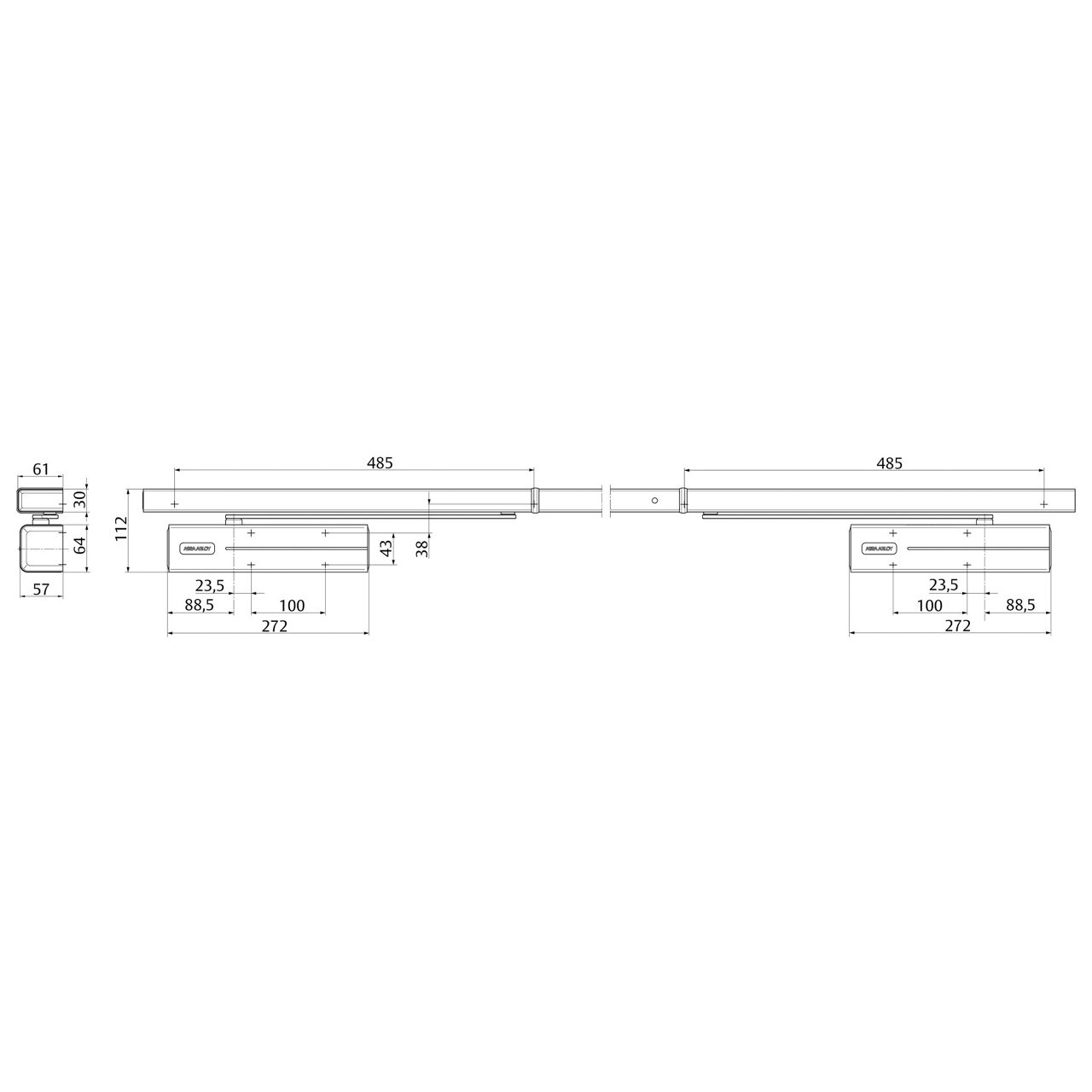

G-CO-S-M guide rail for DC700 door closer

Door closer with Cam-Motion® technology, smoke detector and integrated mechanical door coordinator, hold-open device via electric holding magnet from the 830 series

Product description

  • Door closer with Cam-Motion® technology, smoke detector and integrated mechanical door coordinator, hold-open device via electric holding magnet from the 830 series
  • General construction type approval Z-6.500-2364
  • Certified in compliance with EN 1155/1158, size 3-6
  • Mechanical door coordinator in continuous guide rail
  • Smoke switch with contamination indicator and alarm threshold monitoring
  • Integrated 230 V power supply
  • All components fully integrated into continuous guide rail
  • Barrier-free in accordance with DIN 18040 for door width up to 1250mm
  • Meets the requirements of DIN SPEC 1104 / CEN15894
  • Suitable for fire and smoke protection doors with a hinge distance between 1400 and 2500 mm (3200 mm)

Overview of Advantages

  • Door coordinator based on wedge system
  • Optical smoke detector after scattered light principle
  • Status displayed on LED: operational mode, alarm, maintenance
  • Integrated potential-free alarm relay
  • Can be activated by a fire alarm system
  • Connectivity for manual release buttons and ceiling smoke detectors
  • Hold open via ASSA ABLOY 830 series electric holding magnets
  • Adhesive force depending on the selection of the 830 series electromagnet
  • Flush or surface installation of wiring possible, 230 V AC
  • Can be used for left and right-handed doors
  • For standard mounting on hinge side
  • Same drilling template as standard guide rails
  • Guide rail height adjustable by 2 mm for tolerance
  • Axis continuously height adjustable up to 14 mm
  • Closing speed, latching speed and backcheck adjustable via front facing regulating valves
  • Variable adjustable closing force
  • Thermodynamic valves for consistent performance
  • Effective backcheck and latching speed range adjustable
  • Standard colours: silver EV1, white similar to RAL9016, stainless steel design
  • Customised finishes available on request

Note

  • Guide rail G-CO-S-M
  • Facts for door closer see DC700
