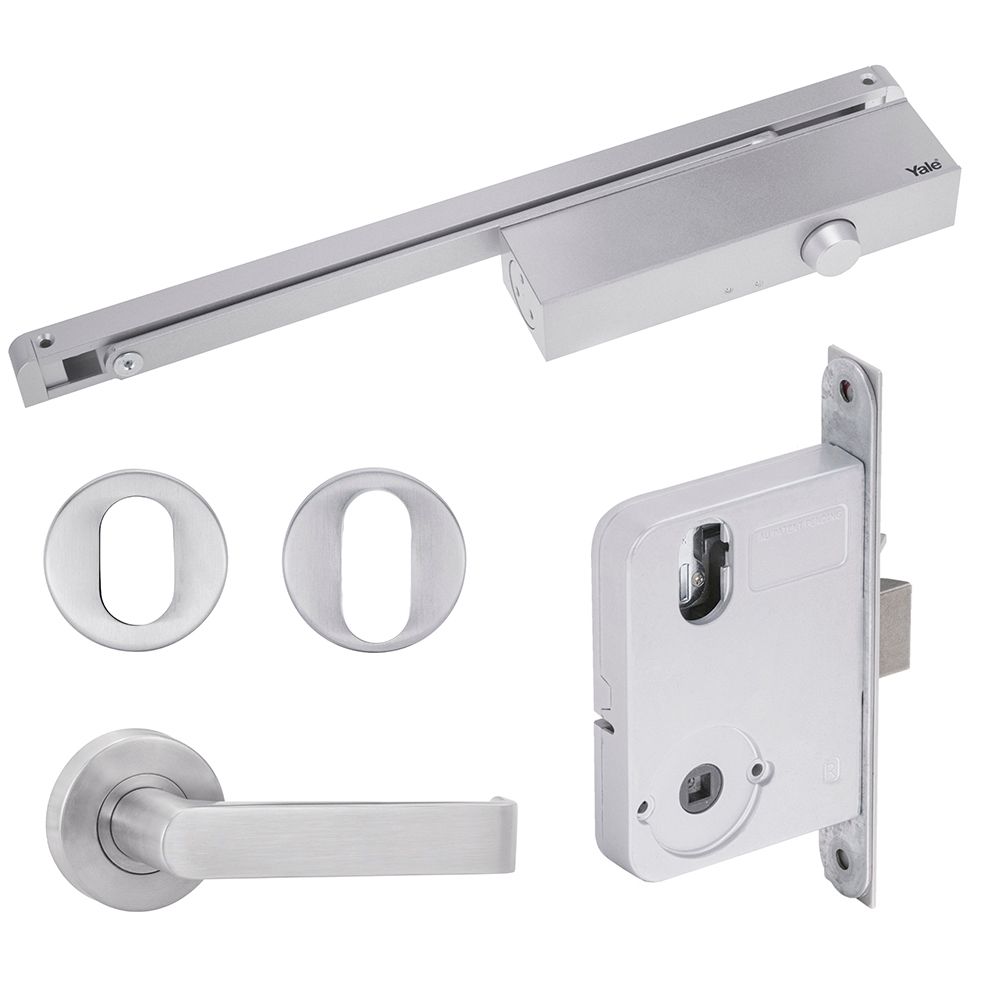

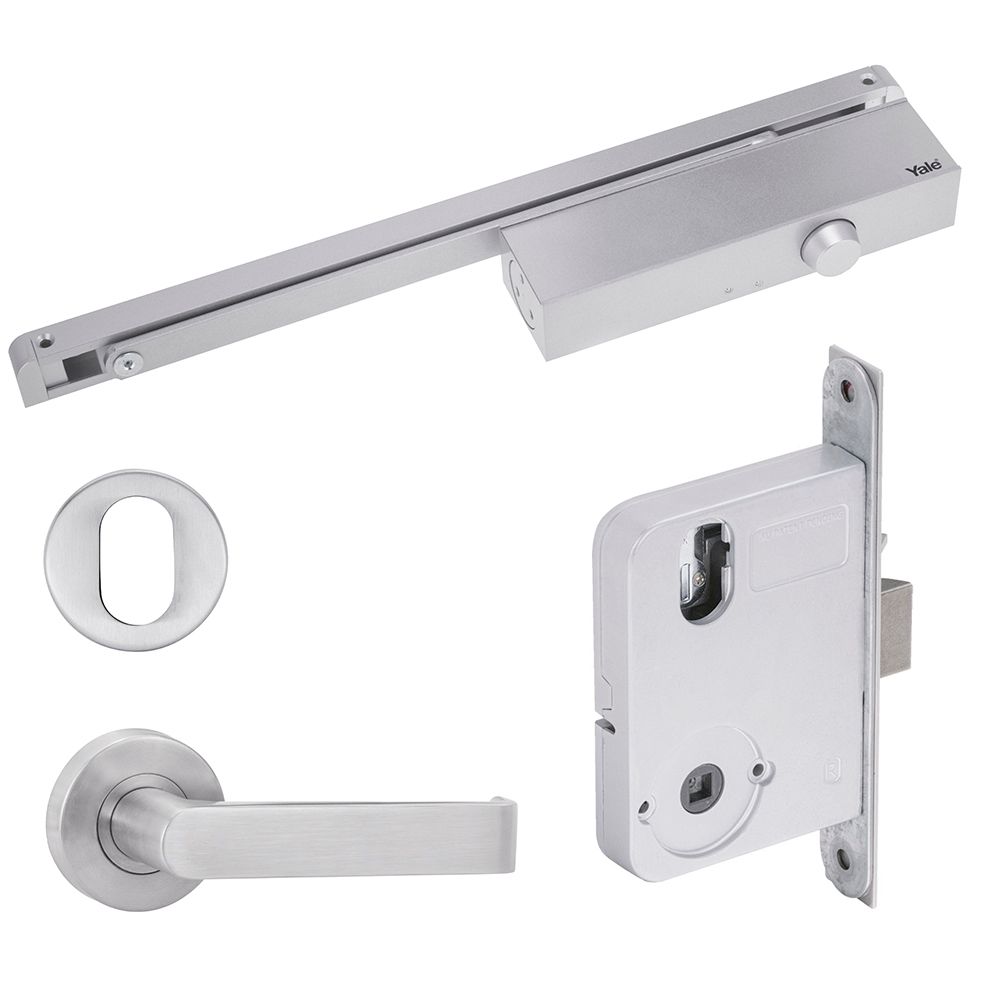

Simplicity Series Door Kits

Simplicity Mortice Lock:

Application
A cylinder mortice lock specifically designed for use in multi-residential apartment entry door applications.

Benefits
Simple lock handing
Uses industry standard door preparation and cylinders for simple installation and keying.

Features and Specifications
The Australian designed Simplicity Series Cylinder Mortice Locks are made from quality materials to meet the durability and strength requirements of apartment entry doors.

Case and Faceplates
High purity zinc alloy material case
Stainless steel faceplates

Backset
60mm backset

Latch Bolts
Latch bolts are made with stainless steel, 15mm in size
Deadlatching is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors,
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing action

Door Clearance
To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The deadlatching will operate up to 5mm.

Security
Conform with Level S7 (Physical Security) Australian Lock Standard (AS-4145.2-2008).

Durability
Conforms with Level D6 (Durability) Australian Lock Standard (AS 4145.2-2008).

Anti-Corrosion
Conform with Level C6 (168 hours) Australian Lock Standard (AS4145.2-2008).

Cylinder
Requires standard Australian oval shaped cylinders.
Functions require the use of different cams and adaptors.

Finishes
Stainless Steel SS

Anti-lockout
Anti-lockout function is achievable anti-lockout adaptor. Sold Separately

Simplicity Series Door Closer:

The Yale Simplicity Door Closer compliments the entire Yale Simplicity suite in offering an appealing design aesthetic as well as providing for the unassuming functionality that is expected in a fire rated door closer.

Application
Ideally suitable for multi-residential projects and supplied only with the Yale Simplicity Kit inclusive of mortice lock and door furniture.
Pull side installation only.
Suitable for doors up to 950mm in width
60kg maximum door weight

Functionality
Backcheck as standard
Independent 2 Stage Valve Adjustment

Materials
Aluminum cast body, high quality steel internal componentry, aluminum slide rail assembly.

Standards
CE Certified Size EN3 (Pull Side Only)
