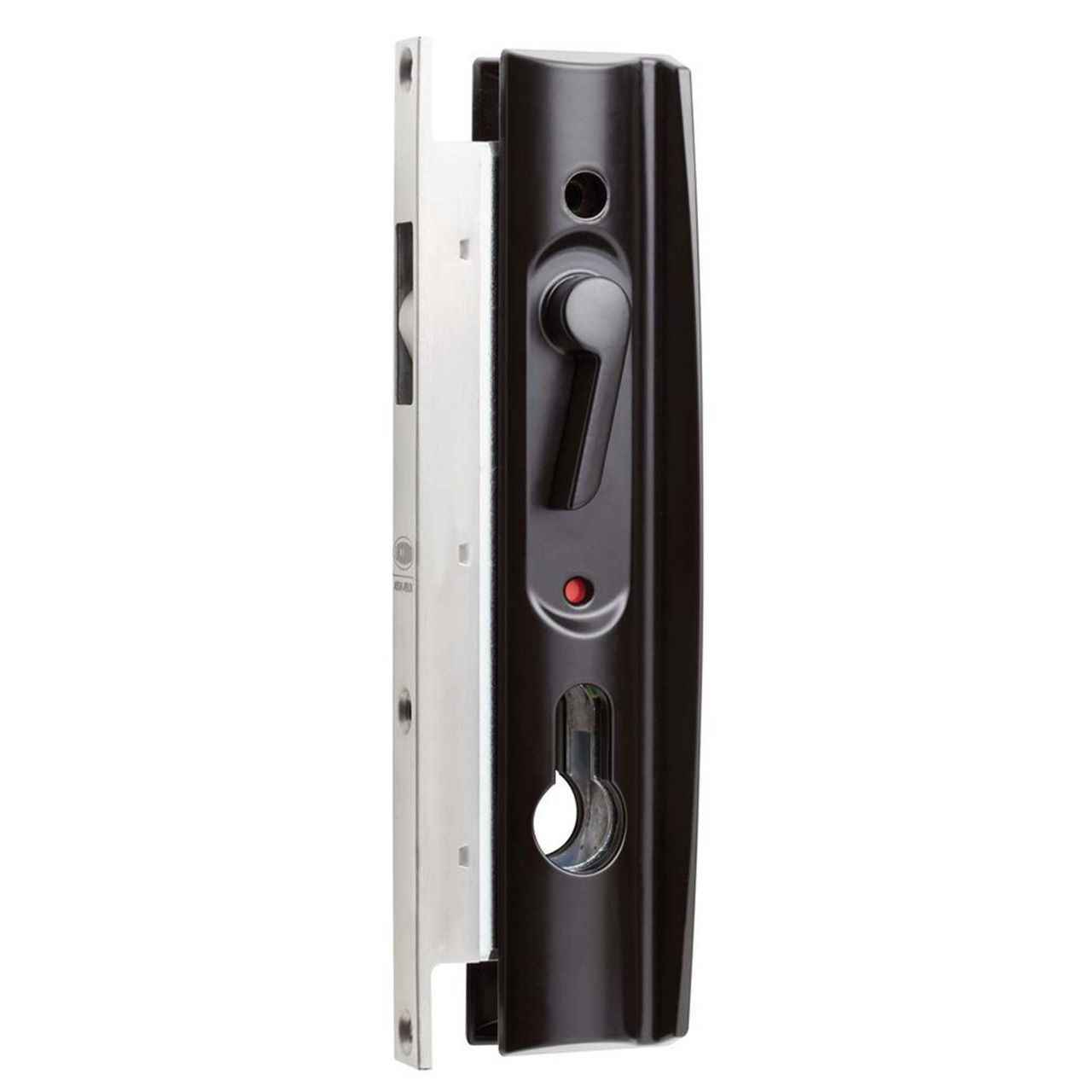

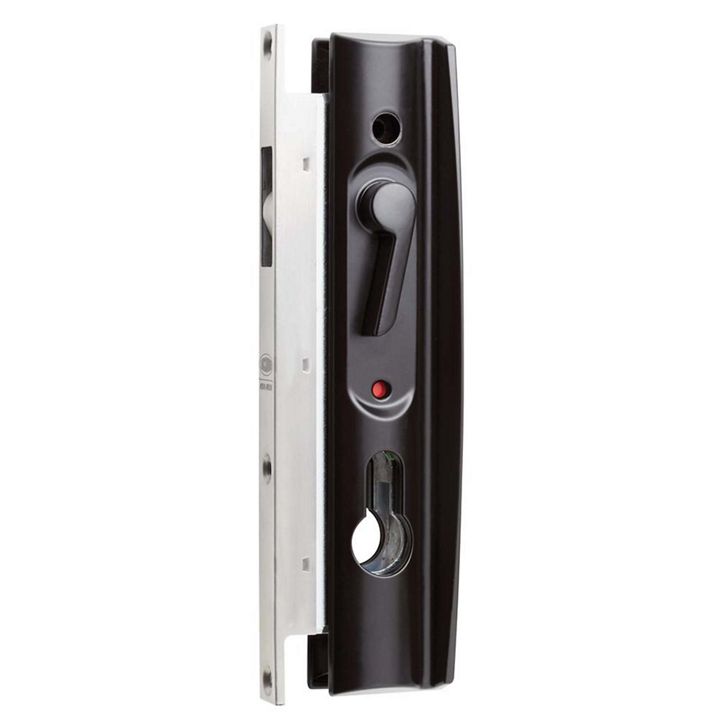

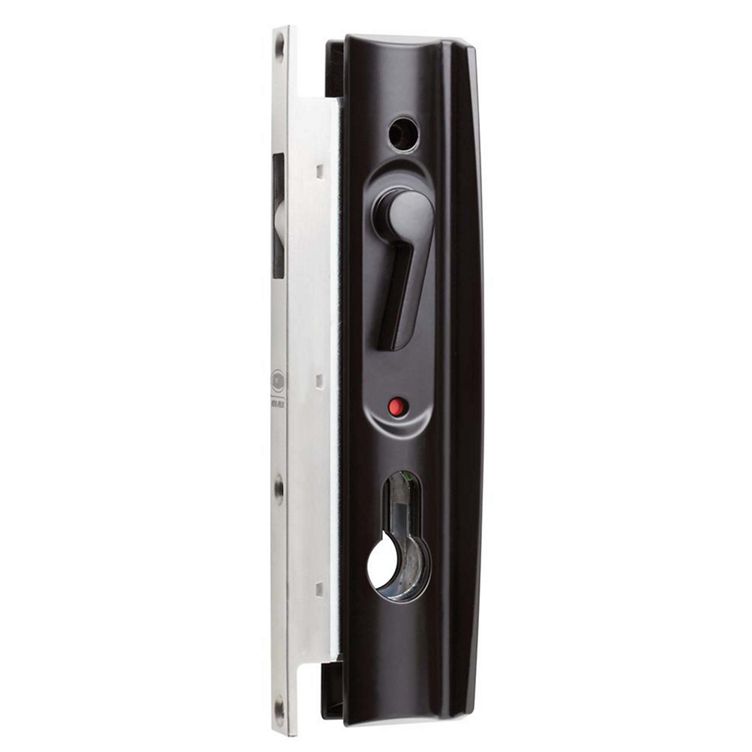

Lockwood 8653 Sliding Door Lock

The Lockwood 8653 Sliding Door Lock has been designed in Australia and manufactured to stringent quality specifications. The range has been tested in accordance with AS4145.2-2008, offering exceptional performance and reliability.

Incorporating Lockwood’s advanced safety and security features, DualSelect® and LockAlert®  the 8653 Sliding Security Door Lock is ideal for use in residential applications.

Features of the 8653 Sliding Security Screen Door Lock

  • 2 stage key locking, offers safety and security for all occupants by giving a choice of selecting privacy lock or deadlock when exiting the home
  • Turning the key to the first selection engages the privacy lock, this offers security from the outside whilst allowing occupants inside to safely exit using the internal lever
  • Turning the key to the second selection engages the deadlock, this provides internal and external security, and requires the key to unlock the door from inside and outside
  • Suits left or right hand closing doors
  • Key locking from both sides
  • Inside snib locking (with key override)
  • Snib only version also available
  • Stainless steel front end plates
  • Self latching with stainless steel parrot beak deadlatch
  • Can only be locked when fully engaged with strike
  • Stainless steel strike available for single point locks
  • Optional 3 point kit available for premium security
  • When 3 point kit is fitted, snib activates/ operates all 3 locking points
  • Available in a range of polyester powdercoat and plated finishes
  • Fits industry standard cut outs/door preparation
  • Retrofits previous Whitco Leichhardt Lock
  • Zinc diecast lock mechanism and furniture
  • Easy installation for both new and retrofit applications
  • Accepts Lockwood Euro profile lazy cam cylinder
  • Suit standard 20mm door thickness
  • Available in display and trade packs


The LockAlert feature added to the 8653 Sliding Security Door Lock range allows you to see if the inside lever is key locked at a glance.

Secure Mode
Locked from both inside and outside.

Safety Mode
Locked from outside and free to exit from inside.

Passage Mode
Free to enter from outside and free to exit from inside.
