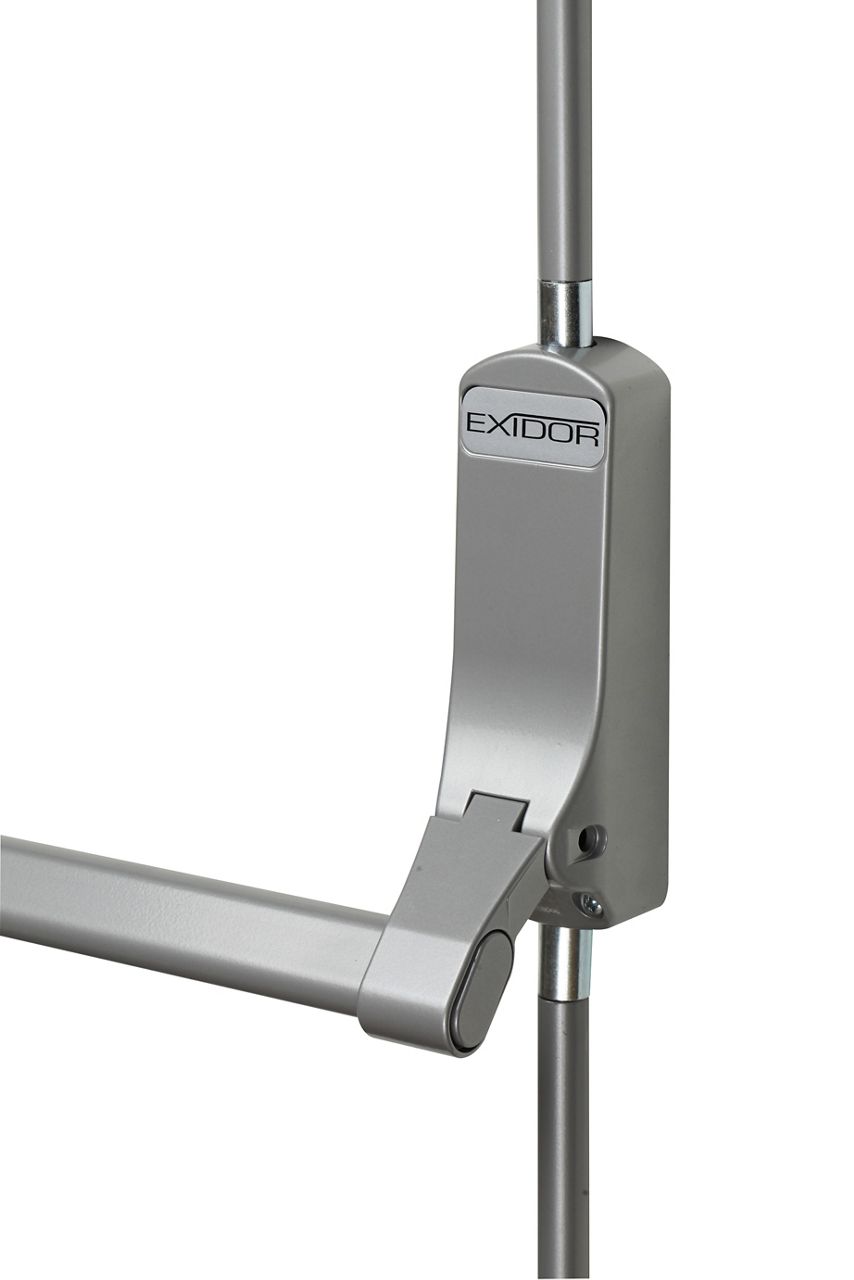

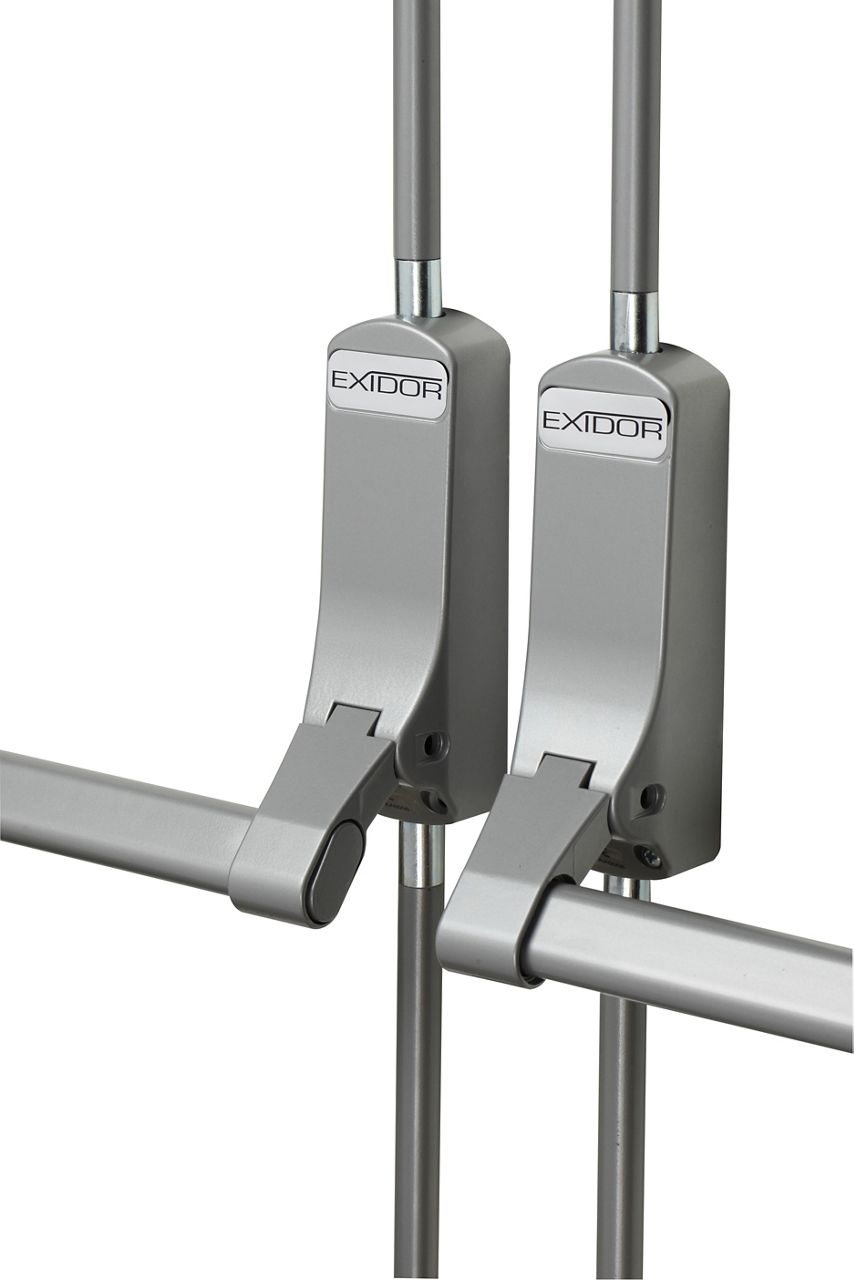

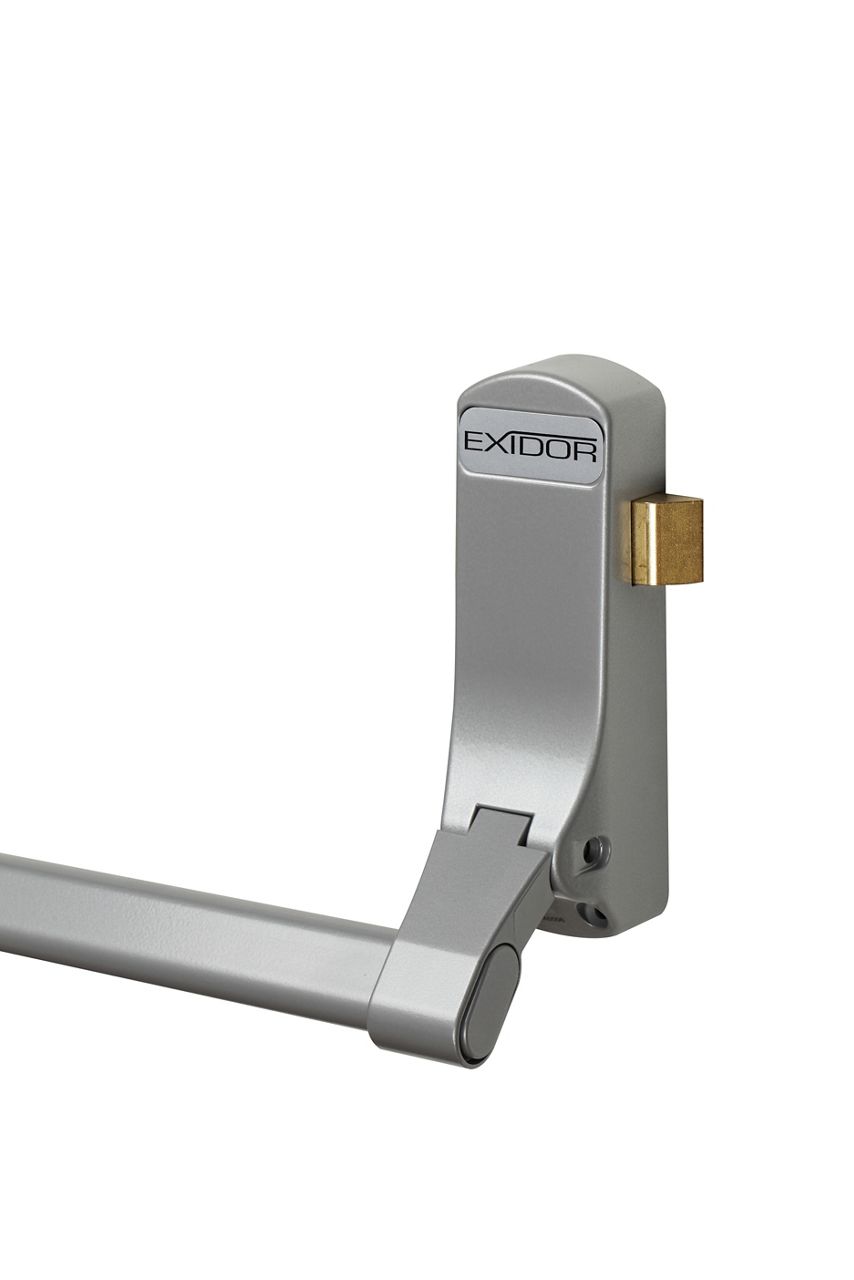

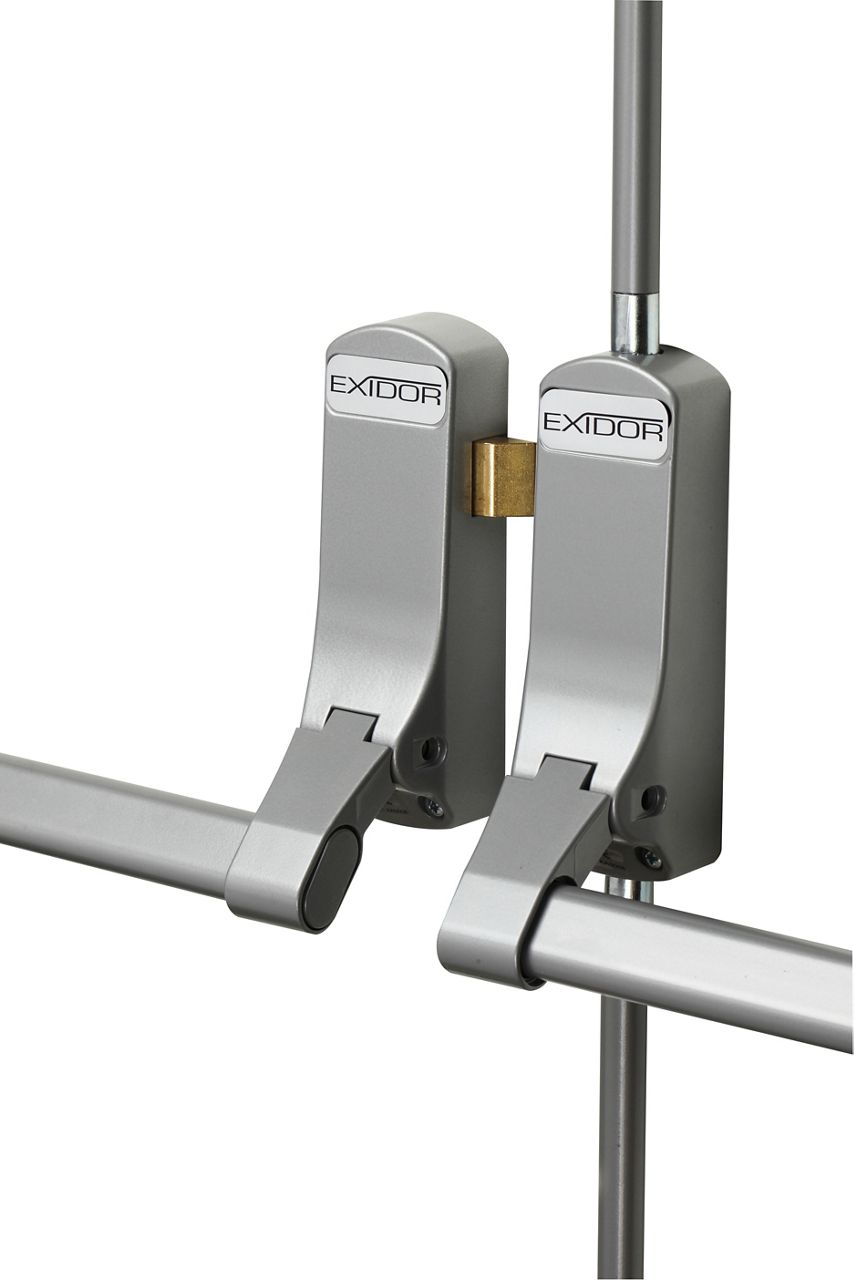

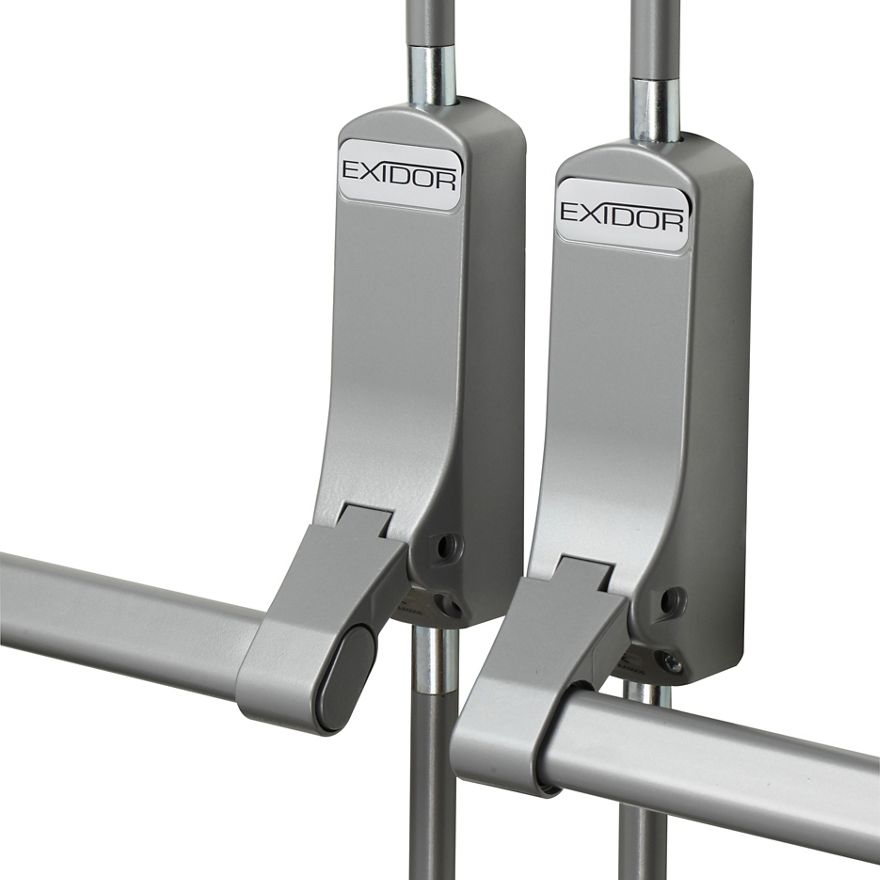

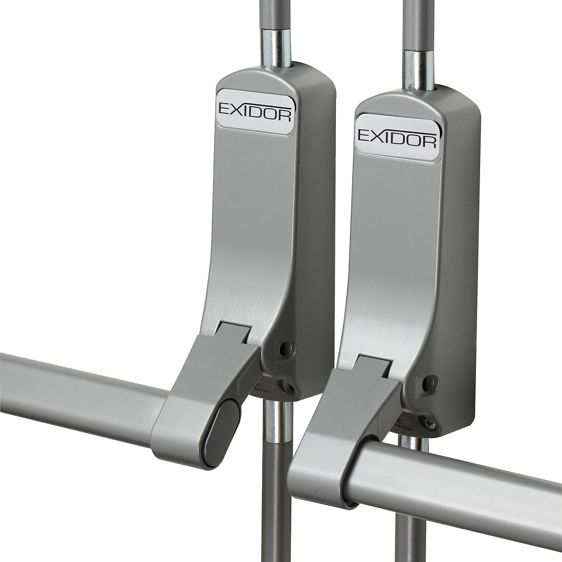

Lockwood Exidor Series Panic Exit Devices

The Lockwood Exidor series panic hardware offers a modern, aesthetically pleasing style giving optimum safety and security.

Features

Push bar activated panic exit device
Available in configurations to suit single and double doors
Fire rated for use on timber and steel doors
Surface mounted
Shoot bolts and latch options available
Suitable for doors up to 1220mm wide and 2440mm high
Tested to 200,000 cycles
Non-handed

Standards and Compliance

Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2015. Fire Resistant Doorsets.
Conforms to the standards as set out in CE EN1125 -2008.

Accessories

Extended Top Shoot Tube

For doors exceeding 2440mm in height, the EXIP0804-SIL Extended Top Shoot Tube is designed as an addition to the vertical rod exit device and can be used in applications of up to 3180mm.

Available in SILVER only.

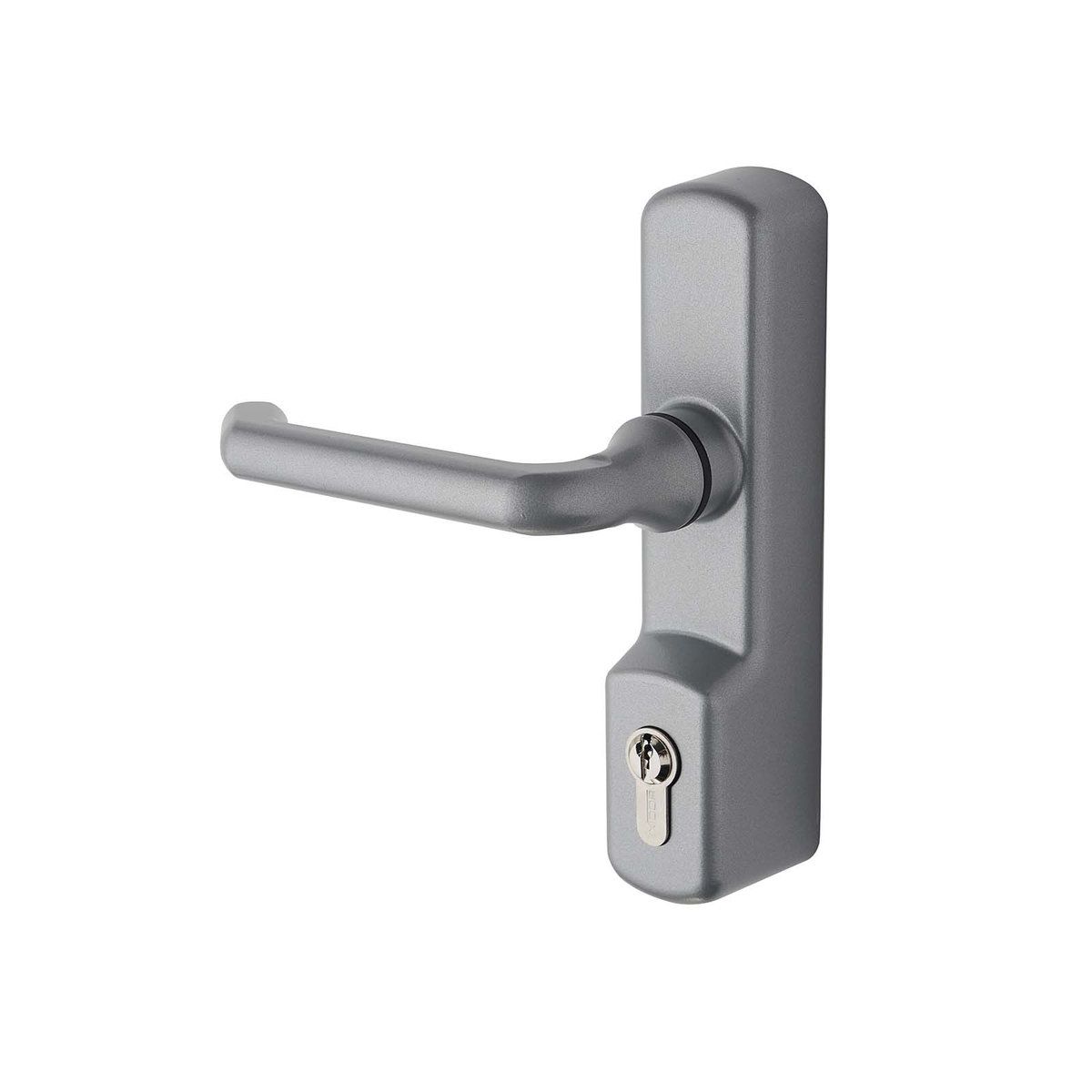

External Lever Trim

The Exidor 325 is an elegant lever operated outside access device. Euro profile cylinder supplied separately to allow flexibility of special keying requirements

Euro Profile Half Cylinder is required (not supplied).

Available in SILVER only.
