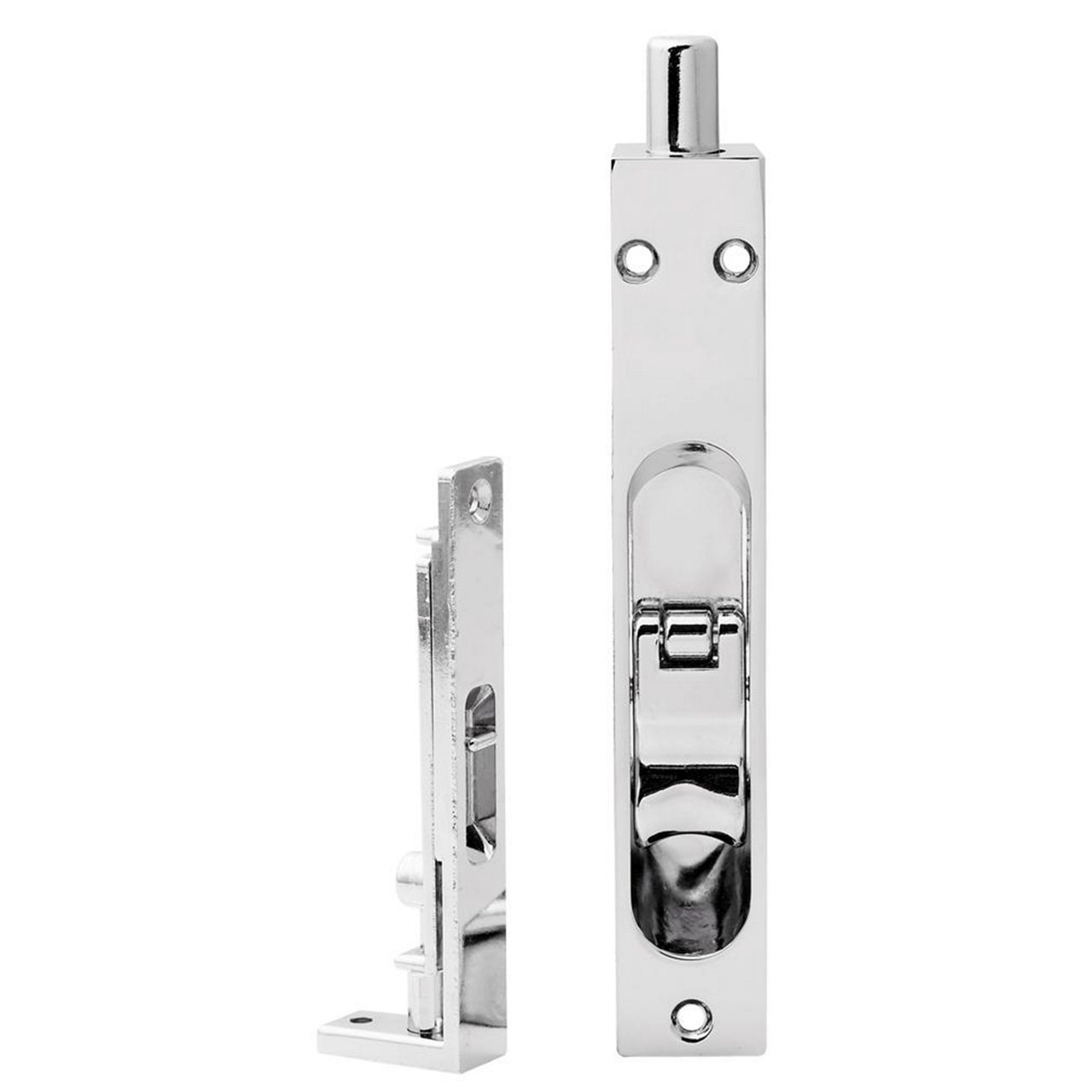

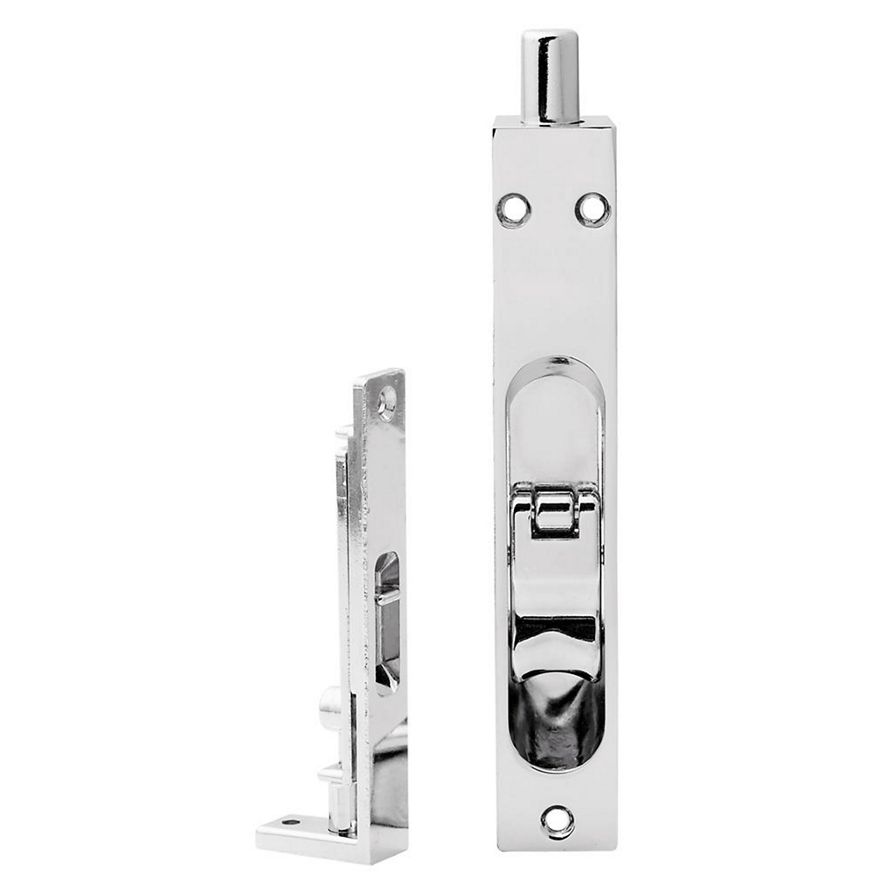

Lockwood Flush Bolts

Materials

Zinc alloy casting.

Packaging

L840, L841 and L842 are individually display packed, complete with fixing screws.
843 supplied in trade pack.

Bolt Throw

L841, L840, 843 Toggle Action, L842 Slide Action.

Application

Designed for timber doors.

Suitablity

• The L842 is a flush mounted bolt incorporating a slide action to throw or withdraw the bolt. Available in 100 mm length
• The L841 and L840 are flush mounted bolts incorporating a toggle action to throw or withdraw the bolt. Available in 150 or 200 mm lengths
• 843 mm body with bolt extending to 600 mm overall, using a 6.5 mm diameter steel threaded rod, brass tip and lock nuts
• Visible fixing

Available in the following finishes

• Satin Chrome (SC)
• Chrome Plate (CP)*
• Polished Brass (PB)

*excludes 843

Dimensions
