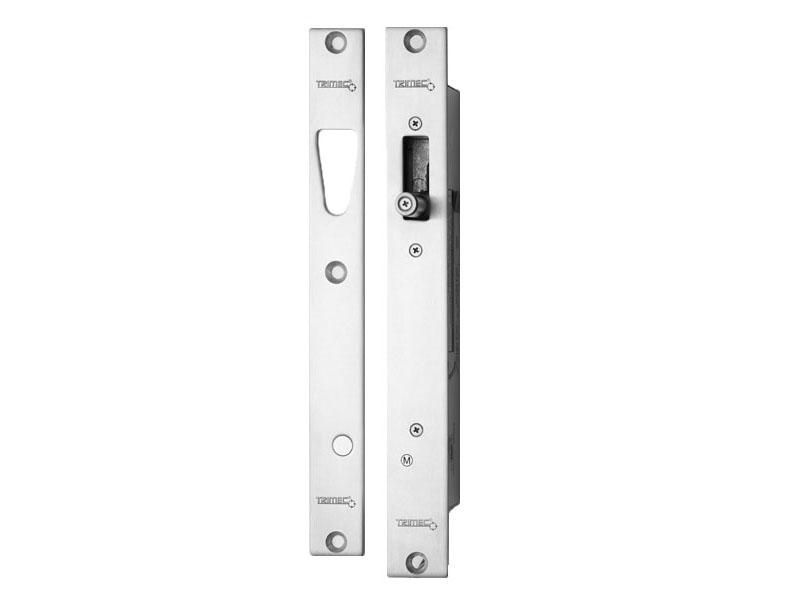

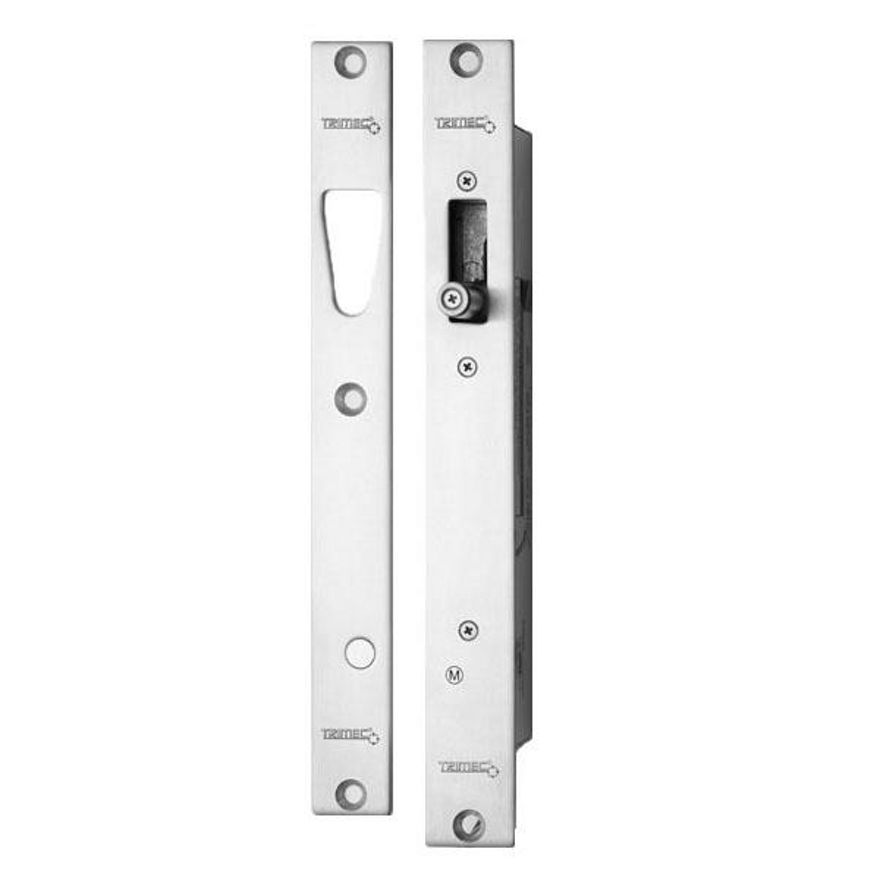

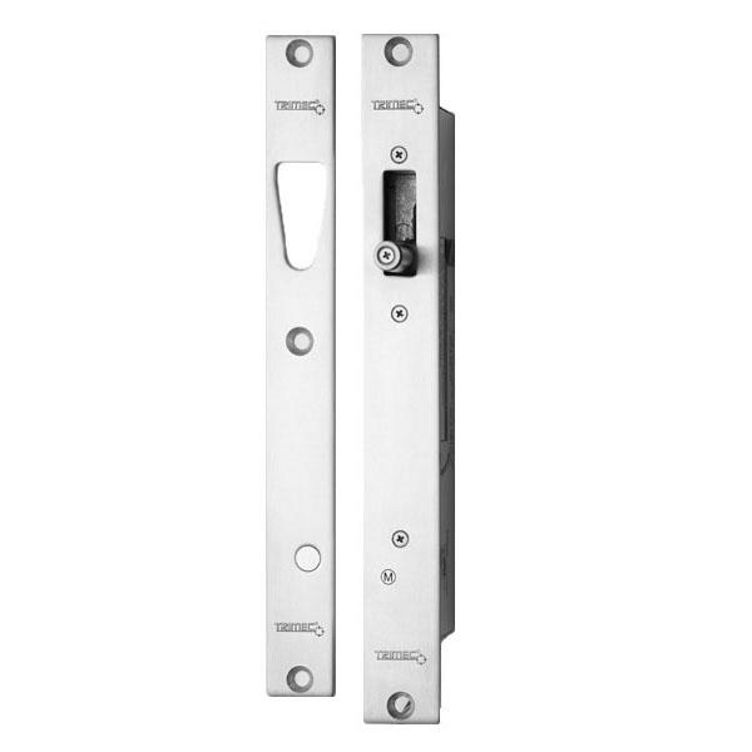

ES8000 Series V-Lock

Trimec's V-Lock introduces patented features that overcome the problems of door misalignment in 180 degree swinging doors and the problems of side load.

This high-torque motorised lock can be concealed from view or surface mounted, and has the worlds' first fail-open motor locking mechanism which eliminates the need and cost of an additional key override.

Features

• SIDE LOAD - PRE LOAD Lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. (1 x Permanent Power, (positive 12-24VDC) wire Negative (0 volt return) wire, and 1 x Switching input (positive 12-24VDC) wire.
• Door misalignment of up to 3.5mm +/-
• Power to Lock (Fail Safe)/Power to Open (Fail Secure) field configurable.
• HIGH TORQUE Motorised locking and unlocking (3 wire mode)
• Overcomes the issues of side pressure caused by differential air pressure.
• High Speed Operation
• Unlocks in less than 1 second
• Glass Door Accessory kit
