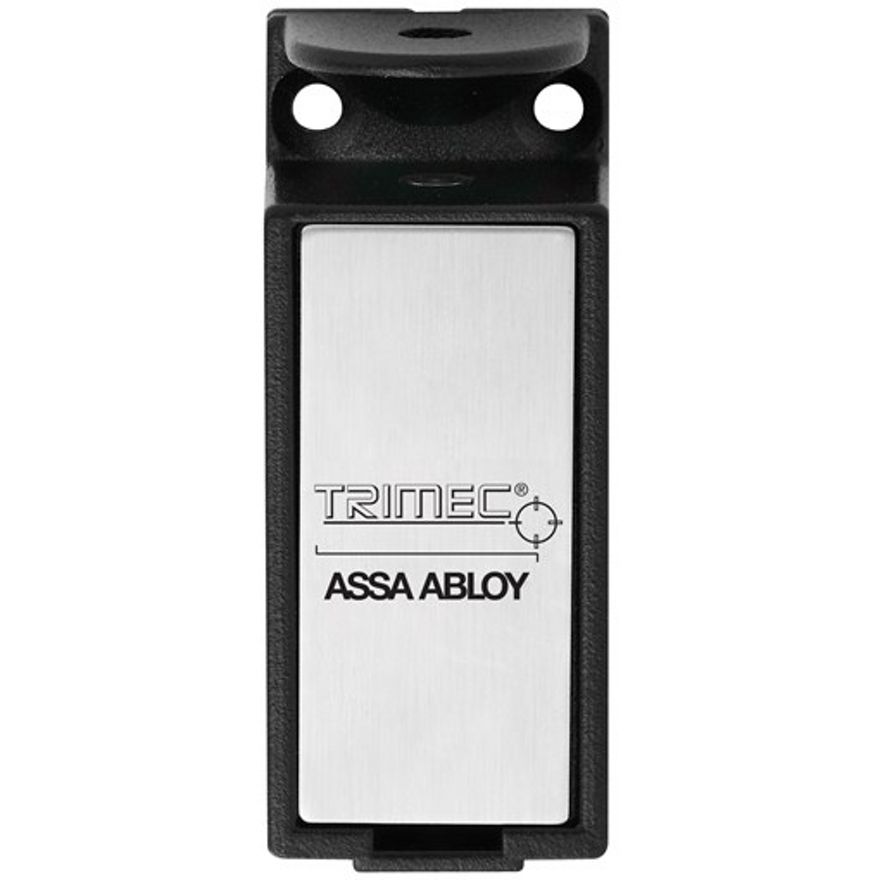

Trimec EL110 Series Electric Cupboard Lock

The EL110 Cabinet lock is a small cast aluminium lock designed for cabinets having either swing or sliding doors where access control is a requirement and keys are not the total answer. The Cabinet Lock designed to hold 150kgs (330 lbs) can be mounted both vertically and horizontally.

The EL110 can be controlled by any existing access control system or simply controlled through a remote key pad or key switch and suitable for installations that have only one or multiple cabinet applications.

Features

• MODE CONVERSION Can be changed from "power to lock" to "power to open"
• FLEXIBLE ALIGNMENT Has a 5mm XY adjustment after installation
• LOW CURRENT CONSUMPTION Uses only 187mA with 12 volts dc
• INDUSTRY STANDARD Can be connected to any key switch, key pad, card reader or access control system
• MULTI VOLTAGE Available in both 12 and 24 volts dc
• CONTINUOUS RATED Solenoid can be continuously powered
• C-Tick and CE Compliant
• Approval Electromagnetic Compatibility - EN500181 -1 Exempt
• 5 YEARS GUARANTEE
