Cylinder Padlock eCLIQ N319

The ASSA ABLOY eCLIQ N319 is a high-security electronic padlock designed for outdoor and harsh-environment applications, combining the flexibility of the eCLIQ electronic access control system with a robust mechanical padlock.

For extreme weather conditions, with forced locking - key can only be extracted when locked -without key-

The microelectronics in the programmable, waterproof eCLIQ key and the compact electronic locking cylinder ensure maximum security. eCLIQ solves the problem of lost keys. Locking authorisations can be easily deleted since each key can be programmed individually. Lost keys can be quickly deactivated without replacing the padlock.

Can be integrated into wider eCLIQ master key systems using the same programmable key across multiple lock types.

Product description

• Power is supplied exclusively via the key (no battery in the cylinder)
• Audit trail capability (depending on system configuration).

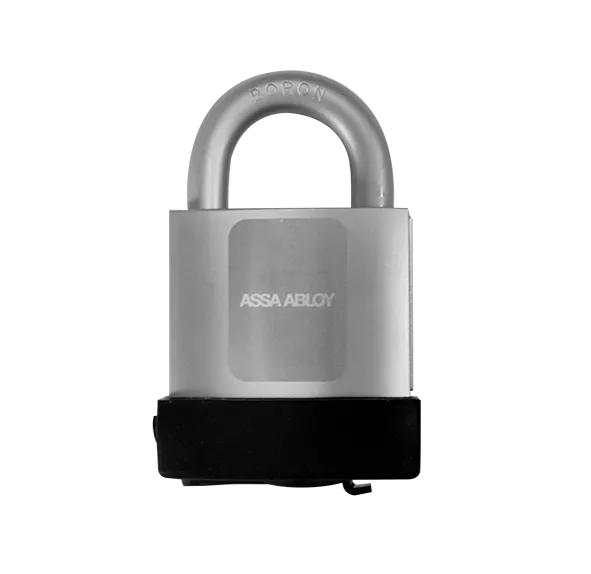

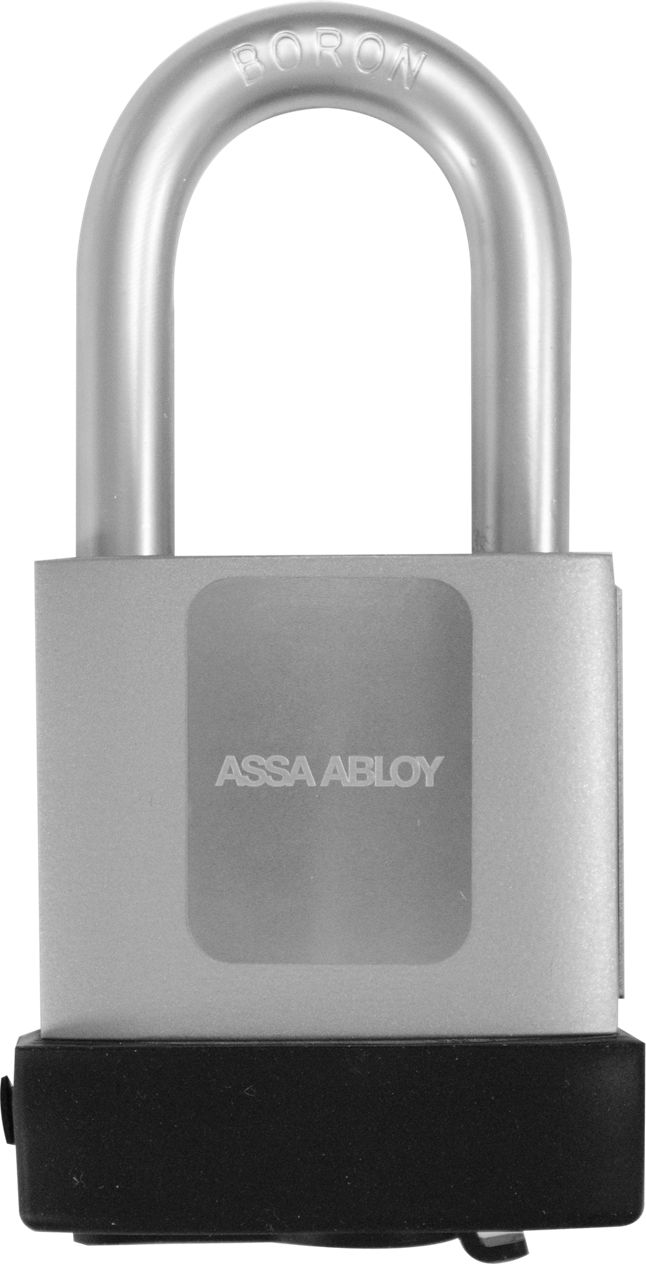

• Standard versions without high shoulder clear frame heights (AUS=LH27, LH50)

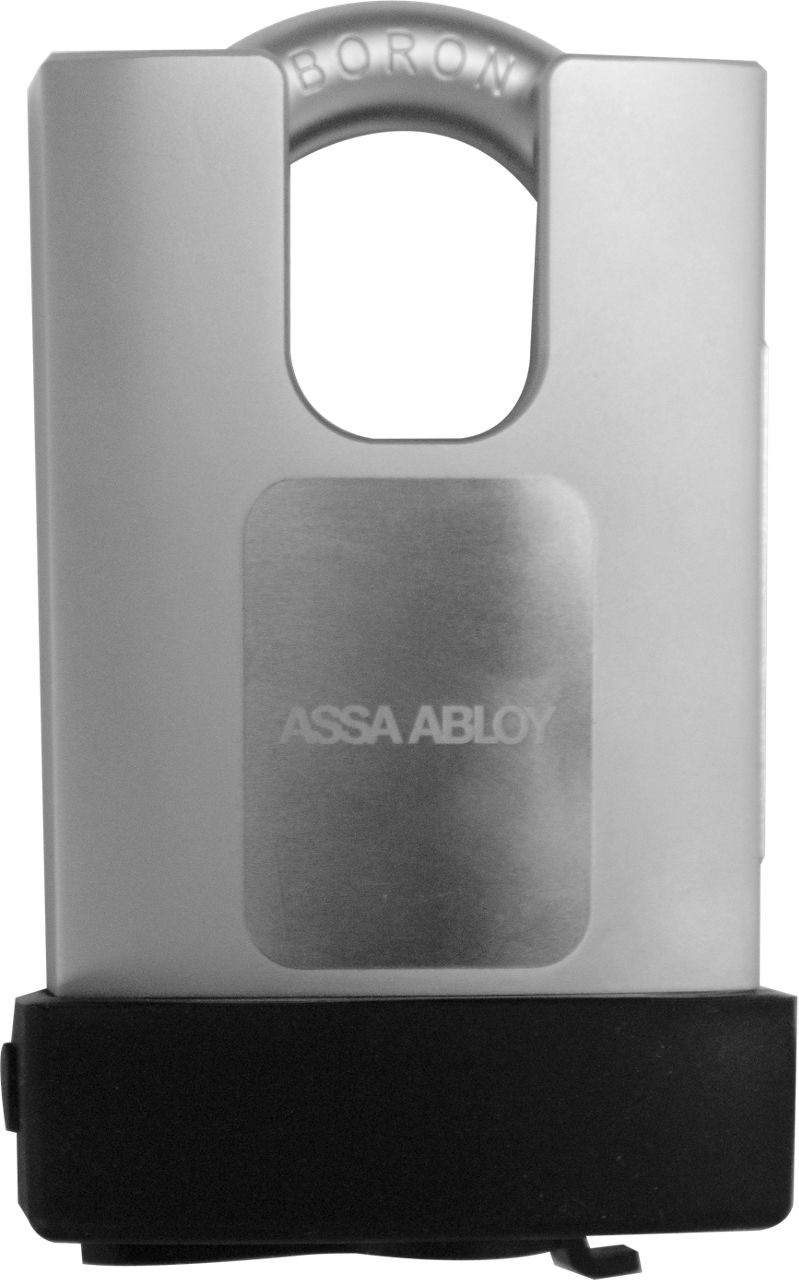

• Optional high shoulder clear height bracket version (AUS=LH27HS)
• Steel shackle available in 11.1 mm, hardened and chrome-plated
• Steel case hardened
• With a lateral M5 thread for attaching a protective cover
• Cylinder equipped with dust and rain protection cap (SUR = 3)
• Padlock equipped with silicone protective cap as standard
• Excellent protection against dampness and dirt, IP67
• Temperature range from -25°C to 85°C
• Maintenance-free cylinder

Overall, the N319 is ASSA ABLOY's heavy-duty eCLIQ padlock intended for high-security outdoor environments where auditability, key management, and weather resistance are critical requirements.

Scope of delivery

• 1 cylinder padlock with silicon protection cap
