Escape Route Technology

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• Multi-tone signal and tampering contact
• Adjustable time period for max. continuous release, delay in continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
• Monitoring of time door is open in the case of temporary unlocking
• With an input featuring adjustable parameters for:
• Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system, or
• Unlocking via timer and many other systems
• With a relay output featuring adjustable parameters for:
• Door locked/unlocked, or
• Door open/closed, or
• Collective alarm, or
• Individual alarm, or
• Activation of electric strike/motorized lock/door automatics/arrestor system
• TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
• Connections:
• SYSCON-4: power supply
• SYSCON-5: operating unit
• Plug-in screw terminals

• For locking/unlocking, temporary unlocking, alarm resetting
• Sabotage switch
• With Euro profile half cylinder, including 3 keys
• Cover which matches the corresponding switch fitting

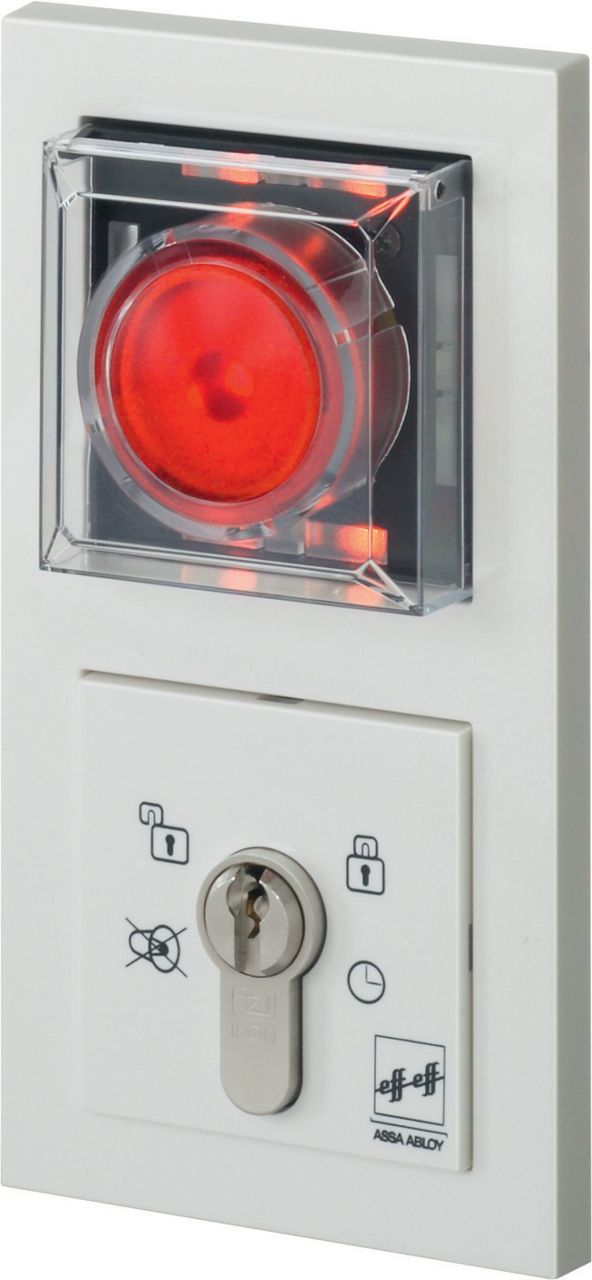

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• Multi-tone signal and tampering contact
• Adjustable time period for max. continuous release, delay in continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
• Monitoring of time door is open in the case of temporary unlocking
• With an input featuring adjustable parameters for:
• Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system, or
• Unlocking via timer and many other systems
• With a relay output featuring adjustable parameters for:
• Door locked/unlocked, or
• Door open/closed, or
• Collective alarm, or
• Individual alarm, or
• Activation of electric strike/motorized lock/door automatics/arrestor system
• TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
• Connections:
• SYSCON-4: power supply
• SYSCON-5: operating unit
• Plug-in screw terminals

• For locking/unlocking, temporary unlocking, alarm resetting
• Sabotage switch
• With Euro profile half cylinder, including 3 keys
• Cover which matches the corresponding switch fitting

• 1 escape door control module
• 1 key switch module
• 1 frame
• 1 operating manual

• Gira E2 - gloss pure white

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• Multi-tone signal and tampering contact
• Adjustable time period for max. continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
• Monitoring of time door is open in the case of temporary unlocking
• With an input featuring adjustable parameters for:
• Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system
• With a relay output featuring adjustable parameters for:
• Door locked/unlocked, or
• Collective alarm, or
• Activation of electric strike/motorized lock/door automatics
• Connections:
• SYSCON-4: power supply
• SYSCON-5: operating unit
• Plug-in screw terminals

• For locking/unlocking, temporary unlocking, alarm resetting
• Sabotage switch
• With Euro profile half cylinder, including 3 keys
• Cover which matches the corresponding switch fitting

• 1 escape door control module
• 1 key switch module
• 1 frame
• 1 operating manual

• Jung AS500 - alpine white

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• Multi-tone signal and tampering contact
• Adjustable time period for max. continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
• Monitoring of time door is open in the case of temporary unlocking
• With an input featuring adjustable parameters for:
• Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system
• With a relay output featuring adjustable parameters for:
• Door locked/unlocked, or
• Collective alarm, or
• Activation of electric strike/motorized lock/door automatics
• Connections:
• SYSCON-4: power supply
• SYSCON-5: operating unit
• Plug-in screw terminals

• For locking/unlocking, temporary unlocking, alarm resetting
• Sabotage switch
• With Euro profile half cylinder, including 3 keys
• Cover which matches the corresponding switch fitting

To control electric locking systems in doors along escape routes; certified.

• Can be connected to door terminals and operating components
• Can be connected to locking components
• Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
• Monitoring of time door is open during temporary release.
• With 4 inputs featuring adjustable parameters for:
• Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system, or
• Unlocking via timer and many other systems
• With 4 relay outputs featuring adjustable parameters for:
• Door locked/unlocked, or
• Door open/closed, or
• Collective alarm, or individual alarm,
• Activation of electric strike/motorized lock/door automatics/arrestor system.
• TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
• Connections: plug-in screw terminals

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated door status indicator (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• alarm signal and tampering contact;
• Key switch to control door
• With Euro profile half cylinder, including 3 keys
• Adjustable time intervals for temporary release, pre-alarm, alarm interval
• Monitoring of time door is open during temporary release.
• TS bus interface for parallel operation of visualisation software, panel and OPC server
• Connections: screw terminals

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated door status indicator (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• alarm signal and tampering contact;
• Key switch to control door
• With Euro profile half cylinder, including 3 keys
• Adjustable time intervals for temporary release, pre-alarm, alarm interval
• Monitoring of time door is open during temporary release.
• Connections: screw terminals

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated door status indicator (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• alarm signal and tampering contact;
• Key switch to control door
• With Euro profile half cylinder, including 3 keys
• Adjustable time intervals for temporary release, pre-alarm, alarm interval
• Monitoring of time door is open during temporary release.
• TS bus interface for parallel operation of visualisation software, panel and OPC server
• Connections: screw terminals

• 1 control terminal
• 1 emergency button sign
• 1 profile-half cylinder
• 1 operating manual

To control electric locking systems in doors along escape routes; certified.

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated door status indicator (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• alarm signal and tampering contact;
• Key switch to control door
• With Euro profile half cylinder, including 3 keys
• Adjustable time intervals for temporary release, pre-alarm, alarm interval
• Monitoring of time door is open during temporary release.
• Connections: screw terminals

• 1 control terminal
• 1 emergency button sign
• 1 profile-half cylinder
• 1 operating manual

Surface holding magnets are suitable for securing doors in an electro-magnetic system. They are easy to install, as there is no need to make modifications or cut-outs in door frames. A written communication from the DIBt, the German Center of Competence in Civil Engineering, dated March 24, 1991, states that electro-magnets may also be used on fire doors. Surface holding electro-Magnet 828 contains an integrated contact to monitor locking status (Hall effect sensor).

• The rated voltage can be set on the magnet at either 24 V DC or 12 V DC.

• 1 piece compact surface holding magnet
• 1 piece counter holding plate

• Please note at order: In addition to the integrated locking signal, an additional door contact must also be ordered.

The compact construction of the effeff 332.80 allows rapid, straightforward mounting onto a wide variety of door frame and profiles.

The 332^® fail-unlocked electric strike from effeff, designed especially for locking doors along escape routes, is considered the world's smallest escape door strike due to its small dimensions.

The compact design of the new effeff Escape Door Strike 332^® is comparable with a standard electric strike, thus guaranteeing fast, simple installation in a wide variety of different profiles and frames.

A further advantage is the secure and reliable unlocking procedure under a preload of up to 3.000 N with a holding power of 100% in the event of a power failure. The escape door strike thus ensures that the door strike latch bolt functions reliably even o

Test certificate (MPA – Material Testing Institute – Dortmund) 120002494.10

• Radius latch
• Compact design
• Min. 2000 N, max. 3000 N holding power according to prEN13633 and prEN 13637
• Unlocking under preload with 100% holding power
• Monitoring contact is potential-free and armature contact is non-isolated *
• Suitable for DL/DR and horizontal installation
• Low power consumption
• Compact fitting dimensions
• Adjustable FaFix^® latch: 4 mm adjustment range with 0.5 mm increments
• Adjustable via Fix^® grooves in housing
• Monitoring flap moves together with the FaFix^® screw-on attachment, i.e. the switching point always remains the same
• Optionally available with fixed latch
• Adjustable via Fix grooves in housing

• 1 piece escape door strike

• Can only be used as a supplementary locking device on fire doors
• * Coupling Relay 7480 is required for parallel operation.
• Armature contact not potential-free. Operation with effeff control terminals without coupling relay possible.
• 24 V, with FaFix^®

Processor-controlled bus – Master to operate TS Bus networks with up to110 devices.

With Ethernet interface to connect to a PC to use visualisation software, configuration software or an OPC server.

With five parameterisable inputs for emergency release activated by fire alarm system, priority locking activated by burglar alarm system and unlocking activated by timer switch.

With three parameterisable relay outputs for system signals which indicate collective alarm, individual alarms and system failure

Integrated grouping function to implement interlock sequences (sequential locking), fire alarm groups (emergency unlocking), security zones equipped with burglary alarm systems (priority locking), timed release zones equipped with timer switches (permanen

With USB interface for system backup and data import

In surface-mounted, PVC housing

Including crossover cable (RJ45)

Includes FT Manager software as integrated, web-based application to centrally configure networked escape door control units or FT II Generation door monitoring units (Type Series 1385, 720-40 and higher)

With five central inputs, e.g. for emergency release by fire alarm system, priority locking by burglar alarm system, unlocking by timer.

With 3 central relay outputs, e.g. for collective alarm and system failure

With group and interlock functions

Includes FT Manager software to centrally configure networked escape door control units or FT II Generation door monitoring units (as from type series 1385) in web browser.

Includes cross-over cable RJ 45 for direct connection to a PC for configuration
