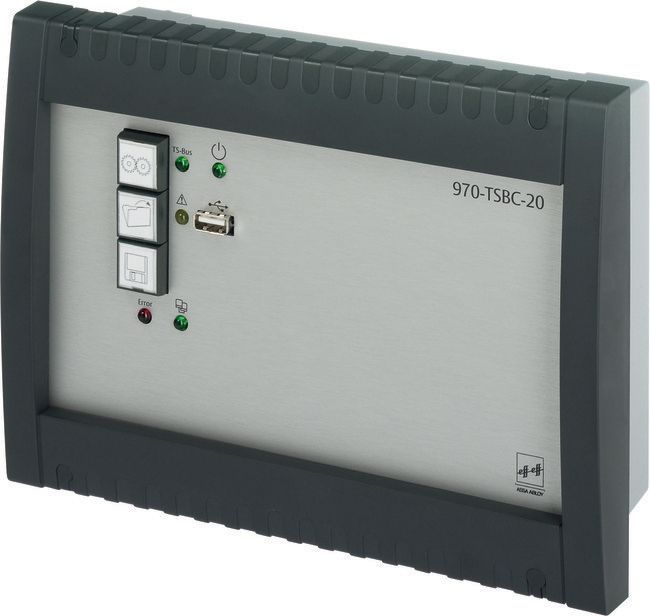

TSB Controller

Product description

Processor-controlled bus – Master to operate TS Bus networks with up to110 devices.

With Ethernet interface to connect to a PC to use visualisation software, configuration software or an OPC server.

With five parameterisable inputs for emergency release activated by fire alarm system, priority locking activated by burglar alarm system and unlocking activated by timer switch.

With three parameterisable relay outputs for system signals which indicate collective alarm, individual alarms and system failure

Integrated grouping function to implement interlock sequences (sequential locking), fire alarm groups (emergency unlocking), security zones equipped with burglary alarm systems (priority locking), timed release zones equipped with timer switches (permanen

With USB interface for system backup and data import

In surface-mounted, PVC housing

Including crossover cable (RJ45)

Includes FT Manager software as integrated, web-based application to centrally configure networked escape door control units or FT II Generation door monitoring units (Type Series 1385, 720-40 and higher)

With five central inputs, e.g. for emergency release by fire alarm system, priority locking by burglar alarm system, unlocking by timer.

With 3 central relay outputs, e.g. for collective alarm and system failure

With group and interlock functions

Includes FT Manager software to centrally configure networked escape door control units or FT II Generation door monitoring units (as from type series 1385) in web browser.

Includes cross-over cable RJ 45 for direct connection to a PC for configuration
