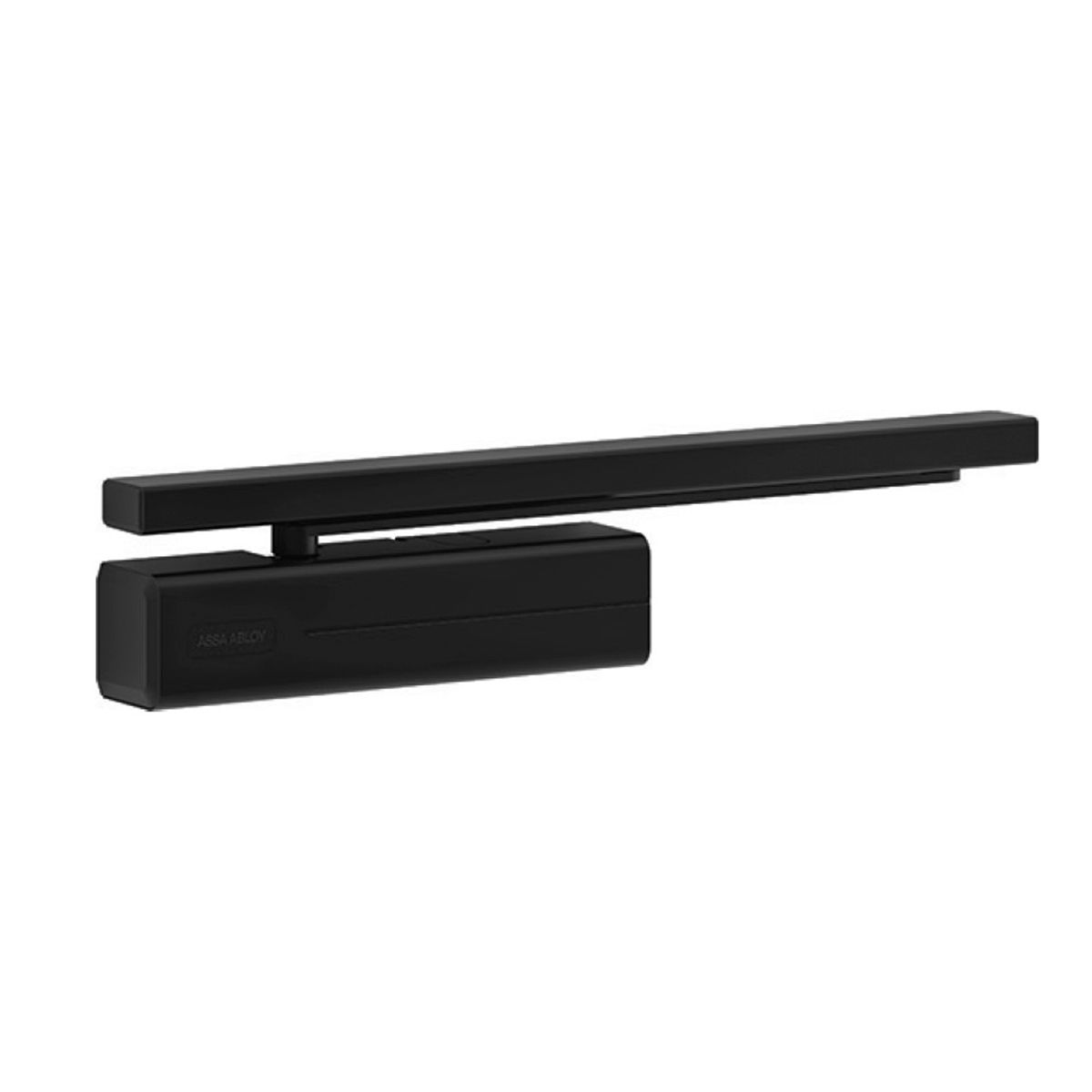

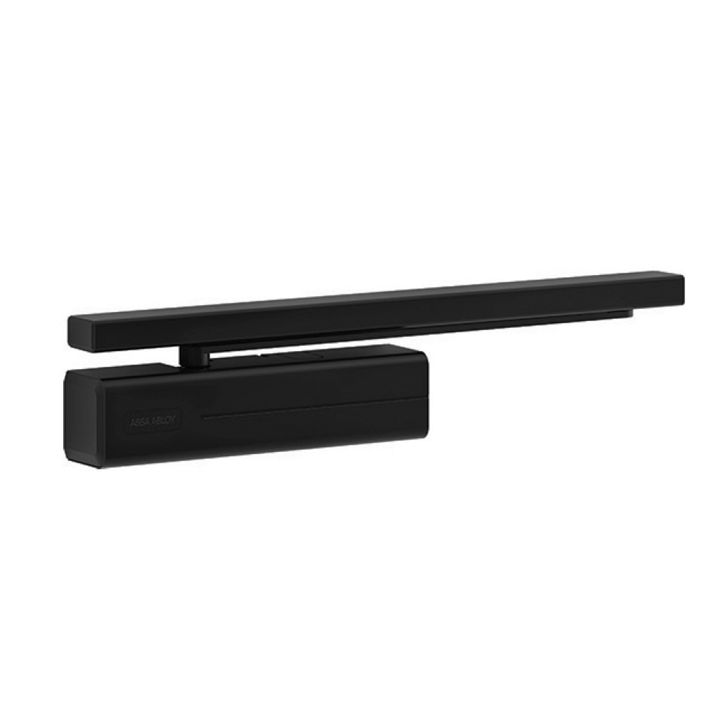

Black Door closer with Cam-Motion technology and guide rail

Variations:

• ASSA ABLOY-DC500BLK

Specifications:

• Door closer with Cam-Motion^® technology
• Certified in compliance with EN 1154, size 1-4
• For single action doors up to 1100mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 160°
• Hold-open variant available
• Hold-open angle 130°
