Biometric access control via facial recognition: iDFace & iDFace Max
iDFace and iDFace Max are multifunctional access solutions that combine different identification methods in one device: facial recognition, transponder card, QR code, and PIN. The key advantage of facial recognition is speed and contactless access. Individuals can be identified in fractions of a second without having to show their smartphone or a card.
iDFace: compact facial recognition terminal for professional access control
iDFace is a compact entry-level solution for biometric access control. The device recognizes up to 10,000 faces with live facial recognition and also supports other identification methods such as transponder card, PIN, and QR code. Thanks to its IP65 class of protection, iDFace is suitable for both indoor and outdoor use.
Whether directly on the device via the 3.5-inch touchscreen or via the integrated software: access rules based on groups and schedules can be easily configured without additional software installation.
iDFace Max: multifunctional facial recognition terminal for high-traffic requirements
iDFace Max is the high-performance option for locations with particularly high traffic or increased security requirements. The biometric access control device manages up to 100,000 faces with live facial recognition and reliably identifies individuals with and without masks in real time.
The 7-inch touchscreen display provides clearer navigation and improved usability in daily operation. In addition, iDFace Max supports the OSDP protocol, enabling seamless integration into existing security infrastructures.
Highlights at a glance
Highlights at a glance
- Up to 10,000 faces with live facial recognition
- 3.5" capacitive touchscreen
- Class of protection IP65 (indoor and outdoor)
- TCP/IP and USB connectivity
- Access rules by groups and schedules
Where are biometric access control terminals used?
Where are biometric access control terminals used?
The iDFace and iDFace Max facial scanners can be used wherever access control needs to function efficiently, hygienically, and reliably. Typical application scenarios include:

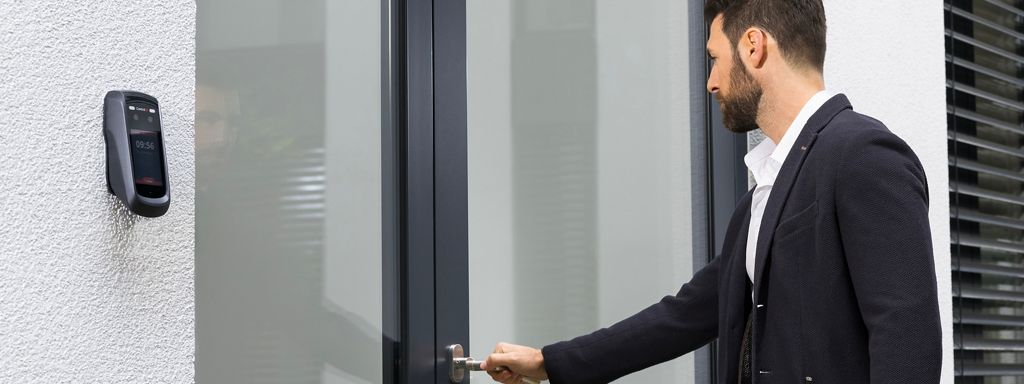

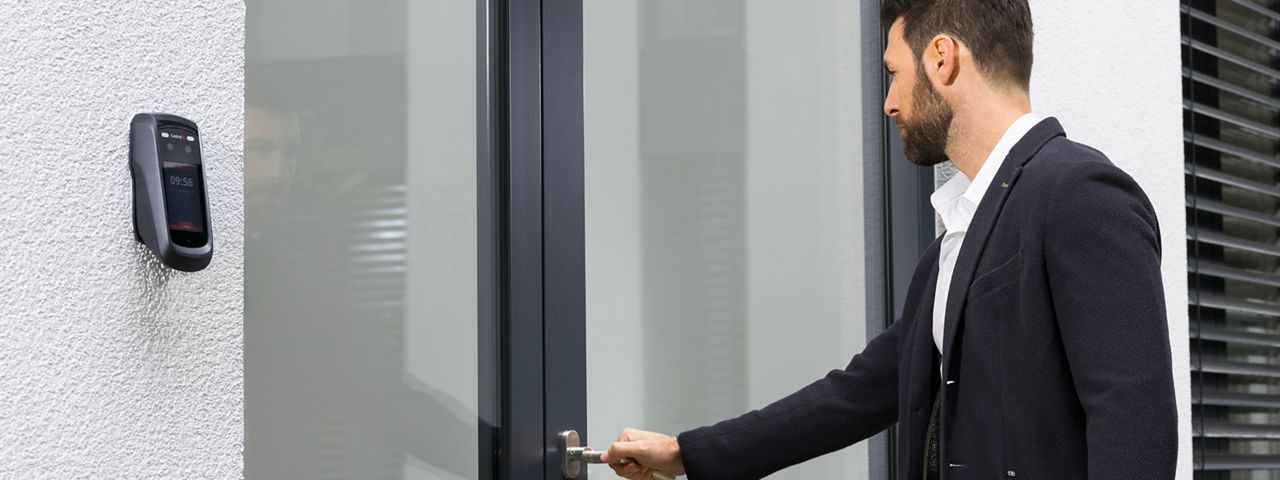

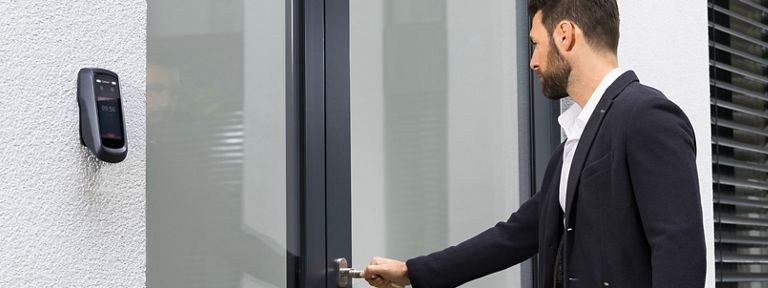

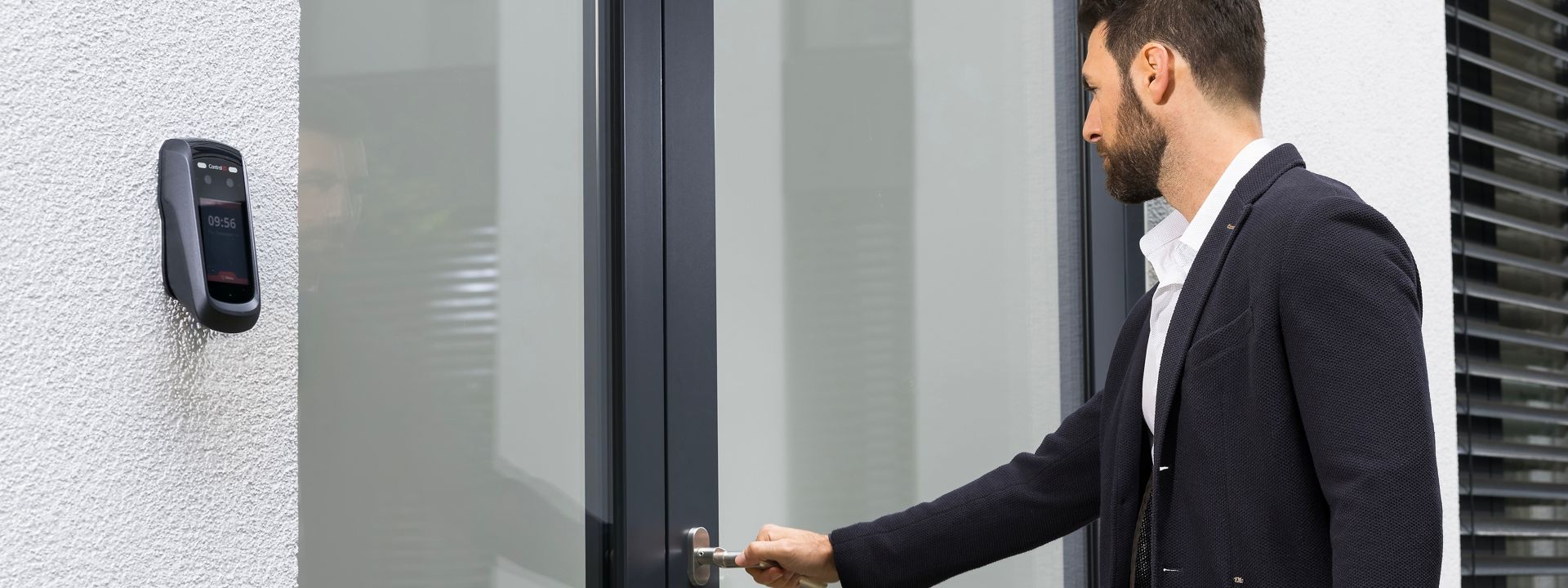

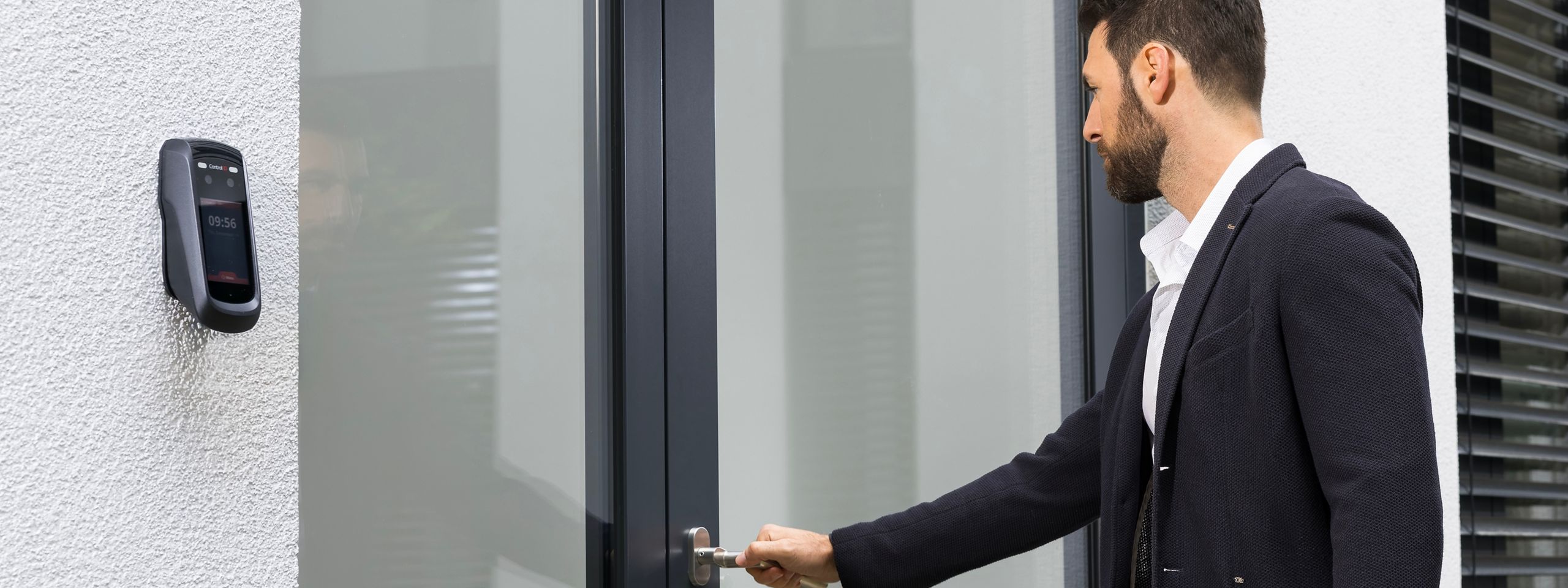

- Entrance areas and reception: building access in office and administrative buildings without card contact or manual verification
- Back office and service areas in hotels: fast, contactless identification of employees
- Production halls and storage areas: access control in zones with increased hygiene standards or glove requirement
- Server rooms and security areas: access to sensitive infrastructure areas with biometric security, also in combination with two-factor authentication, biometrics and RFID cards, or PIN
- Healthcare facilities: hygienic access in hospitals, medical practices, and care facilities
- Educational institutions: access control for schools, universities, and colleges with a large group of users
- Public administration and authorities: documented, traceable access to official areas
Find the right access control
For these and other industries, ASSA ABLOY (Schweiz) AG offers further options for effective access control.
Technical specifications – iDFace
Access control
- User capacity: more than 200,000 registered users
- Face capacity: up to 10,000 faces with live facial recognition
- Access rules: by schedules and departments
- Door control: 1 door with REX button and door sensor input
- Relay output: 1 relay up to 30 VAC/5 A
- Wiegand input: 1 native port
- Wiegand output: 1 native port
Communication
- Ethernet: 1 × 10/100 Mbit/s
- USB: 1 × USB 2.0 host
- RS-485: 1Port (communication with external access control module)
Methods of identification
- Facial recognition: two 1080p full-HD cameras (visible light and infrared)
- Transponder card: MIFARE and HID
- Password: PIN-based identification
- QR code: QR code-based identification
User interface
- Display: 3.5" TFT color LCD (320 × 480) with capacitive touchscreen
- Management: fully browser-based via integrated software
General properties
- Terminal dimensions: 76.7 × 54.5 × 174 mm (W × D × H)
- External module dimensions: 52 × 52 × 22 mm (W × D × H)
- Terminal weight: 240 g
- External module weight: 35 g
- Power supply: external 12 V/2 A
- Class of protection: IP65
Technical specifications – iDFace Max
Access control
- User capacity: more than 200,000 registered users
- Face capacity: up to 100,000 faces with live facial recognition
- Access rules: by schedules and departments
- Door control: via external access control module and/or internal relay
- Relay output: 1 relay up to 30 VAC/5 A
- Wiegand input: 1 native port
- Wiegand output: 1 native port
- REX button: 1 input on external module
- Door sensor: 1 input on external module
Communication
- Ethernet: 1 × 10/100 Mbit/s
- USB: 1 × USB 2.0 host
- OSDP: as peripheral device via RS-485
Methods of identification
- Facial recognition: two 1080p full-HD cameras (visible light and infrared)
- Transponder card: 13.56 MHz MIFARE
- Password: PIN-based identification
- QR code: QR code-based identification
User interface
- Display: 7" TFT color LCD (800 × 1280) with capacitive touchscreen in stand-alone mode
- Audio: integrated speaker and microphone
- Management: stand-alone via display or integrated software
General properties
- Terminal dimensions: 119.4 × 34.6 × 247 mm (W × D × H)
- External module dimensions: 52 × 52 × 22 mm (W × D × H)
- Terminal weight: 950 g
- External module weight: 35 g
- Power supply: external 12V/2A or PoE (IEEE 802.3af)
- Class of protection: IP65
