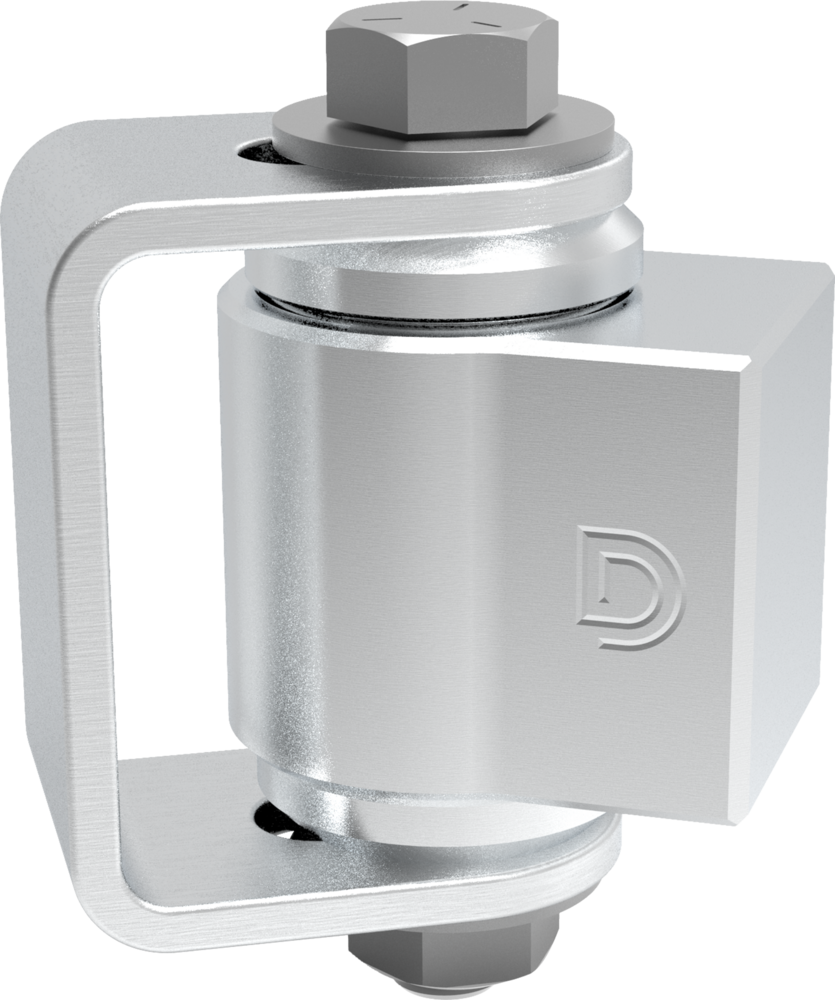

    Shut IT® Aluminium BadAss

    Like The ORIGINAL BadAss, The aluminium BadAss Gate Hinge is CNC machined to the tightest
tolerances in the industry. Due to SHUT IT’s unique bushing design The Aluminium BadAss, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.

    1 of 3

    Two sealed maintenance free bearings

    Adjustable bracket for precise installations

    Ideal for flat post installation

    Maximum gate weight: 270kg (600 lbs)

    Load rating per gate: 450kg (1,000 lbs)

    • Dimensional Drawings (for Webshop/AEM/Priint) S3
    • Brochures (for Webshop/AEM) S3
    • Fitting Instructions (for Webshop/AEM) S3
    NameValue
    SKUCI3400
    BrandD&D Technologies
    FinishAluminium
    FixingsWeld-On
    WarrantyLifetime
    Finish TypeSilver
    Gate MaterialMetal Only
    Approx Gate Size2m H X 3m W (7ft X 10ft)
    EAN code0
    Gate TypeNon Self-Closing
    Range NameD&D Technologies
    ApplicationsAutomated/Electric Gate, Driveway Gate - Double, Driveway Gate - Single, Pedestrian Gate, Pet Gate, Playground Gate, Privacy Gate, Public/Commercial Gate, Security Gate
    Min Post Size38mm+
    Ideal Gate Gap64mm - 76mm
    TypeNon Self Closing
    Gate Frame/Post ShapeSquare To Square
