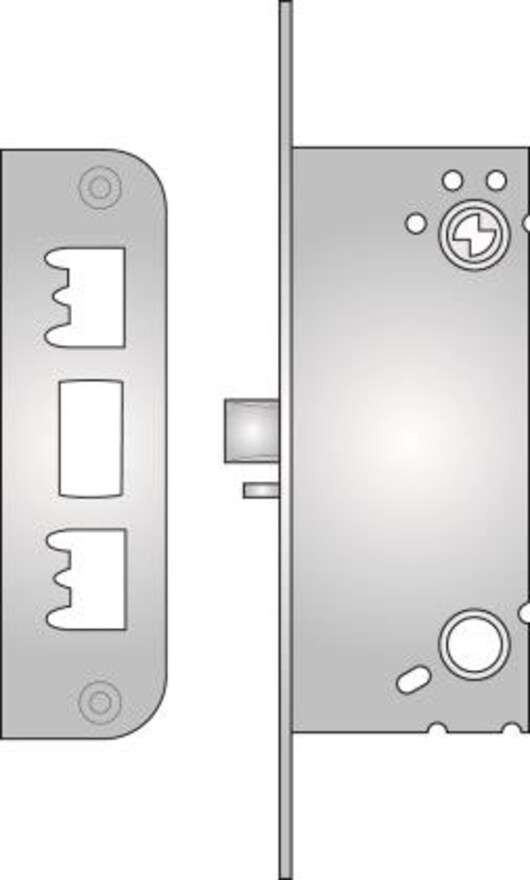

    ASSA Connect 231/50mm Lockcase

    Our ASSA 231 nightlatch with key lock-back is designed for entrance doors, where automatic locking is required when a door is closed. Key for locking bolt into lockcase.

    1 of 3

    Bolt deadlocks automatically when door is closed

    Supplied as standard with striking plate

    When ordering please specify hand and door thickness

    Bolt reversible without opening lockcase

    Available with 35mm, 50mm or 70mm backset

    • DoP
    NameValue
    SKU357687163031
    BrandASSA
    StyleNo Strike
    FinishBright Zinc
    Forend (mm)22 X 225
    Backset (mm)50
    Centres (mm)105 Mm
    HandingReversible
    FunctionLatch
    Pack Qty1
    WarrantyNo
    Dimensions (mm)74 X 150 X 19
    Fire RatedYes
    MonitoringNo
    Finish (Case)Zinc
    Finish TypeSilver
    Forend StyleRadius
    Backset (mm)41mm - 50mm
    Finish (Forend)Zinc
    Micro SwitchedNo
    Cylinder FinishChrome
    Cylinder IncludedYes
    Follower Distance (mm)8
    Fire Door ApprovalNo
    Latch & Deadbolt FinishHardened Steel
    EAN code7332404228524
    StandardsEN 12209, EN 1634-1
    Range NameASSA - Mechanical
    Faceplate Size (mm)22 X 225
    Fire Rated MetalFD120
    Fire Rated TimberFD30, FD60
    TypeRim Locks/ Night Latches
    FunctionNightlatch
