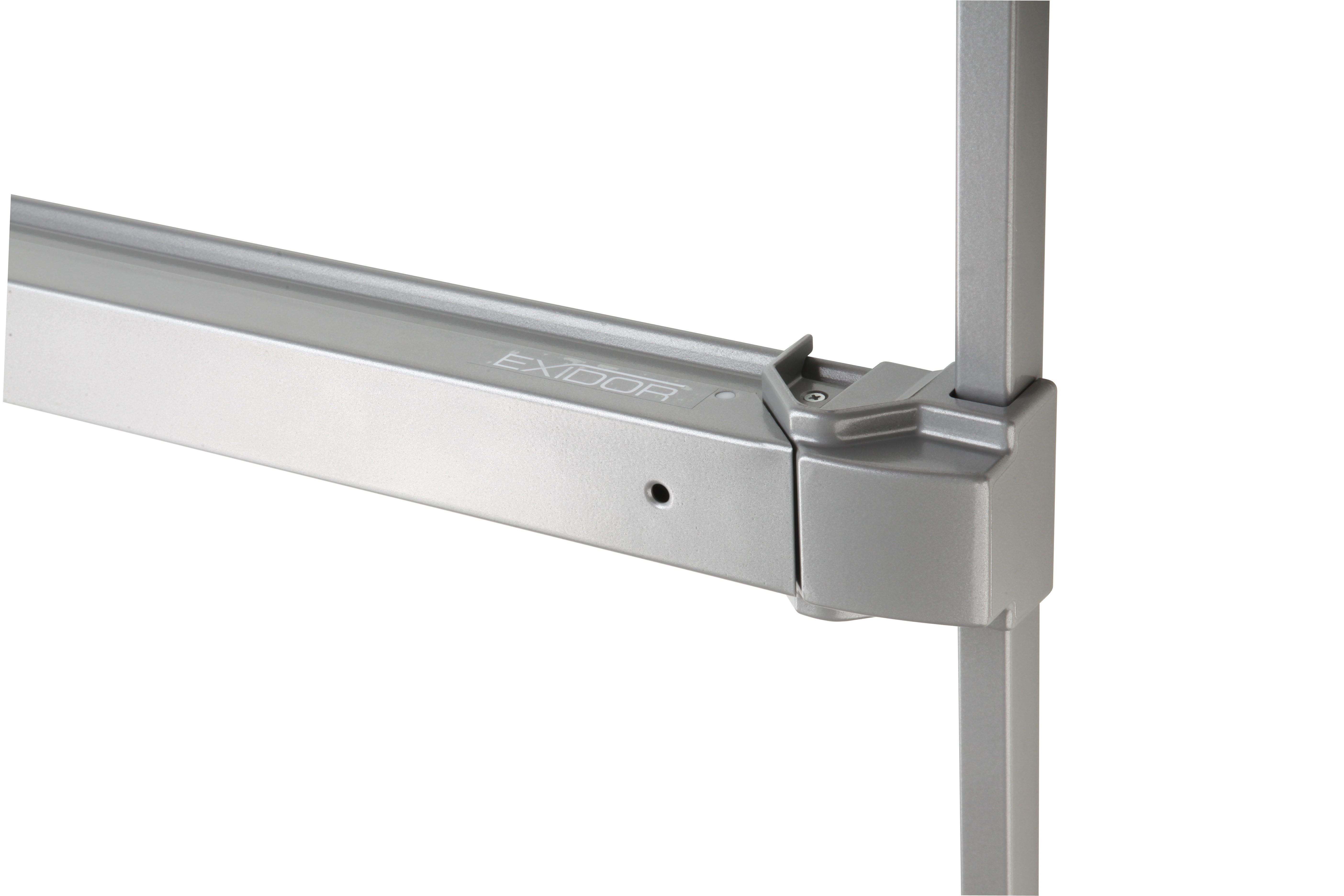

    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches

    Exidor two-point locking electronic latch retraction panic touch bar with two vertical Pullman latches, suitable for use with access control systems. Ideal use in banking and financial institutes, where greater awareness of security is required.

    The unit is operated by pressing the bar into the door face retracting the Pullman latches, releasing the bar returning the Pullman latches to the rest position.

    The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

    Certified in compliance with EN 1125. Keeps available for alternative frame arrangements. Indicate the required finish when ordering.

    Built-in electronic dogging

    Microswitch and alarm options, suffix order code with “MS” for microswitch or “AL” for alarmed

    Supplied with keeps and fixings, keeps available for alternative frame arrangements

    TB453 suitable for door widths between 872 and 1200

    Low power usage, from a 24V DC 1A power supply (source separately)

    NameValue
    StylePanic
    DoggedYes
    FixingsFixings Supplied
    Warranty1 Year
    Unit TypePanic
    ActivationTouch Bar
    Bolt StyleVertical Pullman Latches
    Dimensions (mm)833 X 64 X 62
    Projection (mm)62mm
    Door OpeningOutward
    Locking Points2
    Max Door Width (mm)1200mm
    Operation TypePush
    Max Door Height (mm)2440
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operator DetailTouch
    Fire Door ApprovalNo
    Suitable Door TypeSteel & Timber
    StandardsCE, EN 1125, UKCA
    Door TypeDouble, Plain Meeting Stile Double Either Leaf, Rebated Double Inactive Leaf, Single, Steel, Timber
    FeatureSurface Mounted
    FunctionPanic Hardware
    Escape Hardware FeatureSurface Mounted
    Escape Hardware FunctionPanic Hardware
    ProductProduct IDAttributes
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15904800
    Finish: Silver
    Alarmed: No
    Handing: Universal
    Micro Switched: Yes
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15904801
    Finish: Satin Stainless Steel
    Alarmed: No
    Handing: Universal
    Micro Switched: Yes
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15904813
    Finish: Black
    Alarmed: No
    Handing: Universal
    Micro Switched: Yes
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15938100
    Finish: Silver
    Alarmed: No
    Handing: Universal
    Micro Switched: No
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15938101
    Finish: Satin Stainless Steel
    Alarmed: No
    Handing: Universal
    Micro Switched: No
    TB453 wide electronic latch retraction touch bar with 2-point locking and vertical latches15938103
    Finish: Steel Blue
    Alarmed: No
    Handing: Universal
    Micro Switched: No
