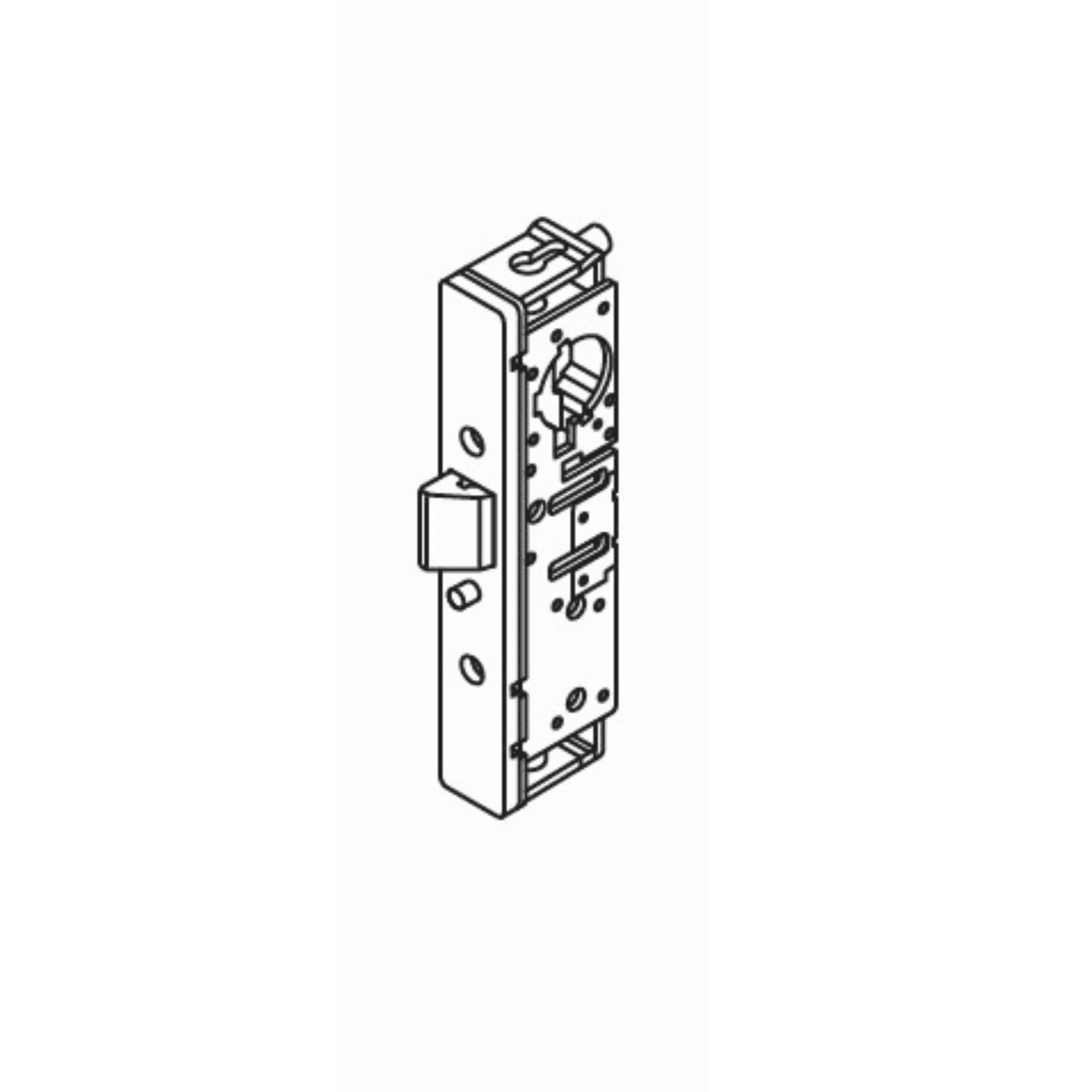

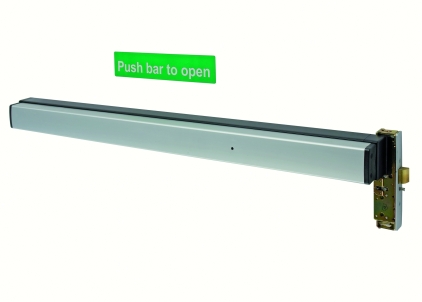

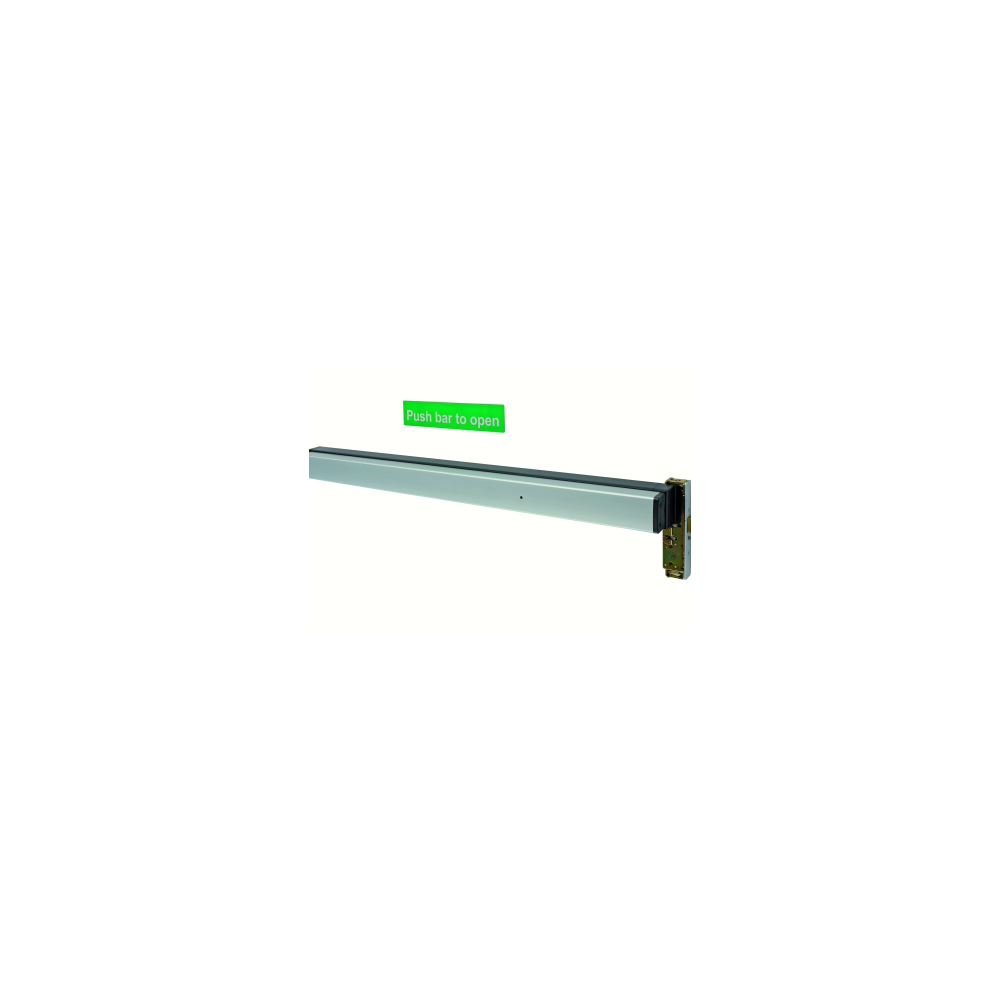

940 touch bar panic hardware with mortice deadlocking nightlatch

The Adams Rite 940 Series Mortice Exit device is a life safety device designed to fit into commercial aluminium door applications. Ideal for pulic access areas, this panic hardware set is supplied with a screw-in cylinder operated mortice deadlocking latch in 3 different backsets. The touch bar is supplied in 5 different lengths and can be cut to size on site.

Designed for use on aluminium doors

Touch bars can be dogged by allan key to allow for easy passage mode at peak usage and the released to ensure entry by key only.

Available in backset of 24.6mm, 28.6mm and 38.1mm and requires a minimum door stile depth of 16.3mm greater than the backset

Five standard touch bar sizes - 600mm, 750mm, 900mm, 1050mm, 1200mm - and all can be cut down on site

Solutions available for doors thicker than 44.45mm

Name	Value
Activation	Touch Bar
Bolt Style	Deadlocking Latch
Cylinder Detail	Round Screw In
Cylinder Included	No
Device Type	Panic Bar
Dogged	Yes
Door Height (mm)	2440
Door Opening	Outward
Door Type	Rebated Double Active Leaf, Single
Durability	200000
Escape Hardware Feature	Double Door - Rebated, Single Door
Escape Hardware Function	Panic Hardware
Finish	Satin Anodised Aluminium
Finish Type	Aluminium
Fire Door Approval	No
Fixings	Fixings Supplied
Locking Points	1
Max Door Height (mm)	2500mm
Max Door Weight (kg)	200kg
Micro Switched	No
Mounting Method	Surface Mounted
Operator Detail	Touch
Product Subtitle	<p>Introducing The Adams Rite 940 Universal Mortice Exit Device. This Reliable Life Safety Solution Is Perfect For Commercial Aluminium Doors. With Five Standard Sizes Available And A Sleek Design, It Ensures Easy Exit While Enhancing Safety. Trust In Quality And Functionality With The 940 Series.</p>
Projection (mm)	76mm
Standards	CE, EN 1125
Style	Panic
Suitable Door Type	Aluminium
Unit Type	Panic
Feature	Double Door - Rebated, Single Door
Function	Panic Hardware

Product	Product ID	Attributes
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-702-628	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-7U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-7U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-7U4-628-952	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 52 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-8U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-8U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-1-8U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 600mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-742-628	Backset (mm): 24.6 Faceplate: Radius Weatherstrip Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 67 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U3-628-974	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 74 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U4-628-952	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 52 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-7U4-628-967	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 67 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-802-628	Backset (mm): 24.6 Faceplate: Flat Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-802-628-947	Backset (mm): 24.6 Faceplate: Flat Handing: Left Max Door Thickness (mm): 47 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-842-628	Backset (mm): 24.6 Faceplate: Radius Weatherstrip Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U2-628-947	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 47 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U2-628-967	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U3-628-952	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 52 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-2-8U4-628-967	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 750mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-702-628	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U3-628-947	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 47 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 67 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U3-628-974	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 74 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-7U4-628-967	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 67 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-802-628	Backset (mm): 24.6 Faceplate: Flat Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8u3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8U3-628-952	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 52 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-3-8U4-628-967	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 900mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-702-628	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-702-628-952	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 52 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-702-628-967	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 67 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-703-628-950	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 50 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-7U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-7U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-7U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-7U4-628-952	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 52 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U3-628-947	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 47 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U3-628-952	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 52 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U4-628-952	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 52 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-4-8U4-628-967	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 1050mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-702-628	Backset (mm): 24.6 Faceplate: Flat Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-7U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-7U3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-7U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-7U4-628-952	Backset (mm): 38.1 Faceplate: Universal Handing: Right Max Door Thickness (mm): 52 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-822-628	Backset (mm): 24.6 Faceplate: Bevelled Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-842-628	Backset (mm): 24.6 Faceplate: Radius Weatherstrip Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8U2-628	Backset (mm): 24.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8u3-628	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8U3-628-947	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 47 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8U3-628-967	Backset (mm): 28.6 Faceplate: Universal Handing: Left Max Door Thickness (mm): 67 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8U4-628	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 44 Max Door Width (mm): 1200mm
940 touch bar panic hardware with mortice deadlocking nightlatch	940-00-5-8U4-628-954	Backset (mm): 38.1 Faceplate: Universal Handing: Left Max Door Thickness (mm): 54 Max Door Width (mm): 1200mm
