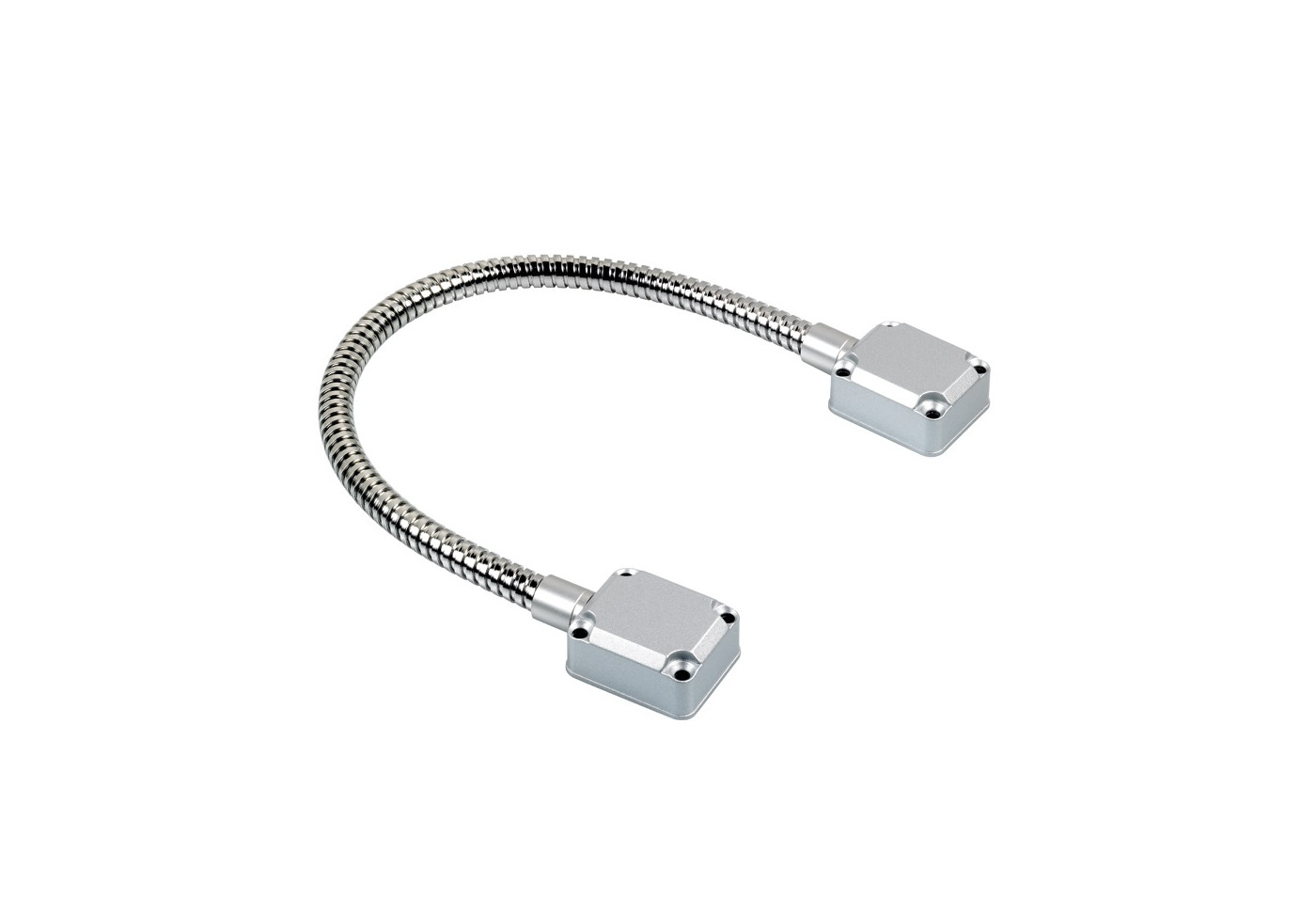

Door loop - 500mm with 10mm inner

EH Electric Hinge, Double duty hinge for streamlined power transfer

Heavy-duty, tamper-resistant concealed electrical power transfer (CEPT) securely transfers power and data, from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between frame and door when the door is closed and complements any architectural setting. Mortises into the edges of the door and frame. Tamper resistant for additional security. 7/8” 22.25mm knockouts on back boxes accommodate EMF-type fittings. Compatible with butt hinges up to 6” 152.4mm and continuous hinges with cut out.

Fully monitored linear regulated 12 or 24v DC power supply with LED indicators, giving 15 status indicators. Features fifteen separate status indications by LED on front panel. Individual warning relay inputs and outputs for AC failure, low voltage, fuse blown or battery fault (low or disconnected). Independent battery charging circuit separate from main DC output. Designed with battery deep discharge cut-off feature.

General purpose linear regulated 12 or 24v DC power supply with LED indicators. High level of regulation and stabilisation. Three LED indicators for mains present, fuse blown or battery fault. Variable potentiometer on PCB for precise output voltage adjustment. Dual options available with AC/DC outputs. Features manual battery test button accessible from outside the enclosure.
