M38 medium-strength electromagnetic lock

The Adams Rite 262 morticed magnets is a durable and low maintenance electromagnetic lock with a 250kg holding force, designed for interior and exterior use.

The 291 direct pull magnets are surface mounted direct pull magnets that are used as part of an access control system for electric locking applications. To facilitate remote access and exit control of any external gate/barrier.

1354 mini shear electromagnet, with 1500kg holding force, to facilitate remote access where minimal intrusion into the environment is required. Ideal for use on single action internal doors or external doors, where a cover is situated above the doorway to prevent direct rain penetration. Suitable for use on aluminium, timber and steel doors and can be fitted into the head or vertical locking stile. Mortice or surface versions available. Features compact slim line design, for enhanced aesthetics.

261 direct pull magnets feature a 250kg holding force and are ideal for use with narrow doors. Options for both outward and inward opening doors provided. Designed to be durable, low maintenance and in a compact case size with clean aesthetics. Outward and inward opening door variant. Surface mounted or mortice versions available. Suitable for use with a maximum 3mm door gap.

The 281 is a high quality direct pull magnet, with a 510kg holding force, that are used as part of an access control system on aluminium, timber and steel doors. Designed to be durable and low maintenance, for peace of mind. The security pin feature helps to prevent unauthorised removal of the magnet from the door frame fixing plate. Features a built in voltage spike suppressor. Suitable for use with a maximum 3mm door gap.

The DM62 is a highly durable, high strength double electromagnet, with a 544kg holding force. Ideal for double doors in interior, perimeter and exterior access control system applications, with higher security requirements. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Designed with ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Features noise suppression with built-in MOV.

The M32 is a highly durable, medium strength electromagnet, with a 272kg holding force, ideal for traffic control in both internal and external high-use areas within secured or monitored perimeters, where abuse or vandalism on doors is not expected. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability and size optimised for use with door closers. Lock options include bondstat magnetic bond sensor and integrated door position switch. Features noise suppression with built-in MOV.

The M34R is a highly durable, medium strength, recessed electromagnet with a 227kg holding force. The recessed design conceals the body and makes it ideal for automatic sliding doors. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Automatic dual-voltage configuration with no field adjustment required and features noise suppression with built-in MOV.

The M680E EcoMag is the most advanced and energy efficient electromagnet available, with a 544kg holding force, purposely designed for buildings where energy efficiency, sustainability and security are paramount. High specification electromagnet with up to 80% decreased energy consumption and a biodegradable packaging insert. Features intelligent door prop sensing that allows the magnet to de-energize the coil when the door is held open for extended periods, saving energy. Strike plate mounting template makes for easier and faster installation, saving time. Optional integrated passive infrared sensor request to exit, provides optimum coverage for detecting approaching people, so the door unlocks for egress. Designed with LED indicator that displays if the lock is secure, open, or has an incomplete bond.

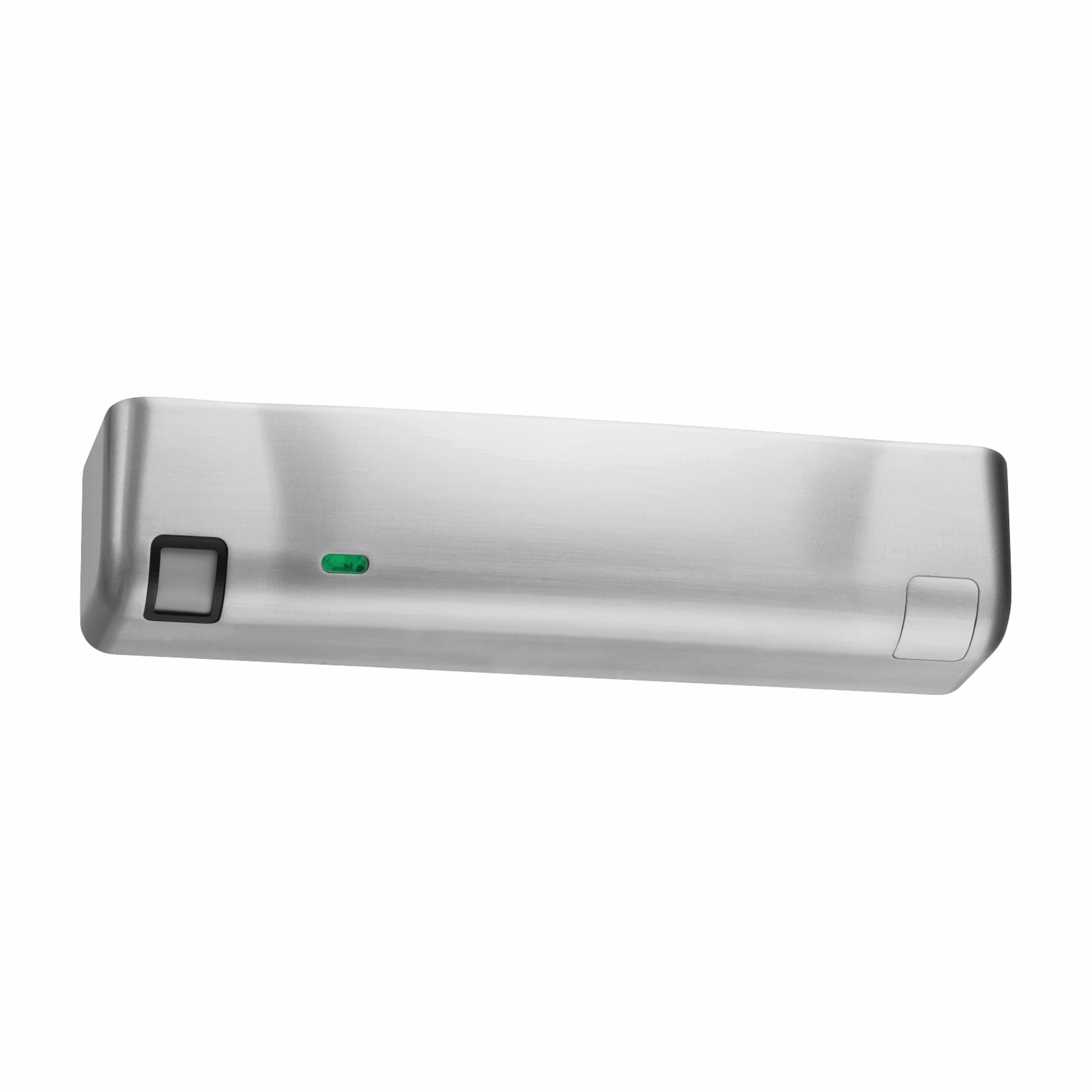

M380E EcoMag is the most advanced and energy efficient electromagnet available, with a 272kg holding force, purposely designed for buildings where energy efficiency and sustainability are paramount. High specification electromagnet with up to 80% decreased energy consumption and a biodegradable packaging insert. Features intelligent door prop sensing that allows the magnet to de-energize the coil when the door is held open for extended periods, saving energy. Strike plate mounting template makes for easier and faster installation, saving time. Optional integrated passive infrared sensor request to exit, provides optimum coverage for detecting approaching people, so the door unlocks for egress. Designed with LED indicator that displays if the lock is secure, open, or has an incomplete bond.

The M62 is a highly durable, high strength electromagnet with a 544kg holding force. Ideal for interior, perimeter, and exterior access control system applications, with higher security requirements, size optimised for use with door closers. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Designed with ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Features noise suppression with built-in MOV.

The M82 is a highly durable, extreme strength electromagnet, with 816kg holding force. Ideal for high security and high risk interior and exterior applications, where extreme forces may be encountered. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Designed with ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Features noise suppression with built-in MOV.

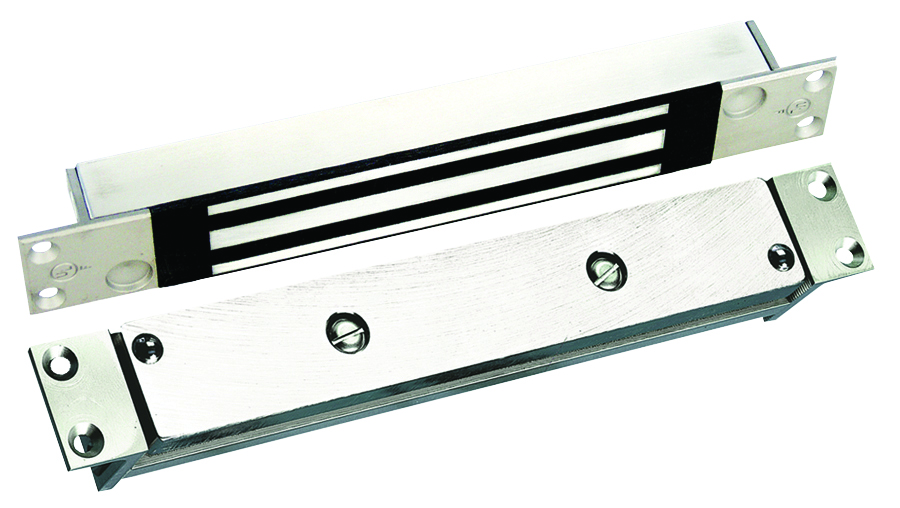

SAM is a highly durable concealed, shear aligning electromagnet, with 544kg holding force, for medium traffic control and security applications with flexible mounting accessories available, c/w Bondstat and door position monitoring. Offers mounting options for a single door or each leaf on a pair of doors and on sliding, in-swing, out-swing or swing-through doors. Direct mounted and recessed into door frame to maintain the aesthetics of doors. Patented instant release circuit eliminates residual magnetism, for easy opening and closing. Features fully sealed tamper and weather resistant electronics. Rust resistant with all ferrous metal surfaces plated for durability and external use. Designed with patented instant release circuit eliminates residual magnetism, for easy opening and closing.
