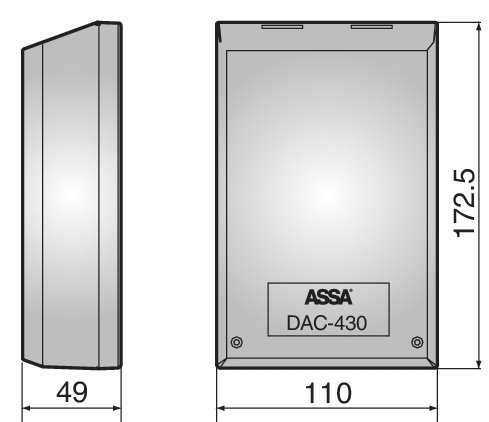

DAC 430
The DAC430 Control Unit provides the intelligence of the Connect motor lock system, and allows it to be integrated with a wide variety of other equipment. It may be used with a simple switch, or linked to sophisticated access control, building management, and alarm systems.
For electrical details see Electric Locking Information appendix. For use with any Connect serial motor lock. One control unit is required per lock. It accepts inputs from any suitable switch, timer or host control system.
A full range of status indicators and alarm outputs is incorporated. Four wiring system 2 wires for power supply, 2 wires for communication. Provides secure encrypted communication. Should be mounted in a secure area. Not for external use.
These can provide either simple unlocking, or an override function where the lock remains unlocked after the first authorised opening signal until the function is turned off again.
If the bolt is blocked for any reason, the system will repeatedly attempt to throw it again. This is done at 5 second intervals to prevent the motor burning out.
EN 500811
EN 500822
Inputs: Opening, blocking, external door monitoring switch
Relay Outputs: Locked, unlocked
Alarm Output: 12V
