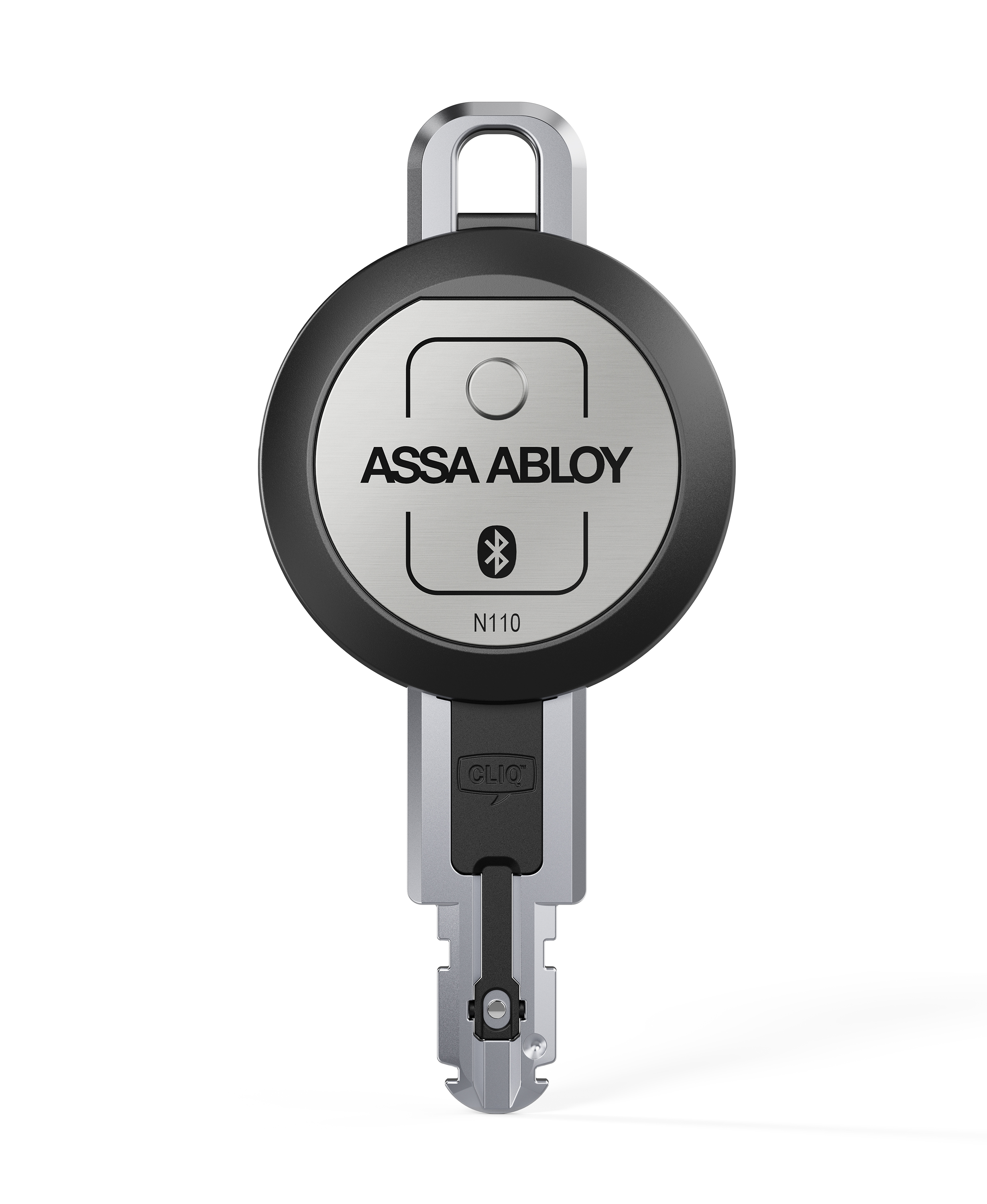

eCLIQ Connect Key

Compact, programmable, reversible, waterproof key

Communicates with a smartphone or tablet using Bluetooth® Low Energy (BLE)

Receives changes to authorisations and time settings using the CLIQ® Connect app

The electronic contact transmits power and data securely between the keys and locks

AES 128 bit encryption for ultimate electronic security

Stores audit events to keep track of exact access times of users

Each key is individually programmable, so access rights can easily be deleted for higher security and complete control

Non-volatile memory saves programming procedures and audit events in event of battery removal

Reversible key design ensures the key always fits, regardless if which direction it faces when inserted into a cylinder

Also works in combination with the wall programming devices or mobile programming device

LED indicator and acoustic signaling for functional operation and battery status

Temperature range 0° C to +70° C

Protected against temporary immersion in water (IP67)

Powered by commercially-available lithium battery (CR2032) For 30,000 locking operations (service life of about 3 years)

The battery can be easily changed by the user without tools

Standard colour for battery cover - black

Other colours for battery cover available: blue, yellow, green, grey, red and orange

Optionally available with a RFID transponder chip  integrated in the battery cover (LEGICPRIME, LEGIC ADVANT, MIFARE CLASSIC, MIFARE DESFIRE EV1, MIFARE DESFIRE EV2, EM4102, HITAG 1 or HITAG 2)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

Key memory capacity:

1,500 cylinder/cylinder group authorisations

Event log for the last 1,000 locking operations

32 time slots for flexible time schedules

Scope of delivery

1 electronic Connect User key, including battery
