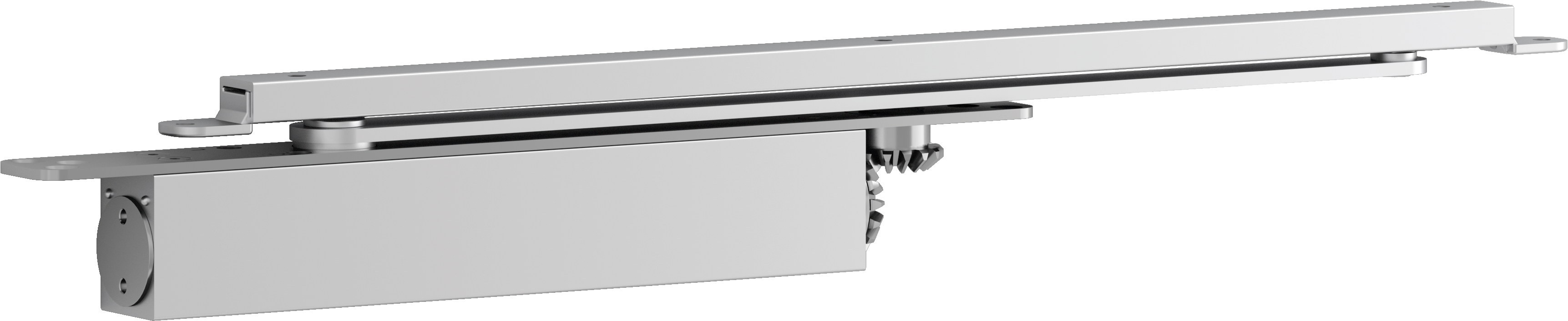

DC850 Concealed Cam Motion EN2-4 door closer with G896 guide rail

DC850 Concealed Cam Motion EN 2-4 door closer with G896 guide rail.

Concealed into the door leaf, the DC850 delivers high performance to support all building users without diluting the impact of your entrances design.

1 of 3

Name	Value
SKU	DC850A
Brand	ASSA (AA)
Style	ASSA ABLOY Branded
Finish	Silver
Warranty	No
Anti Slam	No
Mechanism	Cam Action
Backcheck	No
Fire Rated	Yes
Free Swing	No
Finish Type	Silver
Arm Supplied	Guide Rail
Package Type	Boxed
Double Action	No
Single Action	Yes
Delayed Action	No
Latching Speed	Yes
Max Door Width (mm)	1100mm
Mounting Method	Concealed
Cover Trim Plate	Trim
Force Adjustment	Yes
Hold Open - Manual	No
Max Closing Force	EN4
Min Closing Force	EN2
Door Leaf Material	Timber & Metal
Fire Door Approval	Yes
Hold Open Function	No
Min Door Thickness (mm)	34
Hold Open - Electromechanical	No
Height Adjustable Arm System	N/A
Max Opening Angle Hinge Side	N/A
Max Opening Angle Non Hinge Side	120°
EAN code	6438352099788
Standards	BS 8300, CE, EN 1154, UKCA
Range Name	Assa Abloy - Mechanical
Fire Rated Metal	FD180
Fire Rated Timber	FD30, FD60
Function	Single Action
