ES2100 series electric strikes

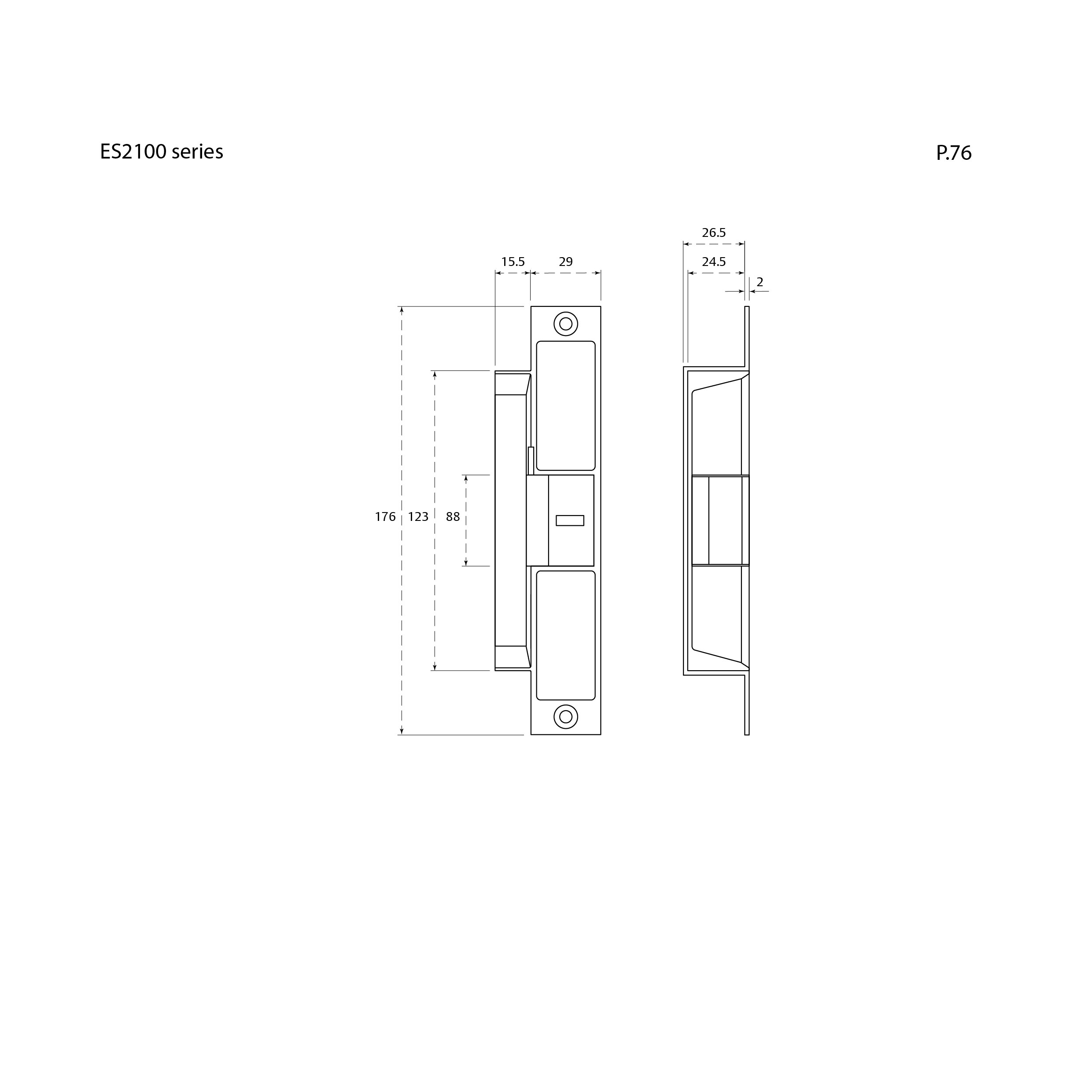

The ES2100 series is a fully monitored electric strike for high traffic areas that require additional door position monitoring. Features superior strength with a static holding force of 1,000kg and durability tested to 1,500,000 cycles. Patented way of setting up to fail safe or fail secure on site, for flexibility. Features full door monitoring via door position switch, latch and solenoid positions.


When used with timber fire doors,  interden fire pack is required:

FD30 Timber fire door 1mm interden pack available - Part number: ES2100-IK-FD30-KIT.

FD60 Timber fire door 2mm interden pack available - Part number: ES2100-IK-FD60 KIT.

FD240 Steel no pack required.

Similar products

  • Trimec ES2600 series monitored electric strike (12v, fail safe)

    The ES2600 Series surface mounted electric strikes are high security products manufactured from stainless steel and designed to be used with existing and new panic bars fitted to emergency doors. When used in conjunction with a standard access control system, these strikes convert “Exit only” doors with “Pullman type” latches into a full access controlled door, thereby allowing authorised access from the secure side. The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions and can be changed from fail safe to fail secure on site.
