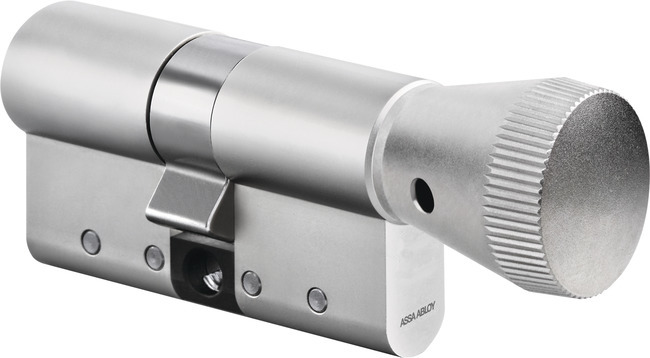

N534 eCLIQ

Profile-double cylinder eCLIQ. Electronic one side, thumb turn one side.

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC)

Standard thumb turn - Small tapered knob with 28mm diameter in satin nickel plated

Other thumbturn styles and finishes available

Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments)

Optional, differing basic cylinder length of 56 mm - A/B (Length:28/28)

360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel

Standard locking cam position 30°; differing locking positions available

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

 IP55 Dust and rain protection cap available for one or both sides (-WP)

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

Optionally available with class room function: With this function the knob is disengaged as the key is entering the cylinder on the other side
