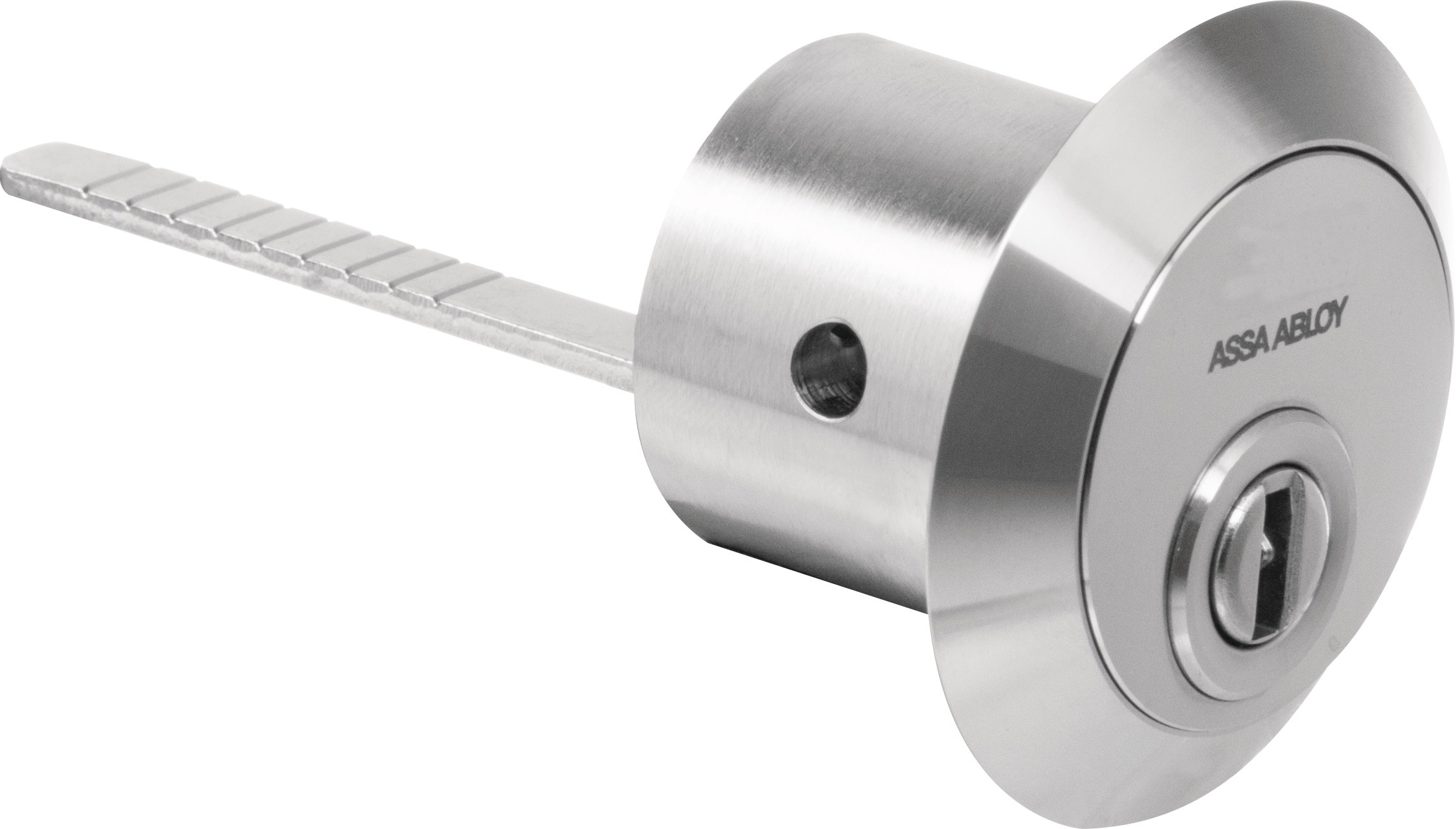

N063 eCLIQ

External RIM cylinder eCLIQ. Electronic, optionally available as mechanical (rotary-secured)

Screwed onto lock cover from within using M6 screws

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC)

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available (-WP)

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)
