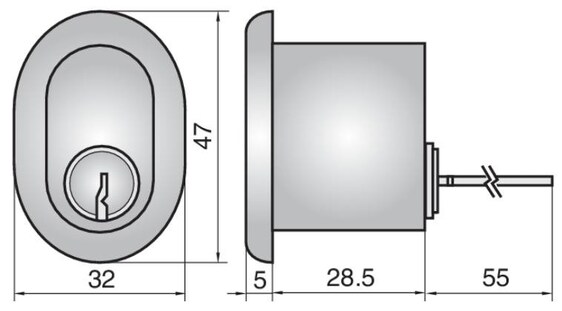

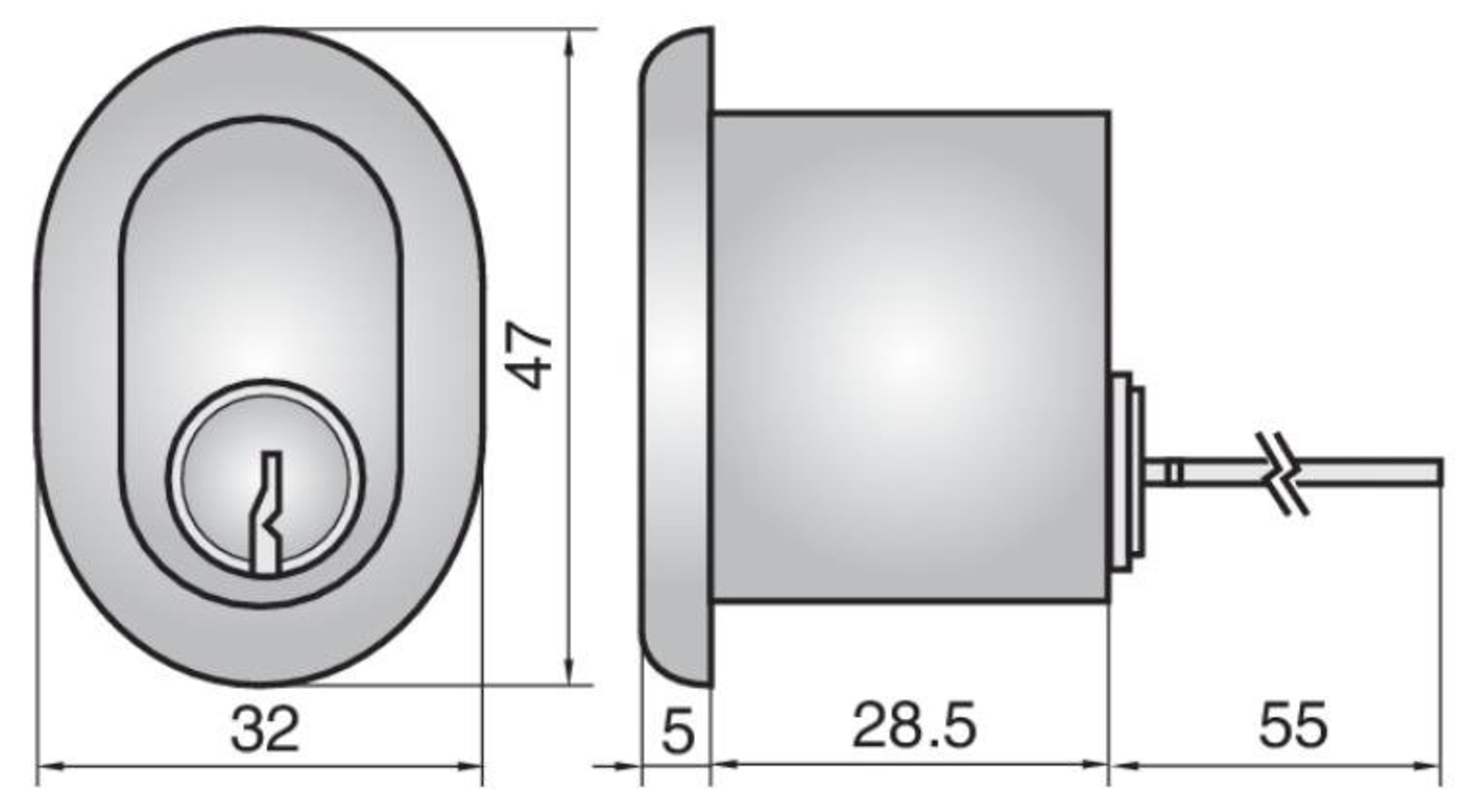

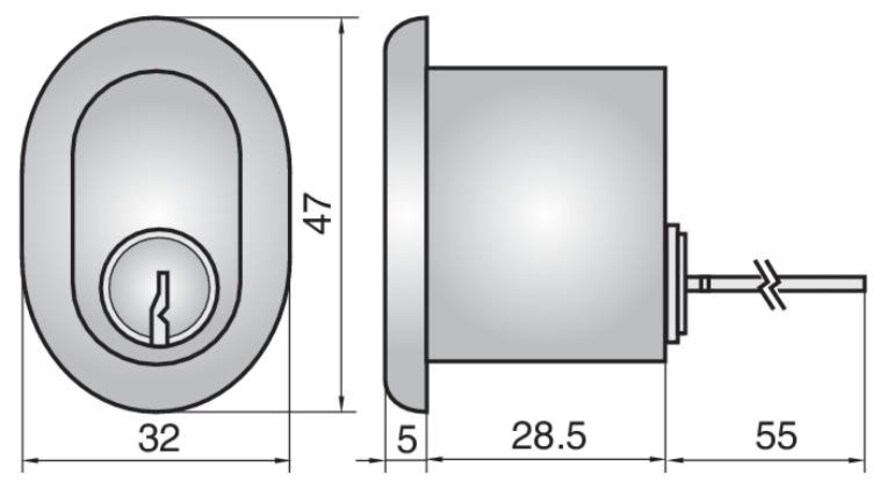

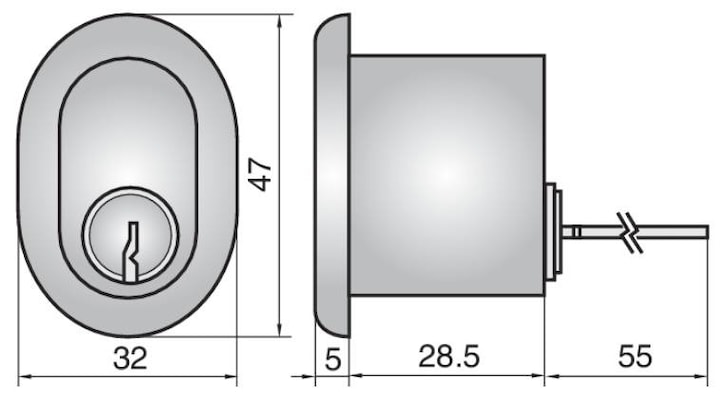

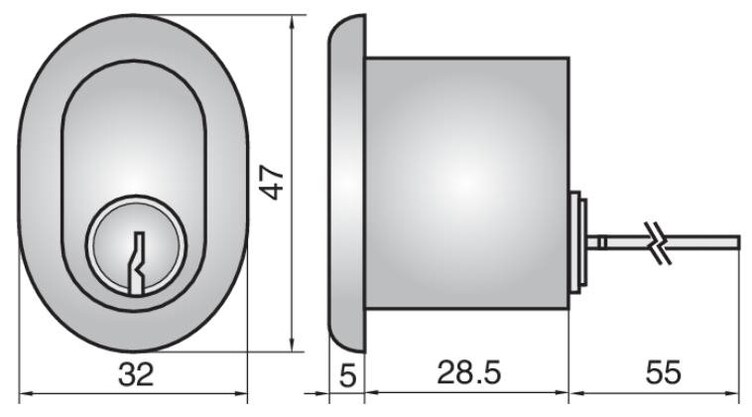

2407 - Single rim cylinder (outside)

Order information

Article number: 820008*

*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.

Only a full article number is valid ex. XXXXXX-YYY-ZZZ.

Application

For use with ASSA Modular, Rim, Connect and Narrow Profile lockcases.

Specification

The cylinder is fixed to the lockcase with two brass screws which can be cut to length.

Supplied with rim cylinder sleeve.

Sleeve is not required when used with Connect 35mm backset lockcases and Narrow Profile accessories. When using S4 narrow profile double accessories (only) specify two 4407 single outside cylinders rather than a double cylinder.

Surface treatment

  • Satin Chrome (213)
  • Polish Chrome (211)
  • Polish Brass (220)
  • Satin Brass (221)
  • Brown oxid (044)

Warranty

ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
