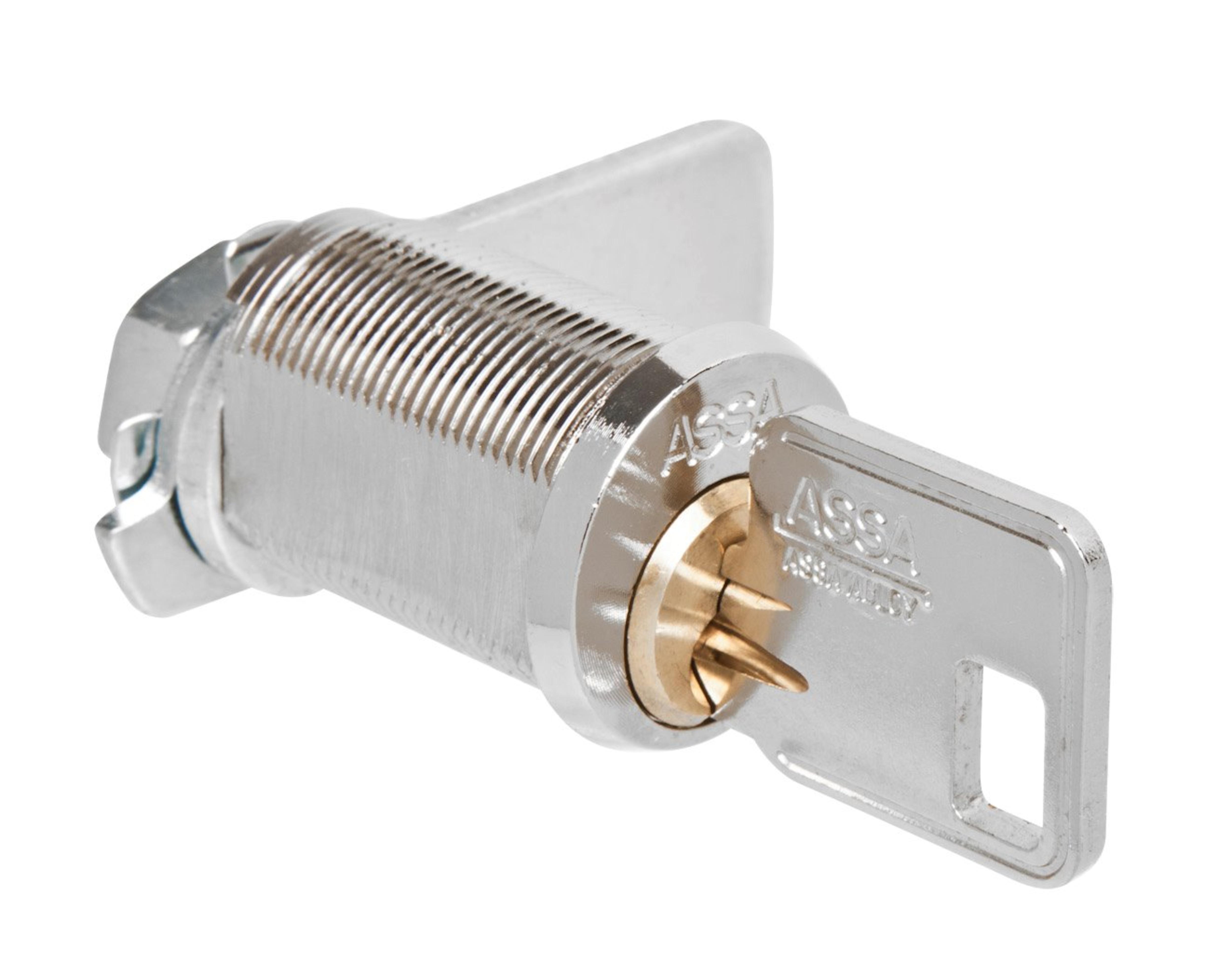

Camlock 13450

Application

5-Pin Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation. Key entry in locked and unlocked position.

Features

  • To be used on doors with doorthickness up to 22mm.
  • Possibility for masterkey systems.

Function

  • The key is rotated 360° and can be removed when the catch is in locked and unlocked position. The catch rotates 90° when the key is rotated 360°.
  • Right handed as standard and left handed by turning the catch.
  • 40mm catch included.

Material

Cylinder and keys made of nickel plated brass.

  • Camlock 8450

    5-Pin Camlock to be used on doors with thickness up to 16mm with 18/22 hole preparation. Key entry in locked position.

  • Camlock 8460

    6-Pin Camlock to be used on doors with thickness up to 20mm with 18/22 hole preparation. Key entry in locked position.

  • Camlock 10450

    5-Pin Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation. Key entry in locked position.

  • Camlock 10460

    6-Pin Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation. Key entry in locked position.

  • Camlock 11450

    5-Pin Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation. Key entry in locked and unlocked position.

  • Camlock 17450

    5-Pin Camlock to be used on doors with thickness up to 16mm with 18/22 hole preparation. Key entry in locked and unlocked position.

  • Camlock 2450

    5-Pin Camlock to be used on doors with thickness up to 16mm with 18/22 hole preparation. Key rotates 360° and can only be entered in locked position.

  • Camlock 23450 Micro

    5-Pin Microswitch Camlock to be used on doors with thickness up to 15mm with 18/22 hole preparation.
