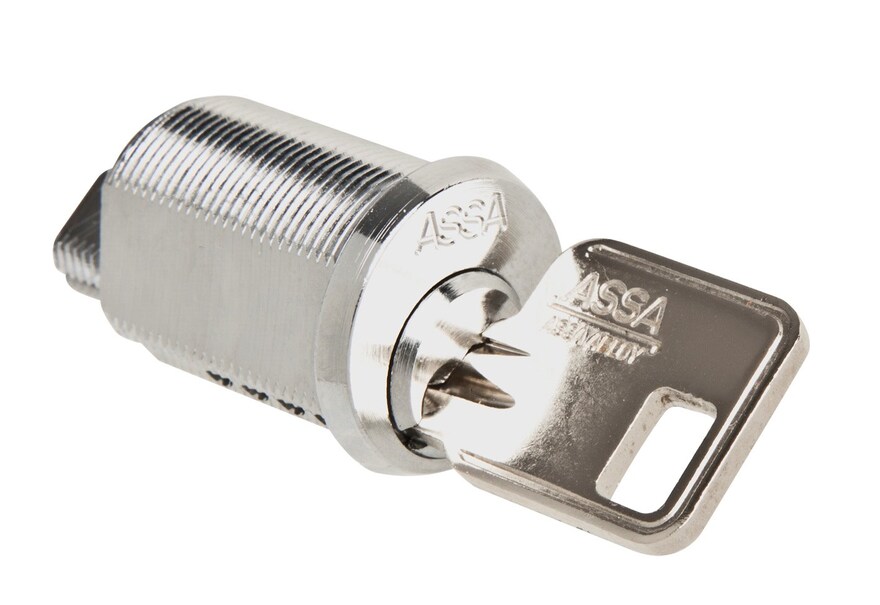

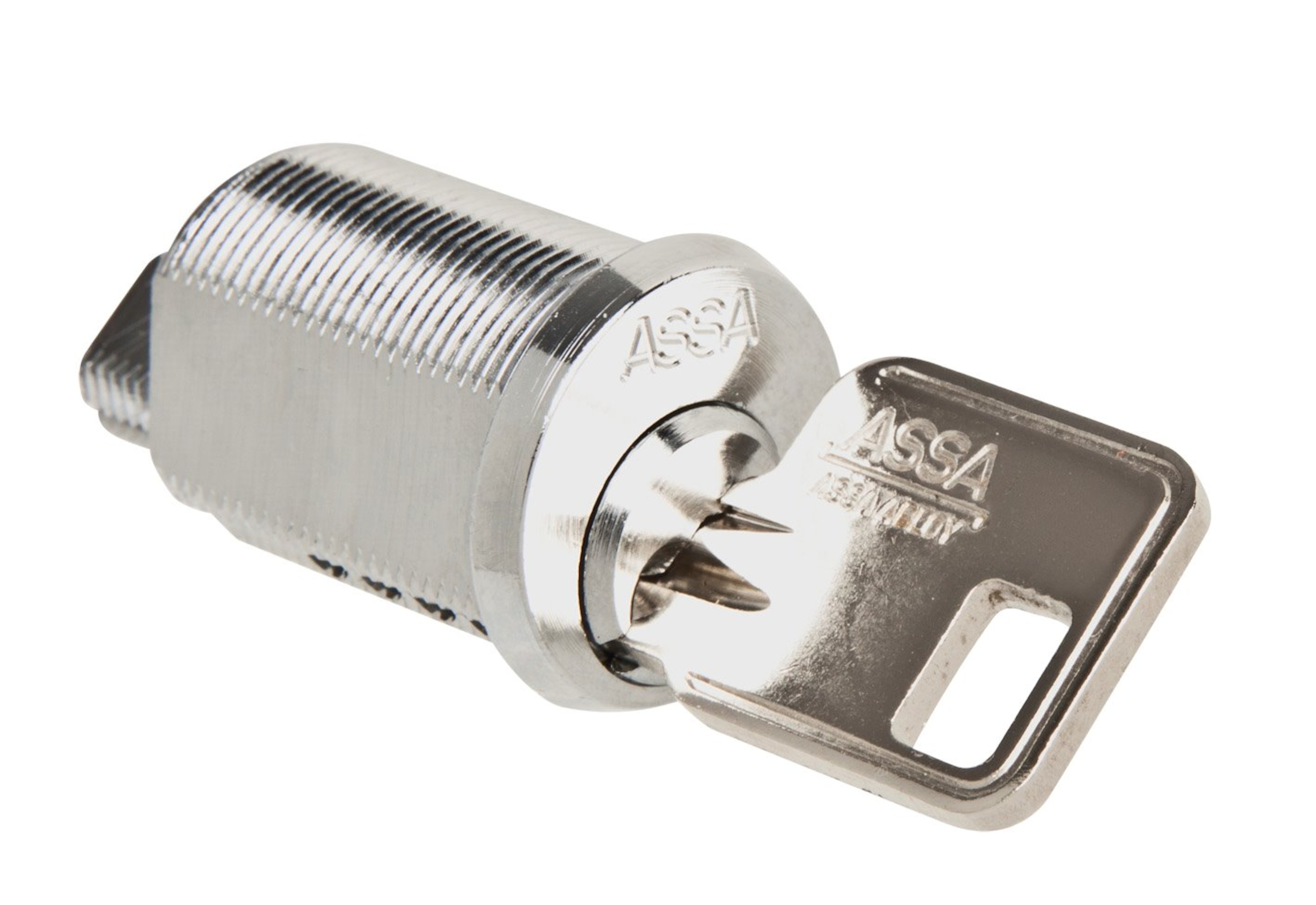

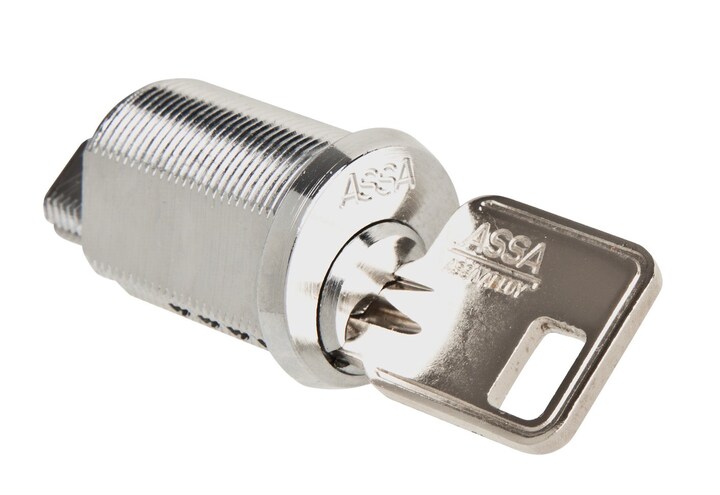

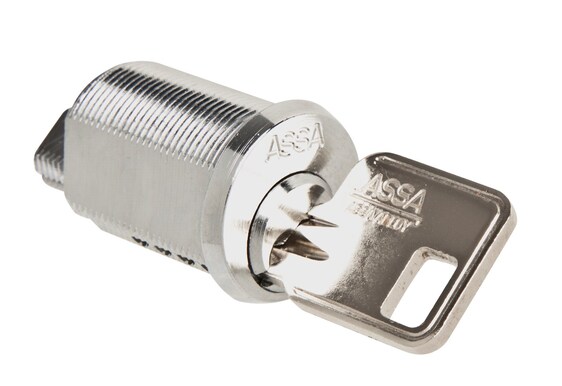

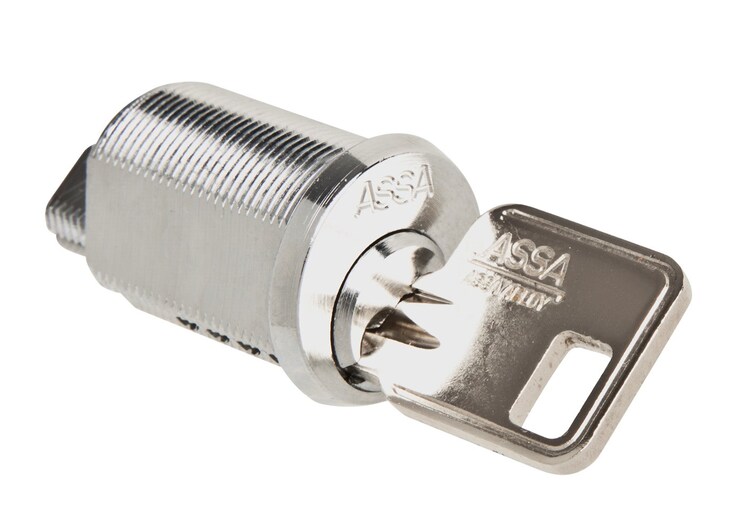

Camlock 11450

Application

5-Pin Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation. Key entry in locked and unlocked position.

Features

• To be used on doors with doorthickness up to 22mm.
• No possibility for masterkey systems.

Function

• The key is rotated 90° (-45° to +45°) and can be removed when the catch is in locked and unlocked position.
• Catches with 45° rotated hole preparation is suggested.

Material

Cylinder and keys made of nickel plated brass.
