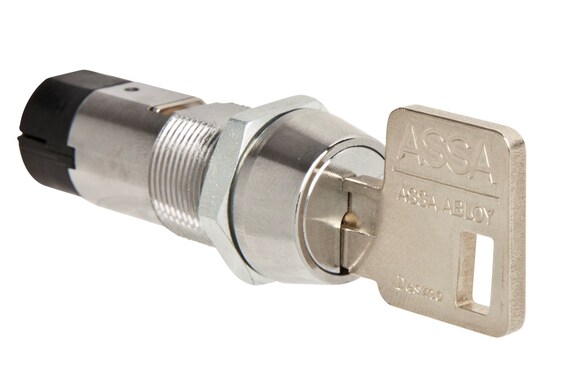

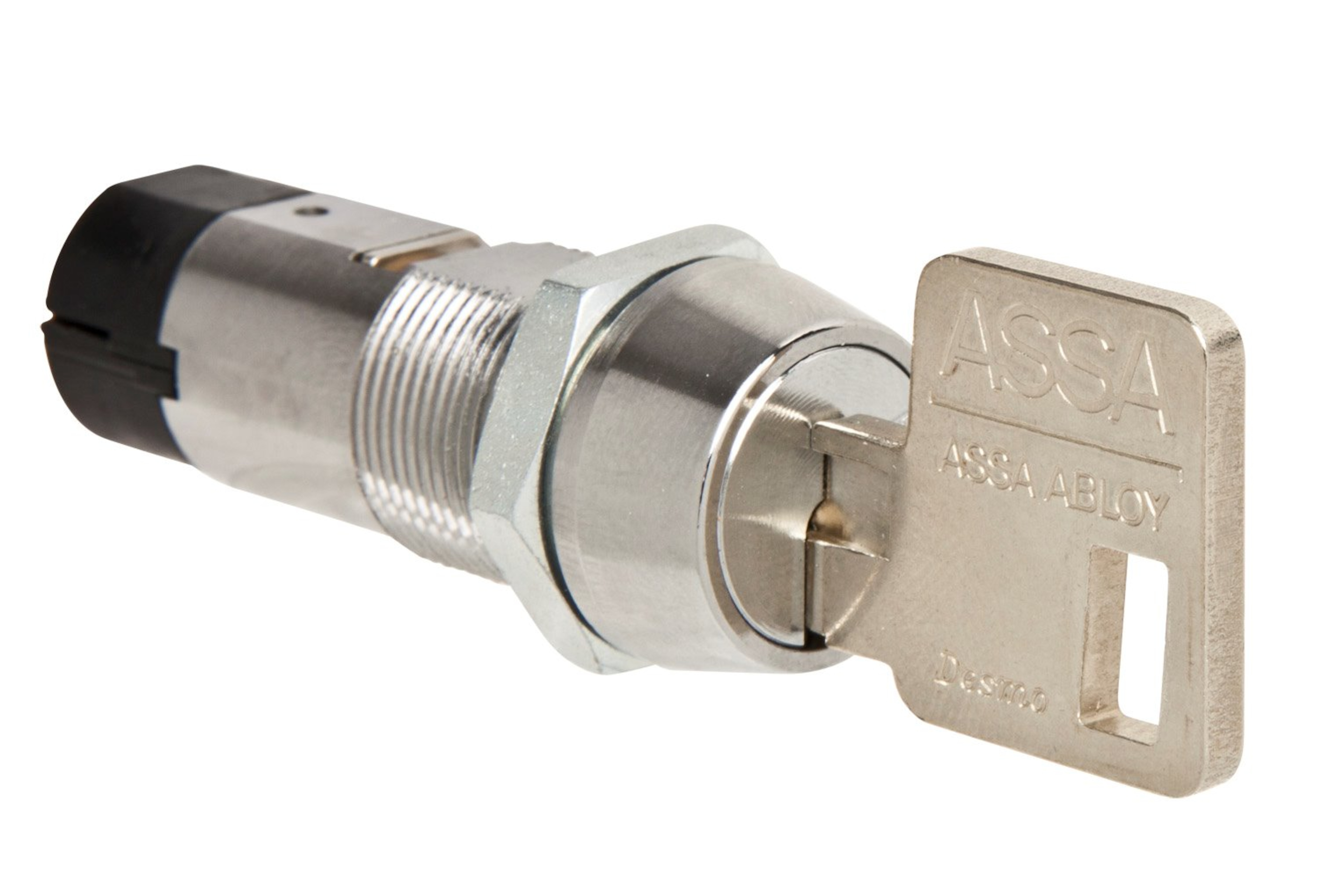

Camlock AD8925

Application

ASSA ABLOY Desmo 8925 switch lock provide key-actuated switching for burglar alarms, control boxes and other high security applications.

Features

  • Microswitch: Honeywell 1SX1-H58 for contacting with AMP 0.058 inch (1.47 mm) reseptables.
  • Electrical specifications: 7A, 250 VAC; 7A res., 28 VDC; 4A ind., 28 VDC.

Function

Key removable in "off" position.

Material

Cylinder made of chrome plated brass and keys made of nickel silver.

  • Camlock Desmo+ 8920

    ASSA ABLOY Desmo+ Camlock to be used on doors with thickness up to 16mm with 16/19 hole preparation.

  • Camlock Desmo+ 8950

    Desmo+ Camlock to be used on doors with thickness up to 16mm with 18/22 hole preparation.

  • Camlock Desmo+ 10950

    Desmo+ Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation.

  • Camlock Desmo+ 391333

    Desmo+ Camlock to be used on doors with oval hole preparation.

  • Camlock Desmo 21950

    Camlock Desmo to be used with lockcase 1596.

  • Camlock AD390

    Desmo+ Camlock 5/8" to be used on doors with thickness up to 9mm with 16/19 hole preparation.

  • Camlock AD391

    Desmo+ Camlock 5/8" to be used on doors with thickness up to 7mm with 16/19 hole preparation.

  • Camlock AD392

    Desmo+ Camlock 3/4" to be used on doors with thickness up to 10mm with 16/19 hole preparation.

  • Camlock AD393

    Desmo+ Camlock 7/8" to be used on doors with thickness up to 13mm with 16/19 hole preparation.

  • Camlock AD394

    Desmo+ Camlock 1-1/8" to be used on doors with thickness up to 19mm with 16/19 hole preparation.

  • Camlock RCX

    RCX is a range of Desmo camlocks with removable core. The removable core makes it possible to change the core with the ease of a key operation. In literally seconds the core can be removed or installed in the housing with the use of the management key. This helps making pre-installations of the locks simple and safe and in the case of a lost user key, changing the lock into another keycode is fast and easy.
