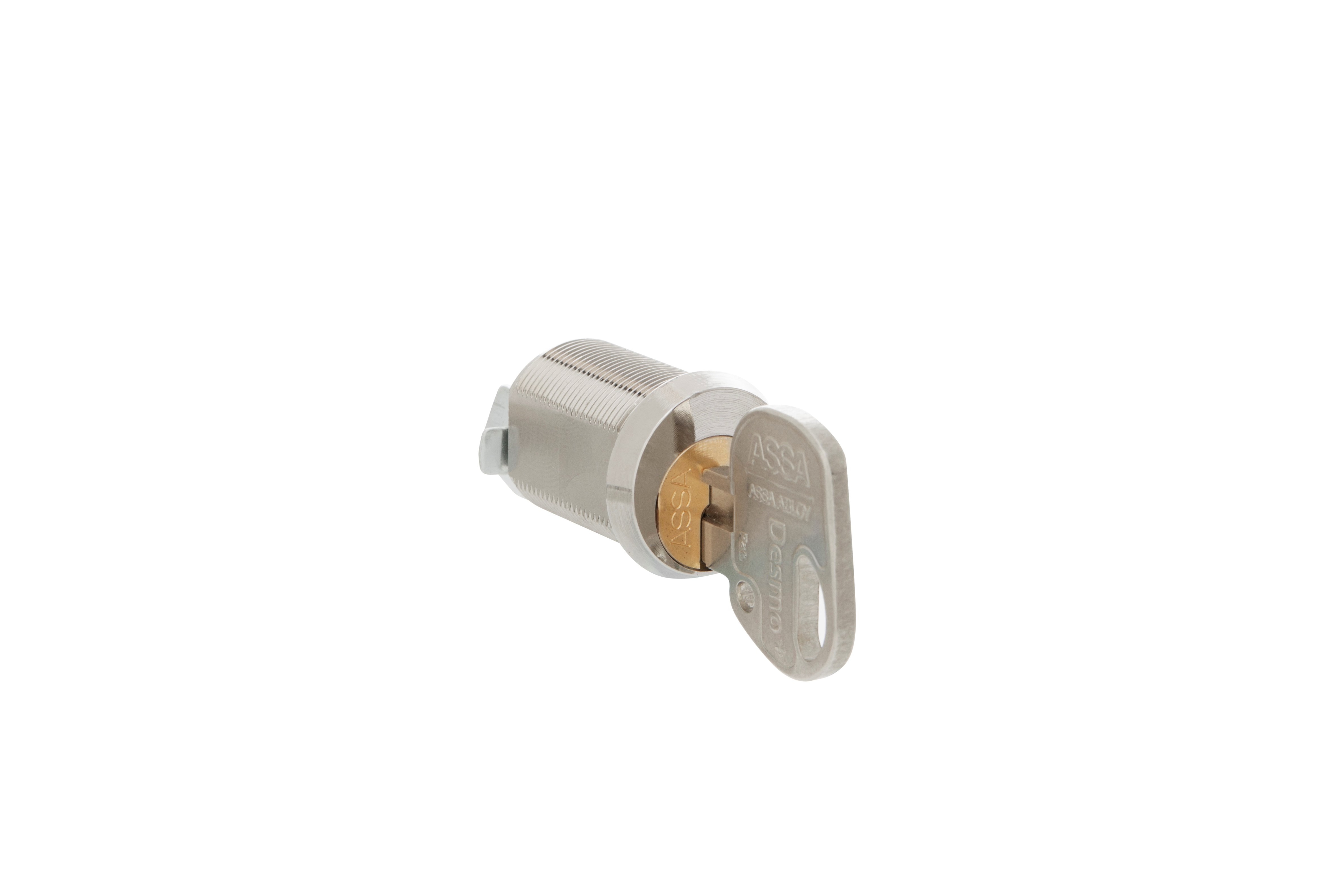

Camlock Desmo+ 10950

Application

Desmo+ Camlock to be used on doors with thickness up to 22mm with 18/22 hole preparation.

Features

• The design is based on direct driven pins without springs, which creates a virtually friction free movement and high durability.
• To be used on doors with doorthickness up to 22mm.
• Possibility for large masterkey systems.

Function

• The key is rotated 90° and can only be removed when the catch is in locked position. Addition of drill hardening pins available on request.
• Right handed as standard and left handed on request.
• Note! The hole preparation for the cam is NOT rotated 90° as the other Desmo cam locks.

Material

Cylinder made of nickel plated brass and keys made of nickel silver.
